MSKSEMIDatasheet (PDF)

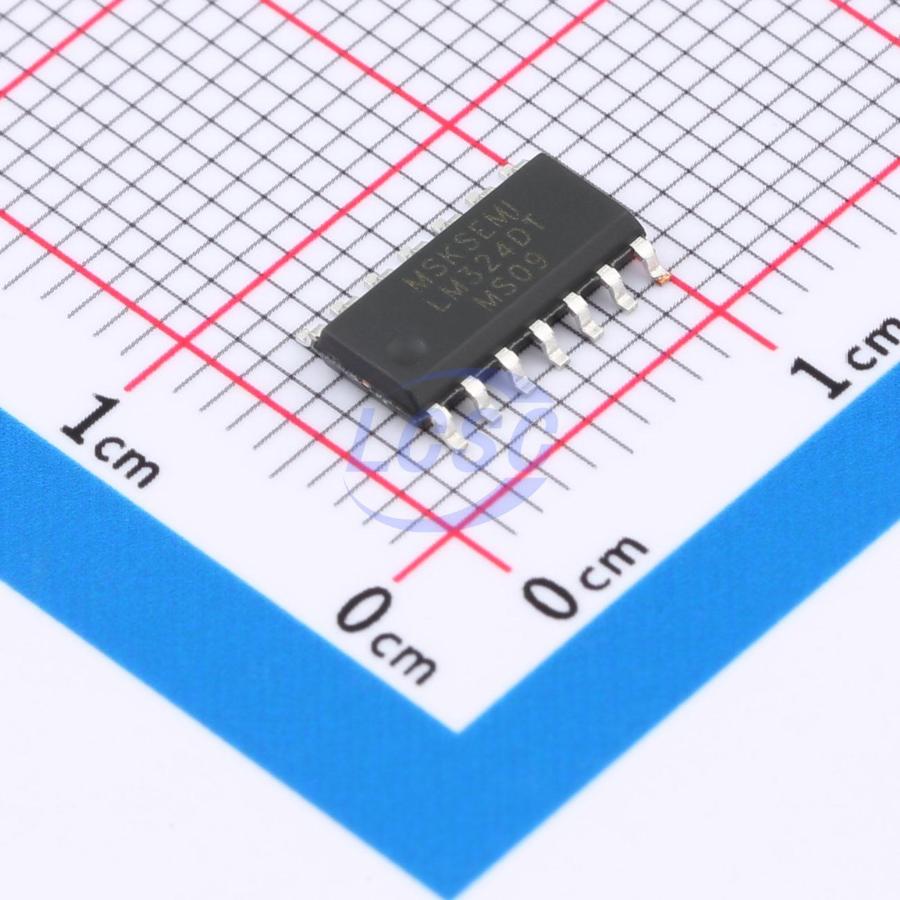

MSLM324DT
40mA 4 2mV 70dB 20nA 700uA SOP-14 Instrumentation, Op Amps, Buffer Amps
SOP-14RoHSActive
- Manufacturer
- MSKSEMI
- Manufacturer part #
- MSLM324DT
- Store part #
- C49208519
- Package / case
- SOP-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,100 in stock
#C49208519
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹10.05 | ₹100.50 |
| 100+ | ₹7.96 | ₹796.00 |
| 300+ | ₹6.92 | ₹2,076.00 |
| 1,000+ | ₹6.14 | ₹6,140.00 |
| 4,000+ | ₹5.52 | ₹22,080.00 |
| 8,000+ | ₹5.20 | ₹41,600.00 |
10 × ₹10.05
₹100.50
excl. GST
₹118.59 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
MSLM324DT
₹100.50 for 10 + GST
Specifications
- Output Current
- 40mA
- Number of Channels
- 4
- Vos - Input Offset Voltage
- 2mV
- Input Offset Current(Ios)
- 5nA
- Operating Temperature
- -40℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 70dB
- Ib - Input Bias Current
- 20nA
- Input Offset Voltage Drift(Vos TC)
- 7uV/℃
- Quiescent Current
- 700uA
- Dual Supply
- -18V~-1.5V;1.5V~18V
- Single Supply
- 3V~36V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.454 g
Overview
The MSLM324DT consists of four independent, high-gain, internally frequency-compensated op-amps. They are designed for single-supply operation, but can also be used with dual supplies, with low supply current consumption independent of supply voltage magnitude. Typical applications include sensor amplifiers, DC gain modules, and most conventional op-amp circuits. The MSLM324DT is available in a SOP-14 package.
Applications
- Battery chargers
- Cordless telephones
- Switching power supplies
- DC summing amplifiers
- Power amplifiers
- Fixed current sources
- AC-coupled non-inverting amplifiers
- Pulse generators
- DC-coupled low-pass RC active filters
Key features
- Internal frequency compensation for unity-gain stability
- High voltage gain: 100dB typical
- Low input bias current: 20nA typical
- Low input offset voltage: 2mV typical
- Low supply current: 0.5mA typical
- Wide supply voltage range:
- Single supply: 3V ~ 36V
- Dual supply: ±1.5V ~ ±18V
- Input common-mode voltage range includes ground
- Large output voltage swing: 0V ~ VCC - 1.5V
- Low power consumption, suitable for battery-powered applications
- Lead-free package: SOP-14
