MSKSEMIDatasheet (PDF)

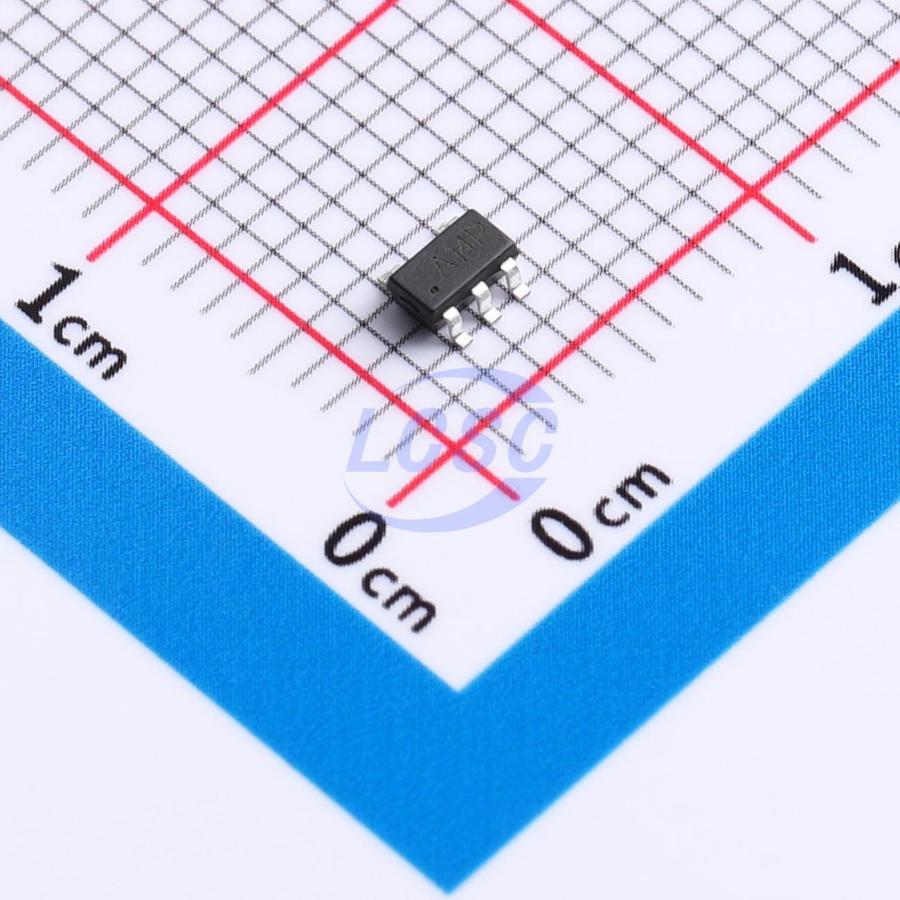

MSME3103AM5G
1MHz~2MHz Step-down type Adjustable 600mV~5.5V 1A SOT-23-5 Voltage Regulators - DC DC Switching Regulators
SOT-23-5RoHSActive
- Manufacturer
- MSKSEMI
- Manufacturer part #
- MSME3103AM5G
- Store part #
- C49375211
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,485 in stock
#C49375211
Stock & price checked 46 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.28 | ₹61.40 |
| 50+ | ₹9.68 | ₹484.00 |
| 150+ | ₹8.39 | ₹1,258.50 |
| 500+ | ₹7.41 | ₹3,705.00 |
| 3,000+ | ₹6.63 | ₹19,890.00 |
| 6,000+ | ₹6.24 | ₹37,440.00 |
5 × ₹12.28
₹61.40
excl. GST
₹72.45 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MSME3103AM5G
₹61.40 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Frequency - Switching
- 1MHz~2MHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Overcurrent Protection;Output discharge;Light load efficient mode
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 2.2V~5.5V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 600mV~5.5V
- Output Current
- 1A
- Quiescent Current
- 30uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1 g
Overview
Compact 5V step-down converter delivering 1A output current. Features a proprietary control loop for fast transient load response, maintaining high conversion efficiency under both light and heavy loads. Equipped with multiple protection features including input overvoltage protection, output short-circuit protection, overcurrent protection, and overtemperature protection. Internally integrates a power tree generator, bandgap voltage reference, UVLO, error amplifier, protection circuitry, gate driver, current sensing, and two power MOSFETs. Available in SOT23-5 package.
Applications
- Set-top boxes
- Solid-state drives
- WiFi and networking equipment
- Security surveillance systems
- Toys
Key features
- Input operating range: 2.2–5.5V
- Input overvoltage protection threshold: 6V
- Quiescent operating current: 30µA
- Output current up to 1A
- Efficiency up to 95%
- OCP, SCP, and OTP
- SOT23-5 package
