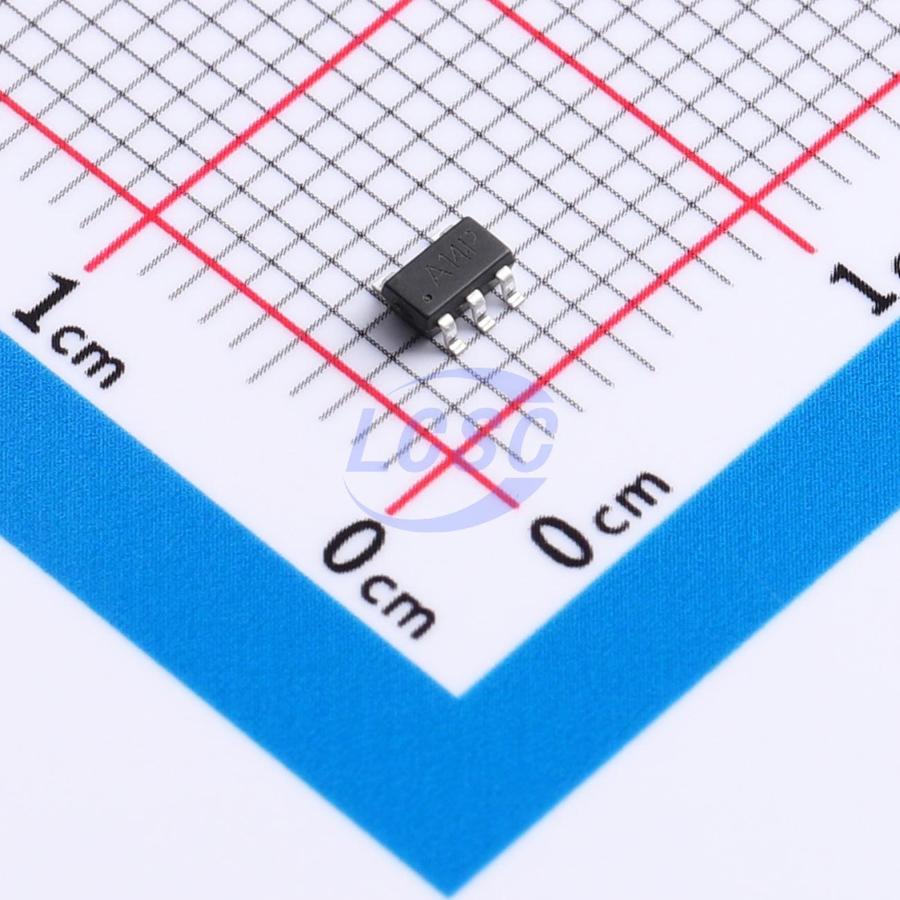

MSZD8028IB5TR
1MHz~2MHz Step-down type Adjustable 600mV~5.5V 1A SOT-23-5 Voltage Regulators - DC DC Switching Regulators
SOT-23-5RoHSActive
- Manufacturer
- MSKSEMI
- Manufacturer part #
- MSZD8028IB5TR
- Store part #
- C49375213
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,700 in stock
#C49375213
Stock & price checked 47 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.49 | ₹54.90 |
| 100+ | ₹4.34 | ₹434.00 |
| 300+ | ₹3.76 | ₹1,128.00 |
| 3,000+ | ₹3.33 | ₹9,990.00 |
| 6,000+ | ₹2.99 | ₹17,940.00 |
| 9,000+ | ₹2.82 | ₹25,380.00 |
10 × ₹5.49
₹54.90
excl. GST
₹64.78 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MSZD8028IB5TR
₹54.90 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Frequency - Switching
- 1MHz~2MHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Overcurrent Protection;Output discharge;Light load efficient mode
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 2.2V~5.5V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 600mV~5.5V
- Output Current
- 1A
- Quiescent Current
- 30uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 1 g
Overview
MSZD8028IB5TR is a compact 5V step-down converter capable of delivering 1A output current. The device employs a proprietary control loop to achieve fast transient load response, maintaining high conversion efficiency under both light-load and heavy-load conditions. It features comprehensive protection functions, including input overvoltage protection, output short-circuit protection, overcurrent protection, and overtemperature protection. Internally integrated are a power switch, bandgap voltage reference module, undervoltage lockout module, error amplifier, protection circuitry, gate driver module, current sensing module, and two power MOSFETs. The device is available in a SOT23-5 package.
Applications
- Set-top boxes
- Solid-state drives
- WiFi and networking equipment
- Security surveillance systems
- Toys
- Televisions
Key features
- Input operating range: 2.2V ~ 5.5V
- Input overvoltage protection threshold: 6V
- Quiescent current: 30uA
- Output current up to 1A
- Efficiency up to 95%
- OCP, short-circuit protection, and OTP
- SOT23-5 package
