MSKSEMIDatasheet (PDF)

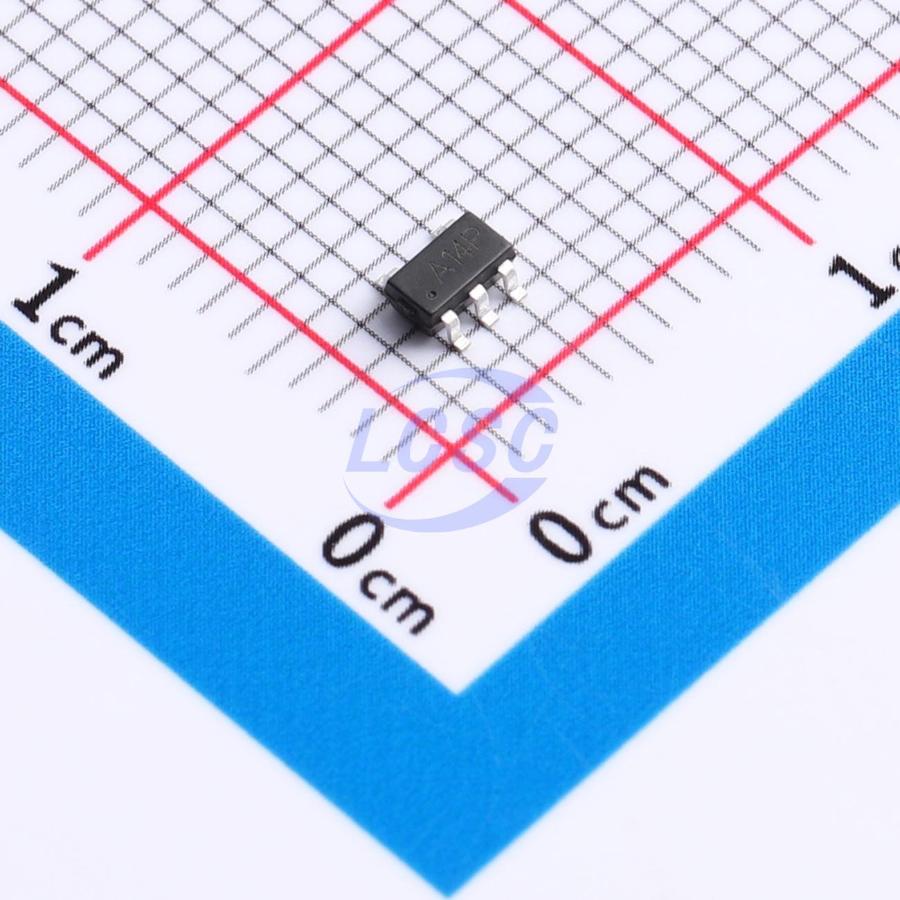

MSY8088A
1MHz~2MHz Step-down type Adjustable 600mV~5.5V 1A SOT-23-5 Voltage Regulators - DC DC Switching Regulators
SOT-23-5RoHSActive
- Manufacturer
- MSKSEMI
- Manufacturer part #
- MSY8088A
- Store part #
- C49375208
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,910 in stock
#C49375208
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.03 | ₹55.15 |
| 50+ | ₹8.73 | ₹436.50 |
| 150+ | ₹7.58 | ₹1,137.00 |
| 500+ | ₹6.72 | ₹3,360.00 |
| 3,000+ | ₹5.79 | ₹17,370.00 |
| 6,000+ | ₹5.45 | ₹32,700.00 |
5 × ₹11.03
₹55.15
excl. GST
₹65.08 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MSY8088A
₹55.15 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TJ)
- Frequency - Switching
- 1MHz~2MHz
- Number of Outputs
- 1
- Function
- Step-down type
- Features
- Overcurrent Protection;Output discharge;Light load efficient mode
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 2.2V~5.5V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 600mV~5.5V
- Output Current
- 1A
- Quiescent Current
- 30uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1 g
Overview
MSY8088A is a compact 5V step-down converter capable of delivering 1A output current. It employs a proprietary control loop to achieve fast transient load response while maintaining high conversion efficiency under both light-load and heavy-load conditions. The device integrates multiple protection features, including input overvoltage protection, output short-circuit protection, overcurrent protection, and overtemperature protection. Its internal architecture comprises an internal power tree generator, bandgap voltage reference module, undervoltage lockout module, error amplifier, protection circuit, driver module, current sensing module, and two power MOSFETs. The device is available in a SOT23-5 package.
Applications
- Set-top boxes
- Solid-state drives
- Wireless networking & network equipment
- Security surveillance systems
- Toys
- Televisions
Key features
- Input operating voltage range: 2.2V ~ 5.5V
- Input overvoltage protection threshold: 6V
- Quiescent current: 30uA
- Output current up to: 1A
- Efficiency up to: 95%
- Built-in overcurrent protection, short-circuit protection, and over-temperature protection
- SOT23-5 package
