MSKSEMIDatasheet (PDF)

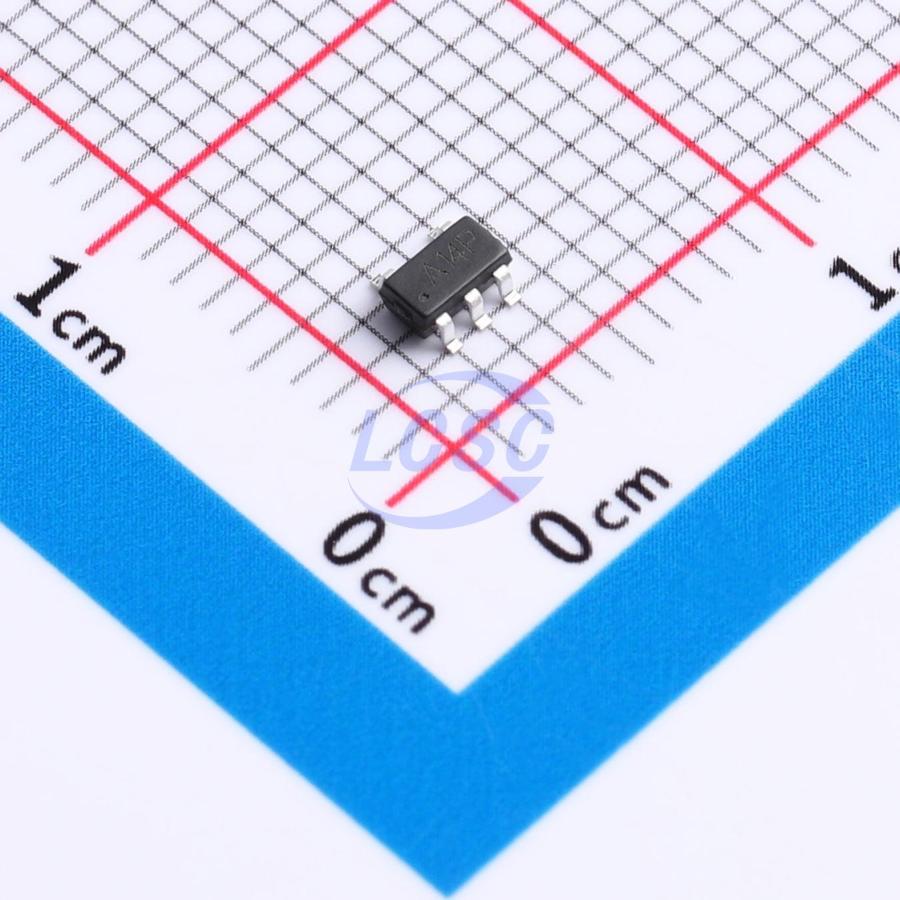

MSTD6810
1MHz~2MHz Step-down type Adjustable 600mV~5.5V 1A SOT-23-5 Voltage Regulators - DC DC Switching Regulators
SOT-23-5RoHSActive
- Manufacturer
- MSKSEMI
- Manufacturer part #
- MSTD6810
- Store part #
- C49375210
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,880 in stock
#C49375210
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.35 | ₹66.75 |
| 50+ | ₹10.44 | ₹522.00 |
| 150+ | ₹8.97 | ₹1,345.50 |
| 500+ | ₹7.89 | ₹3,945.00 |
| 3,000+ | ₹7.30 | ₹21,900.00 |
| 6,000+ | ₹6.87 | ₹41,220.00 |
5 × ₹13.35
₹66.75
excl. GST
₹78.77 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MSTD6810
₹66.75 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Frequency - Switching
- 1MHz~2MHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Overcurrent Protection;Output discharge;Light load efficient mode
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 2.2V~5.5V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 600mV~5.5V
- Output Current
- 1A
- Quiescent Current
- 30uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1 g
Overview
MSTD6810 is a compact 5V step-down converter capable of delivering 1A output current. It employs a proprietary control loop to achieve fast transient load response, maintaining high conversion efficiency under both light and heavy load conditions. The device features comprehensive protection functions, including input overvoltage protection, output short-circuit protection, overcurrent protection, and overtemperature protection. Internally, it integrates a power tree generator, bandgap voltage reference module, undervoltage lockout module, error amplifier, protection circuitry, gate driver module, current sensing module, and two power MOSFETs. The MSTD6810 is available in a SOT23-5 package.
Applications
- Set-top boxes
- Solid-state drives
- Wireless networking devices
- Security surveillance systems
- Toys
- Televisions
- Other electronic devices
Key features
- Input operating range: 2.2V ~ 5.5V
- Input overvoltage protection threshold: 6V
- Quiescent current: 30uA
- Output current up to 1A
- Efficiency up to 95%
- OCP, short-circuit protection, and OTP
- SOT23-5 package
