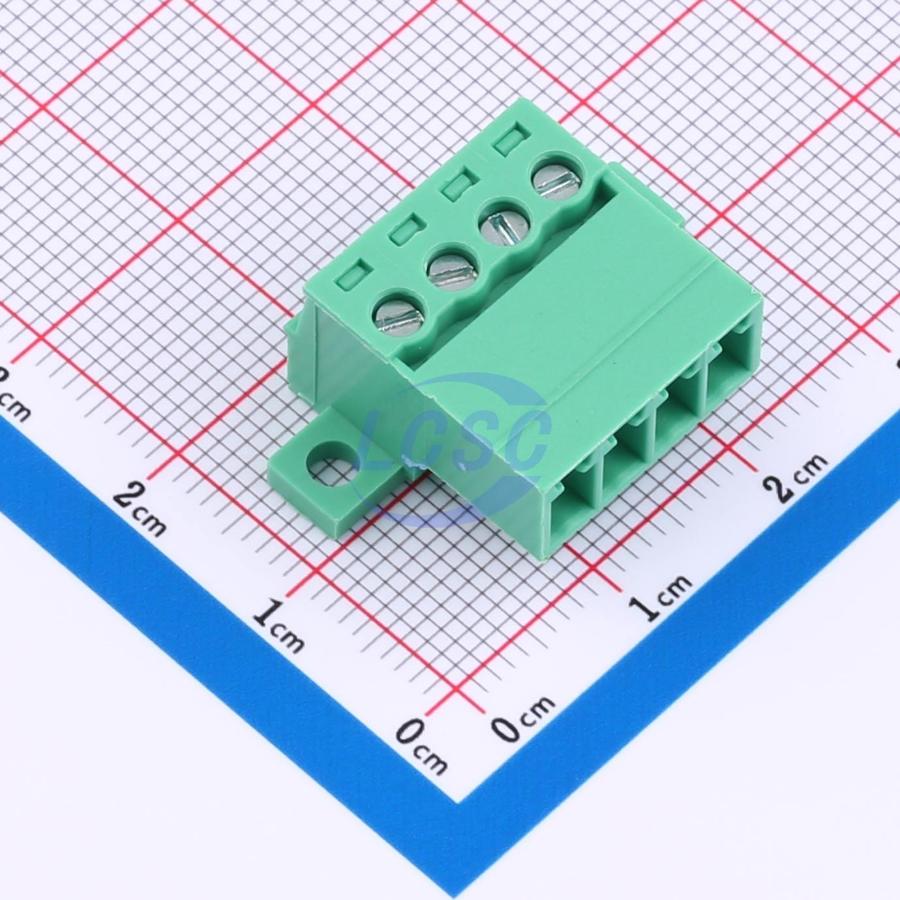

MX15EDGRKF-3.81-04P-GN01-Cu-Y-A MAX
MAX

MX15EDGRKF-3.81-04P-GN01-Cu-Y-A

4 Position Male Plug 3.81mm Pitch

P=3.81mmROHS CompliantActive

TERM BLOCK PLUG 4POS 3.81mm

Manufacturer
MAX
Manufacturer part #
MX15EDGRKF-3.81-04P-GN01-Cu-Y-A
Store part #
C48688081
Package / case
P=3.81mm
Category
Headers, Plugs and Sockets
Packaging
Bag-packed
Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

185 in stock

#C48688081

Stock & price checked 6 days ago

QuantityUnit pricePack price
1+₹71.71₹71.71
10+₹56.64₹566.40
30+₹50.18₹1,505.40
200+₹41.99₹8,398.00
400+₹38.34₹15,336.00
1,000+₹36.18₹36,180.00

1 × ₹71.71

₹71.71

excl. GST

₹84.62 incl. 18% GST

Need volume or a scheduled delivery? Request a quote
  • Dispatch in 15-18 working days
  • GST invoice with every order
  • Standard pack: 200 per bag

MX15EDGRKF-3.81-04P-GN01-Cu-Y-A

₹71.71 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Wire Gauge - mm2
0.2~1.5
Wire Gauge - AWG
16~28
Number of Positions or Pins
1x4P
Number of Pins
4P
Operating Temperature
-40℃~+105℃
Number of PINs Per Row
4
Number of Rows
1
Current Rating
8A
Outlet Direction (Vertical Basis)
Horizontal Termination
Connection Type
Screw Connection (M2)
Voltage Rating
300V
Pitch
3.81mm
Connector Type
Female Plug
Color
Green
Mounting Type
Free-hanging
Termination Style
Screw

Packaging & compliance

RoHS
ROHS Compliant
Lifecycle
Active
Packaging
Bag-packed
Standard pack
200 / Bag
Sold per
Piece
Minimum order
1
Unit weight
3.442 g

Alternatives

Similar parts — check the datasheet before substituting.

MX15EDGRKP-3.81-04P-GN01-Cu-Y-A#C48688089MAX · P=3.81mm₹83.83 · 156 in stockView
