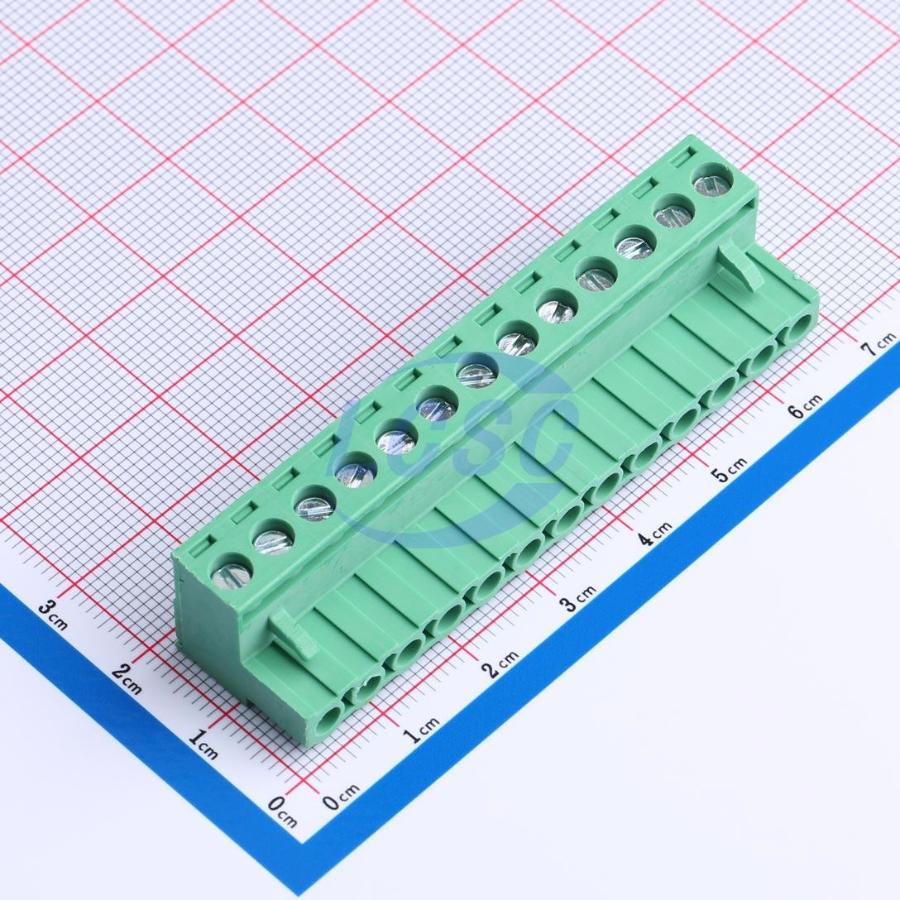

MX2EDGK-5.08-13P-GN01-Cu-Y-A MAX
MAX

MX2EDGK-5.08-13P-GN01-Cu-Y-A

13 Position 5.08mm Pitch

P=5.08mmROHS CompliantActive

13POS 5.08mm

Manufacturer
MAX
Manufacturer part #
MX2EDGK-5.08-13P-GN01-Cu-Y-A
Store part #
C5187923
Package / case
P=5.08mm
Category
Headers, Plugs and Sockets
Packaging
Bag-packed
Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

49 in stock

#C5187923

Stock & price checked 7 days ago

QuantityUnit pricePack price
1+₹114.77₹114.77
10+₹93.02₹930.20
50+₹79.25₹3,962.50
100+₹68.27₹6,827.00
500+₹61.81₹30,905.00
1,000+₹58.57₹58,570.00

1 × ₹114.77

₹114.77

excl. GST

₹135.43 incl. 18% GST

Need volume or a scheduled delivery? Request a quote
  • Dispatch in 15-18 working days
  • GST invoice with every order
  • Standard pack: 50 per bag

MX2EDGK-5.08-13P-GN01-Cu-Y-A

₹114.77 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Wire Gauge - mm2
2.5
Wire Gauge - AWG
12~24
Number of Positions or Pins
1x13P
Number of Pins
13P
Operating Temperature
-40℃~+105℃
Number of PINs Per Row
13
Number of Rows
1
Current Rating
15A
Outlet Direction (Vertical Basis)
Top Entry
Connection Type
Screw Connection (M2.5)
Voltage Rating
300V
Pitch
5.08mm
Connector Type
Male Plug
Color
Green
Mounting Type
Free-hanging
Termination Style
Without fixing device

Packaging & compliance

RoHS
ROHS Compliant
Lifecycle
Active
Packaging
Bag-packed
Standard pack
50 / Bag
Sold per
Piece
Minimum order
1
Unit weight
18.78 g
