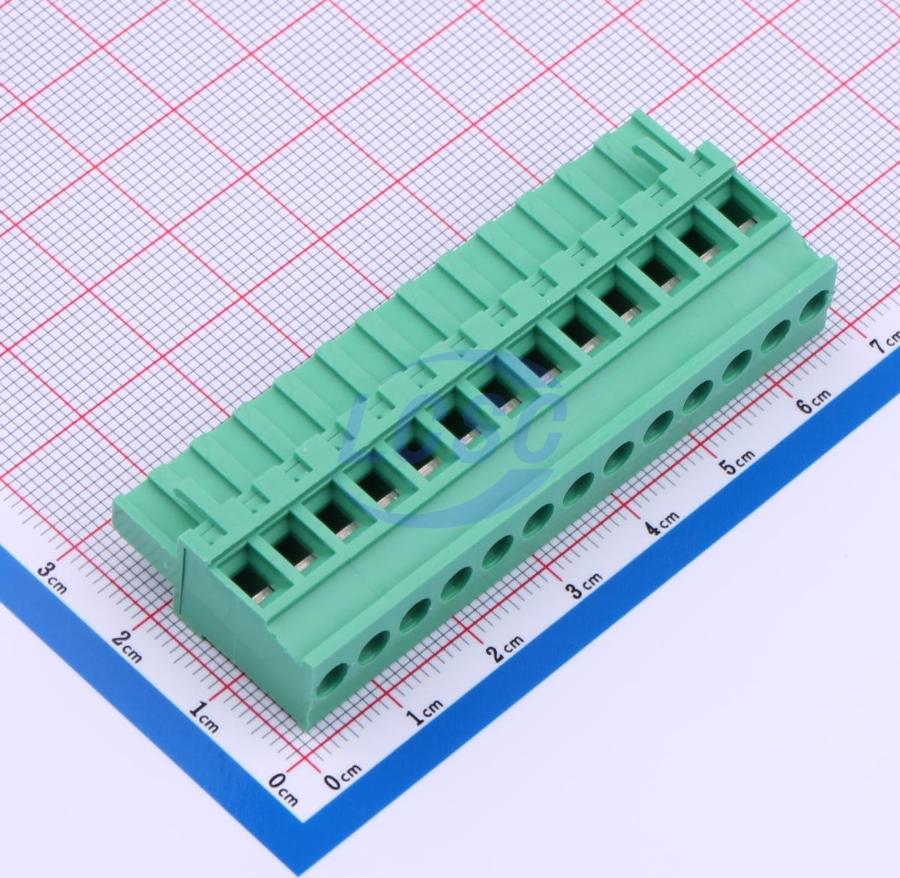

MX2EDGKA-5.08-13P-GN01-Cu-Y-A MAX
MAX

MX2EDGKA-5.08-13P-GN01-Cu-Y-A

13 Position 5.08mm Pitch

Through Hole,P=5.08mmROHS CompliantActive

13POS 5.08mm

Manufacturer
MAX
Manufacturer part #
MX2EDGKA-5.08-13P-GN01-Cu-Y-A
Store part #
C5349586
Package / case
Through Hole,P=5.08mm
Category
Headers, Plugs and Sockets
Packaging
Bag-packed
Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

41 in stock

#C5349586

Stock & price checked 7 days ago

QuantityUnit pricePack price
1+₹119.97₹119.97
10+₹108.39₹1,083.90
50+₹101.80₹5,090.00
100+₹94.62₹9,462.00
500+₹91.42₹45,710.00
1,000+₹90.03₹90,030.00

1 × ₹119.97

₹119.97

excl. GST

₹141.56 incl. 18% GST

Need volume or a scheduled delivery? Request a quote
  • Dispatch in 15-18 working days
  • GST invoice with every order
  • Standard pack: 50 per bag

MX2EDGKA-5.08-13P-GN01-Cu-Y-A

₹119.97 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Wire Gauge - mm2
1~2.5
Wire Gauge - AWG
12~28
Number of Positions or Pins
1x13P
Number of Pins
13P
Operating Temperature
-40℃~+105℃
Number of PINs Per Row
13
Number of Rows
1
Current Rating
15A
Outlet Direction (Vertical Basis)
Horizontal Termination
Connection Type
Screw Connection (M2.5)
Voltage Rating
300V
Pitch
5.08mm
Connector Type
Male Plug
Color
Green
Mounting Type
Free-hanging
Termination Style
Without fixing device

Packaging & compliance

RoHS
ROHS Compliant
Lifecycle
Active
Packaging
Bag-packed
Standard pack
50 / Bag
Sold per
Piece
Minimum order
1
Unit weight
22.86 g
