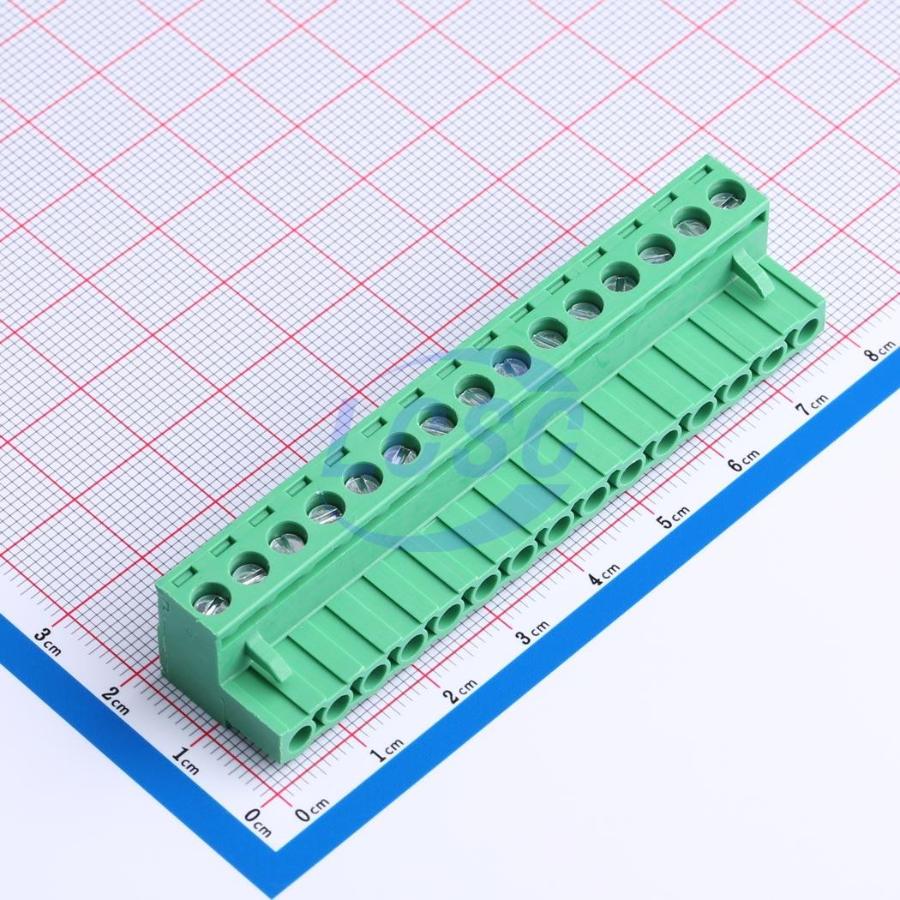

MX2EDGK-5.08-15P-GN01-Cu-Y-A MAX
MAX

MX2EDGK-5.08-15P-GN01-Cu-Y-A

15 Position 5.08mm Pitch

P=5.08mmROHS CompliantActive

15POS 5.08mm

Manufacturer
MAX
Manufacturer part #
MX2EDGK-5.08-15P-GN01-Cu-Y-A
Store part #
C5187925
Package / case
P=5.08mm
Category
Headers, Plugs and Sockets
Packaging
Bag-packed
Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

58 in stock

#C5187925

Stock & price checked 6 days ago

QuantityUnit pricePack price
1+₹129.88₹129.88
10+₹104.52₹1,045.20
50+₹91.94₹4,597.00
100+₹79.37₹7,937.00
500+₹71.98₹35,990.00
1,000+₹68.08₹68,080.00

1 × ₹129.88

₹129.88

excl. GST

₹153.26 incl. 18% GST

Need volume or a scheduled delivery? Request a quote
  • Dispatch in 15-18 working days
  • GST invoice with every order
  • Standard pack: 50 per bag

MX2EDGK-5.08-15P-GN01-Cu-Y-A

₹129.88 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Wire Gauge - mm2
2.5
Wire Gauge - AWG
12~24
Number of Positions or Pins
1x15P
Number of Pins
15P
Operating Temperature
-40℃~+105℃
Number of PINs Per Row
15
Number of Rows
1
Current Rating
15A
Outlet Direction (Vertical Basis)
Top Entry
Connection Type
Screw Connection (M2.5)
Voltage Rating
300V
Pitch
5.08mm
Connector Type
Male Plug
Color
Green
Mounting Type
Free-hanging
Termination Style
Without fixing device

Packaging & compliance

RoHS
ROHS Compliant
Lifecycle
Active
Packaging
Bag-packed
Standard pack
50 / Bag
Sold per
Piece
Minimum order
1
Unit weight
21.44 g

Alternatives

Similar parts — check the datasheet before substituting.

MX2EDGKA-5.08-15P-GN01-Cu-Y-A#C5349588MAX · Through Hole,P=5.08mm₹207.37 · 89 in stockView
MX2EDGKB-5.08-15P-GN01-Cu-Y-A#C7420071MAX · Through Hole,P=5.08mm₹200.87 · 166 in stockView
MX2EDGKD-5.08-15P-GN01-Cu-A#C7497331MAX · Through Hole,P=5.08mm₹260.55 · 147 in stockView
