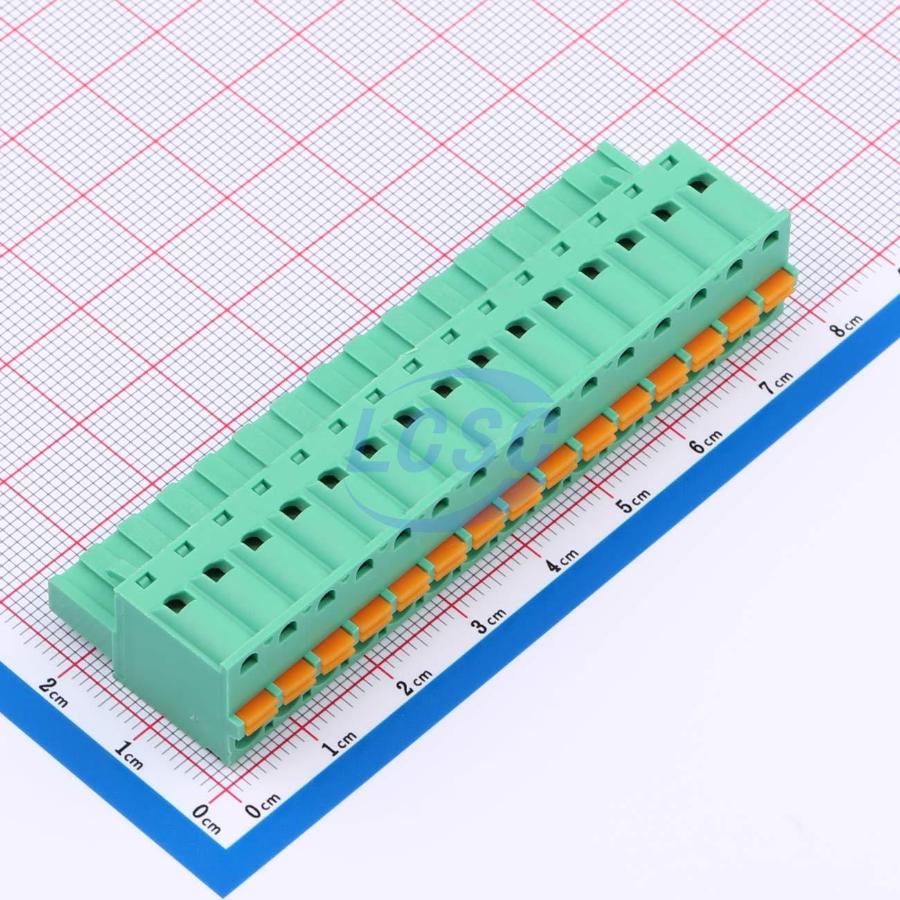

MX2EDGKD-5.08-15P-GN01-Cu-A MAX
MAX

MX2EDGKD-5.08-15P-GN01-Cu-A

15 Position 5.08mm Pitch

Through Hole,P=5.08mmROHS CompliantActive

15POS 5.08mm

Manufacturer
MAX
Manufacturer part #
MX2EDGKD-5.08-15P-GN01-Cu-A
Store part #
C7497331
Package / case
Through Hole,P=5.08mm
Category
Headers, Plugs and Sockets
Packaging
Box-packed
Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

147 in stock

#C7497331

Stock & price checked 6 days ago

QuantityUnit pricePack price
1+₹260.55₹260.55
10+₹221.79₹2,217.90
30+₹197.25₹5,917.50
160+₹172.48₹27,596.80
480+₹161.06₹77,308.80
960+₹156.33₹1,50,076.80

1 × ₹260.55

₹260.55

excl. GST

₹307.45 incl. 18% GST

Need volume or a scheduled delivery? Request a quote
  • Dispatch in 15-18 working days
  • GST invoice with every order
  • Standard pack: 160 per box

MX2EDGKD-5.08-15P-GN01-Cu-A

₹260.55 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Wire Gauge - mm2
0.2~2.5
Wire Gauge - AWG
12~24
Number of Positions or Pins
1x15P
Number of Pins
15P
Operating Temperature
-40℃~+105℃
Number of PINs Per Row
15
Number of Rows
1
Current Rating
10A
Outlet Direction (Vertical Basis)
Top Entry
Connection Type
Spring Connection
Voltage Rating
300V
Pitch
5.08mm
Connector Type
Male Plug
Color
Green
Mounting Type
Free-hanging
Termination Style
Without fixing device

Packaging & compliance

RoHS
ROHS Compliant
Lifecycle
Active
Packaging
Box-packed
Standard pack
160 / Box
Sold per
Piece
Minimum order
1
Unit weight
24.8 g

Alternatives

Similar parts — check the datasheet before substituting.

MX2EDGK-5.08-15P-GN01-Cu-Y-A#C5187925MAX · P=5.08mm₹129.88 · 58 in stockView
MX2EDGKA-5.08-15P-GN01-Cu-Y-A#C5349588MAX · Through Hole,P=5.08mm₹207.37 · 89 in stockView
MX2EDGKB-5.08-15P-GN01-Cu-Y-A#C7420071MAX · Through Hole,P=5.08mm₹200.87 · 166 in stockView
