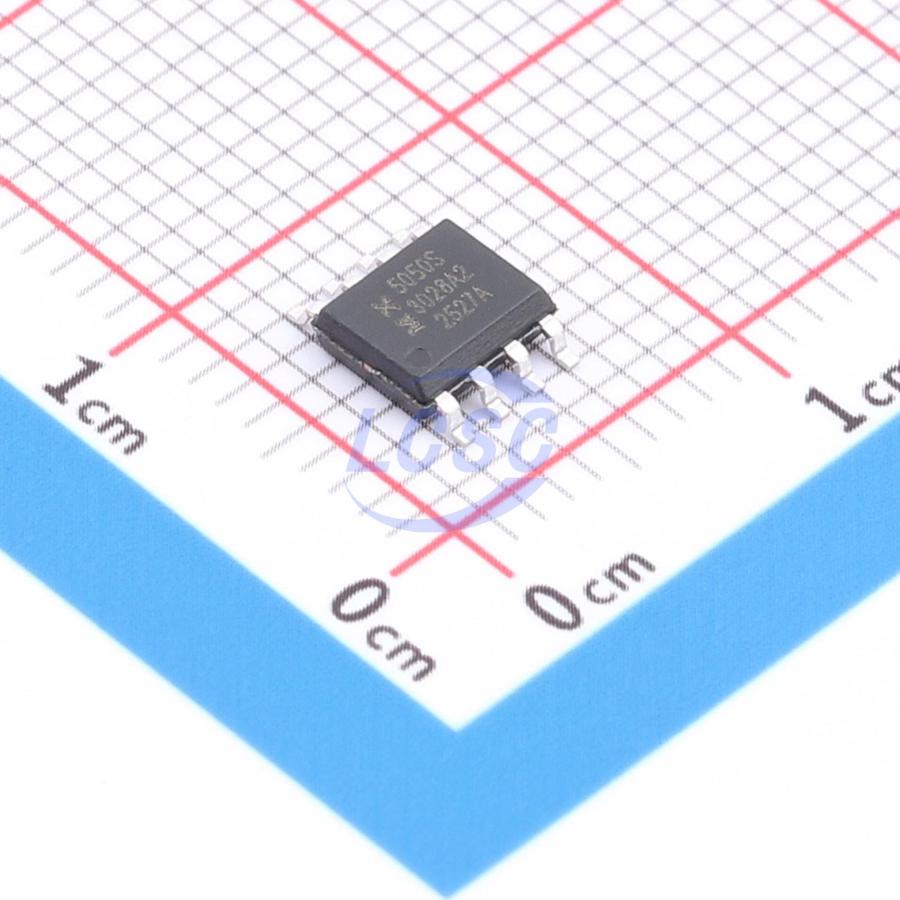

MX5050S3028A2
28mΩ 2 SOP-8L OR Controllers, Ideal Diodes
SOP-8LRoHSActive
- Manufacturer
- Wuxi Maxinmicro
- Manufacturer part #
- MX5050S3028A2
- Store part #
- C51892073
- Package / case
- SOP-8L
- Category
- OR Controllers, Ideal Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,190 in stock
#C51892073
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹73.18 | ₹73.18 |
| 10+ | ₹59.18 | ₹591.80 |
| 30+ | ₹52.30 | ₹1,569.00 |
| 100+ | ₹45.41 | ₹4,541.00 |
| 500+ | ₹41.11 | ₹20,555.00 |
| 1,000+ | ₹39.17 | ₹39,170.00 |
1 × ₹73.18
₹73.18
excl. GST
₹86.35 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MX5050S3028A2
₹73.18 for 1 + GST
Specifications
- Quiescent Current
- 240uA;300uA
- Operating temperature
- -40℃~+125℃
- FET Type
- Integrated FET
- RDS(on)
- 28mΩ
- Input Voltage (Vin)
- 4V~24V
- Function
- Reverse current blocking
- Number of Channels
- 2
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.6 g
Overview
The MX5050S3028A2 high-side OR controller integrates an internal MOSFET that acts as an ideal diode rectifier when connected in series with the power supply. The OR-ing circuit enables the MOSFET to replace diode rectifiers in power distribution networks, reducing power loss and voltage drop. The MX5050S3028A2 controller provides charge pump gate drive for the internal N-channel MOSFET and features a fast-response comparator that turns off the FET when current flows in reverse. The MX5050S3028A2 supports supply voltages from 4V to 20V and can withstand transient voltages up to 30V.
Applications
- Active OR control for redundant (N+1) power supplies
Key features
- Wide operating input voltage range VIN: 4V ~ 24V
- 30V transient voltage
- Charge pump gate driver for internal N-channel MOSFET
- 50ns fast response to current reversal
- 2A peak gate turn-off current (internal)
- Ultra-low VDS turn-off voltage, reducing turn-off time
- 8-pin SOP8L package
