NC7NZ34L8X
1.65V~5.5V 1 3 2.4ns@5V,50pF MicroPak-8 Buffers, Drivers, Receivers, Transceivers RoHS
MicroPak-8ROHS3 CompliantActive

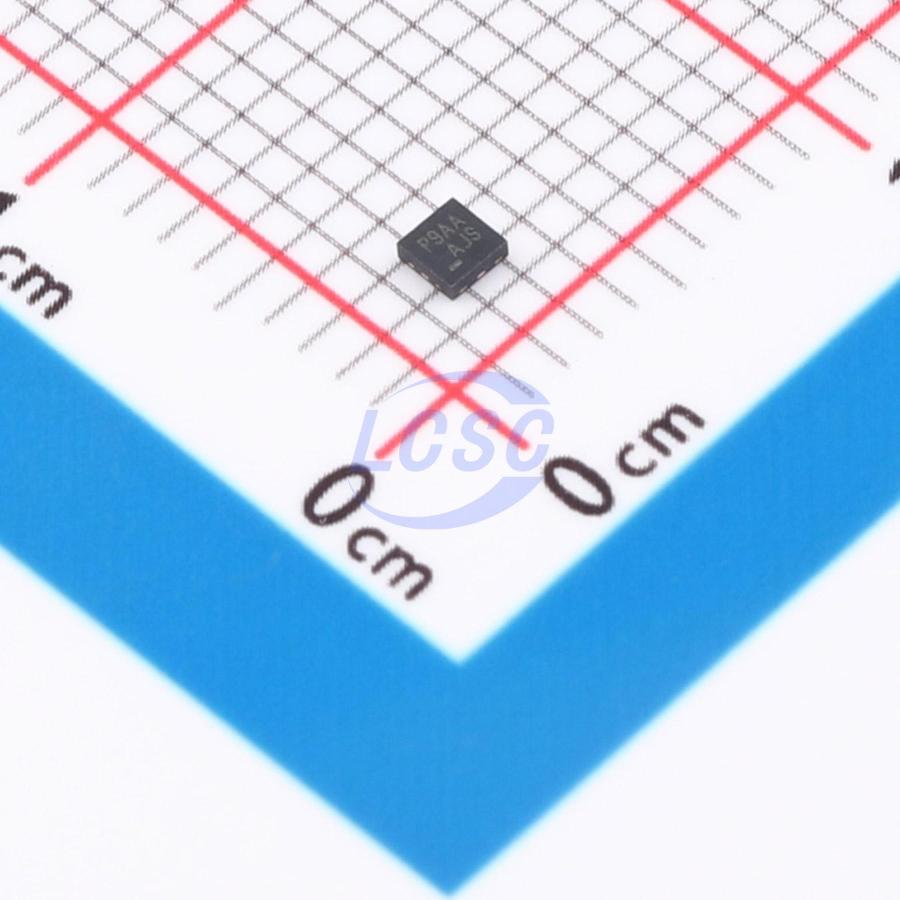

TinyLogic UHS Triple Buffer
- Manufacturer
- onsemi
- Manufacturer part #
- NC7NZ34L8X
- Store part #
- C895516
- Package / case
- MicroPak-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,300 in stock
#C895516
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹37.86 | ₹189.30 |
| 50+ | ₹31.29 | ₹1,564.50 |
| 150+ | ₹28.47 | ₹4,270.50 |
| 500+ | ₹23.50 | ₹11,750.00 |
| 2,500+ | ₹21.94 | ₹54,850.00 |
| 5,000+ | ₹21.00 | ₹1,05,000.00 |
5 × ₹37.86
₹189.30
excl. GST
₹223.37 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
NC7NZ34L8X
₹189.30 for 5 + GST
Specifications
- Voltage - Supply
- 1.65V~5.5V
- Operating Temperature
- -40℃~+85℃
- Quiescent Supply Current
- 10uA
- Function
- Power-off isolation;Level shifting
- Current - Output High(IOH)
- 32mA
- Series
- 7NZ
- Current - Output Low(IOL)
- 32mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 3
- Propagation Delay
- 2.4ns@5V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.024 g
Overview
The NC7NZ34 is a triple buffer from onsemi’s Ultra High Speed Series of TinyLogic in the space saving US8 package. The device is fabricated with advanced CMOS technology to achieve ultra high speed with high output drive while maintaining low static power dissipation over a very broad VCC operating range. The device is specified to operate over the 1.65 V to 5.5 V VCC range. The inputs and outputs are high impedance when VCC is 0 V. Inputs tolerate voltages up to 5.5 V independent of VCC operating voltage.
Key features
- Space Saving US8 Surface Mount Package
- MicroPak Pb−Free Leadless Package
- Ultra High Speed: tPD 2.4 ns Typ into 50 pF at 5 V VCC
- High Output Drive: ±24 mA at 3 V VCC
- Broad VCC Operating Range: 1.65 V to 5.5 V
- Power Down High Impedance Inputs / Outputs
- Overvoltage Tolerant Inputs Facilitate 5 V to 3 V Translation
- Proprietary Noise / EMI Reduction Circuitry Implemented
- These Devices are Pb −Free, Halogen Free/BFR Free and are RoHS Compliant
