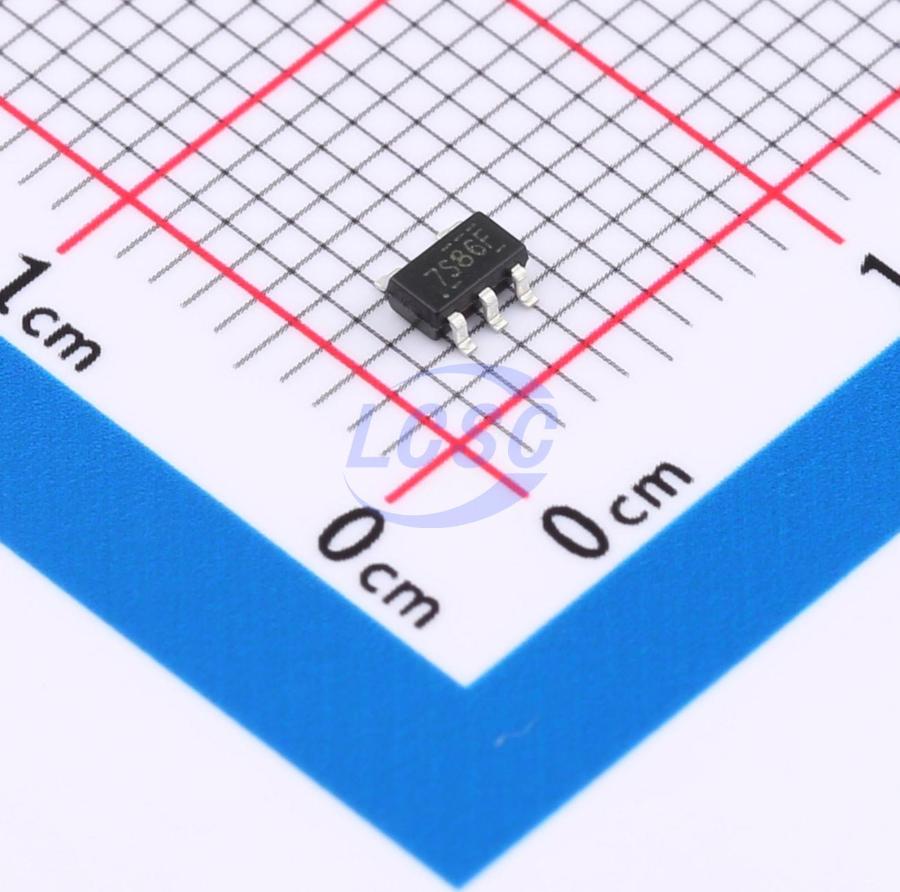

NC7S86M5X
10uA 2V~6V 10ns@6V,50pF SOT-23-5 Gates and Inverters
SOT-23-5RoHSActive
2-input EXCLUSIVE OR Gate
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- NC7S86M5X
- Store part #
- C19829498
- Package / case
- SOT-23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,110 in stock
#C19829498
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.61 | ₹76.10 |
| 100+ | ₹6.10 | ₹610.00 |
| 300+ | ₹5.33 | ₹1,599.00 |
| 3,000+ | ₹4.78 | ₹14,340.00 |
| 6,000+ | ₹4.31 | ₹25,860.00 |
| 9,000+ | ₹4.09 | ₹36,810.00 |
10 × ₹7.61
₹76.10
excl. GST
₹89.80 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NC7S86M5X
₹76.10 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Input Logic Level - High
- 1.5V;3.15V;4.2V
- Logic Family
- NC7S
- Input Logic Level - Low
- 500mV;1.35V;1.8V
- Output Logic Level - High
- 1.9V;4.4V;5.9V;4.13V;5.63V
- Quiescent Current(Iq)
- 10uA
- Voltage - Supply
- 2V~6V
- Current - Output High(IOH)
- 2.6mA
- Number of Channels
- 1;2
- Propagation Delay
- 10ns@6V,50pF
- Output Logic Level - Low
- 100mV;330mV
- Current - Output Low(IOL)
- 2.6mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.035 g
Overview
NC7S86 are CMOS 2-input EXOR gate ICs. They realize a high speed operation similar to LS TTL with a lower power consumption by CMOS features. An inner circuit structure of 3-stages logic gates obtains a wider noise immunity and a constant output.
Applications
- AV Receiver
- Audio Dock:Portable
- Blu-ray Player and Home Theater
- Embedded PC
- Personal Digital Assistant(PDA)
- Power:Telecom/Server AC/DC Supply:Single
- Controller:Analog and Digital
- Solid State Drive(SSD):Client and Enterprise
- Wireless Headset,Keyboard,and Mouse
Key features
- Operate from 2.0V to 6.0V
- Same electrical characteristics as 74HC Series
- |OH| = |OL| = 2mA (min)
- SOT23-5 Package Available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74HC1G86GV#C52205106TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 1,600 | ₹5.76 · 1,600 in stock | View |
 | MC74VHC1G86DTT1G-TP#C53100488TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,920 | ₹5.66 · 2,920 in stock | View |
 | TP74AHC1G86S5#C52205200TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,160 | ₹6.77 · 2,160 in stock | View |
 | TC7SH86F-TP#C54195025TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 3,000 | ₹5.81 · 3,000 in stock | View |
| 74AHC1G86W5-TP#C52098166TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 3,100 | ₹5.85 · 3,100 in stock | View | |
