TECH PUBLICDatasheet (PDF)

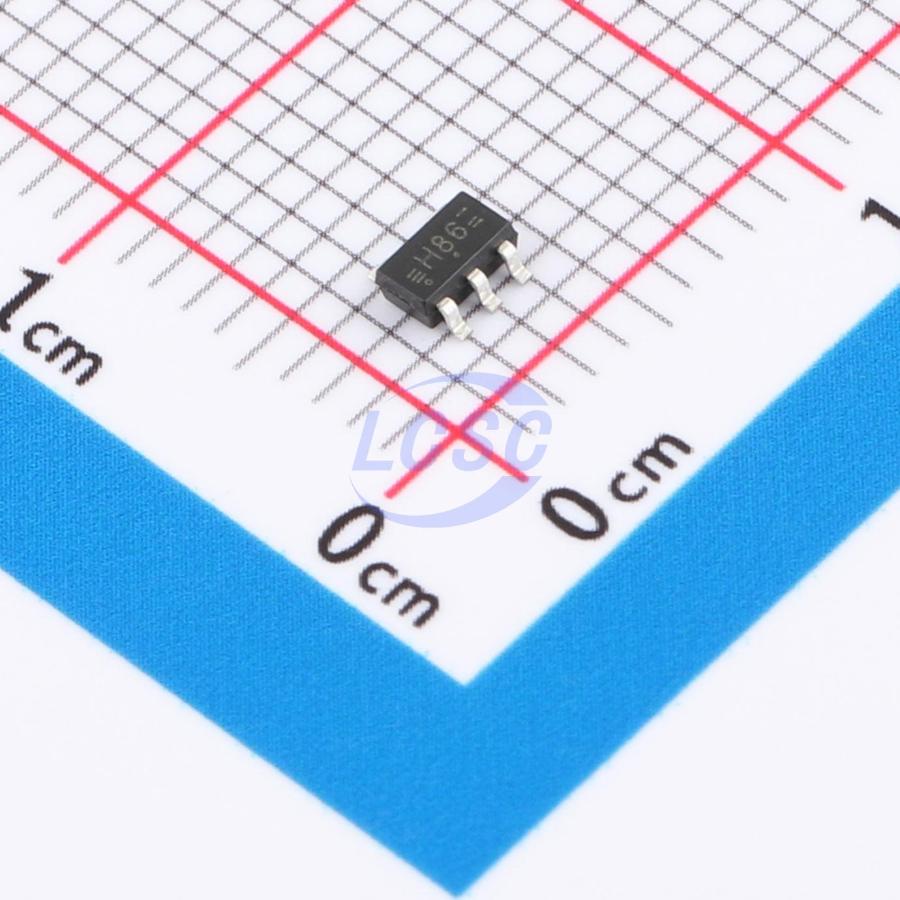

74HC1G86GV
2V~6V 17ns@6V,50pF 1uA SOT-23-5 Gates and Inverters
SOT-23-5RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- 74HC1G86GV
- Store part #
- C52205106
- Package / case
- SOT-23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,600 in stock
#C52205106
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.76 | ₹57.60 |
| 100+ | ₹4.54 | ₹454.00 |
| 300+ | ₹3.92 | ₹1,176.00 |
| 3,000+ | ₹3.47 | ₹10,410.00 |
| 6,000+ | ₹3.10 | ₹18,600.00 |
| 9,000+ | ₹2.91 | ₹26,190.00 |
10 × ₹5.76
₹57.60
excl. GST
₹67.97 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74HC1G86GV
₹57.60 for 10 + GST
Specifications
- Logic Family
- 74HC
- Voltage - Supply
- 2V~6V
- Propagation Delay
- 17ns@6V,50pF
- Output Logic Level - Low
- 100mV;260mV
- Input Logic Level - High
- 1.5V;3.15V;4.2V
- Operating Temperature
- -40℃~+85℃
- Input Logic Level - Low
- 500mV;1.35V;1.8V
- Output Logic Level - High
- 1.9V;4.4V;5.9V;4.18V;5.68V
- Quiescent Current(Iq)
- 1uA
- Current - Output High(IOH)
- 2.6mA
- Number of Channels
- 1;2
- Current - Output Low(IOL)
- 2.6mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.035 g
Overview
The 74HC1G86 is a high-speed CMOS 2-input XOR gate fabricated using silicon gate CMOS technology. It delivers LS-TTL comparable speed while maintaining the low power consumption characteristic of CMOS. The internal circuit features a 3-stage buffered architecture, providing wide noise margins and stable output.
Key features
- Basic gate logic function belonging to the Renesas uni-logic series.
- Embossed carrier tape packaging for high-speed automated placement.
- Supply voltage range: 2V to 6V
- Operating temperature range: -40°C to +85°C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NC7S86M5X#C19829498TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 4,110 | ₹7.61 · 4,110 in stock | View |
 | MC74VHC1G86DTT1G-TP#C53100488TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,920 | ₹5.66 · 2,920 in stock | View |
 | TP74AHC1G86S5#C52205200TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,160 | ₹6.77 · 2,160 in stock | View |
 | SN74AHC1G86DBVR#C19829670TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 8,230 | ₹7.33 · 8,230 in stock | View |
 | 74AHC1G86GV-TP#C52098167TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 4,500 | ₹5.85 · 4,500 in stock | View |
