TECH PUBLICDatasheet (PDF)

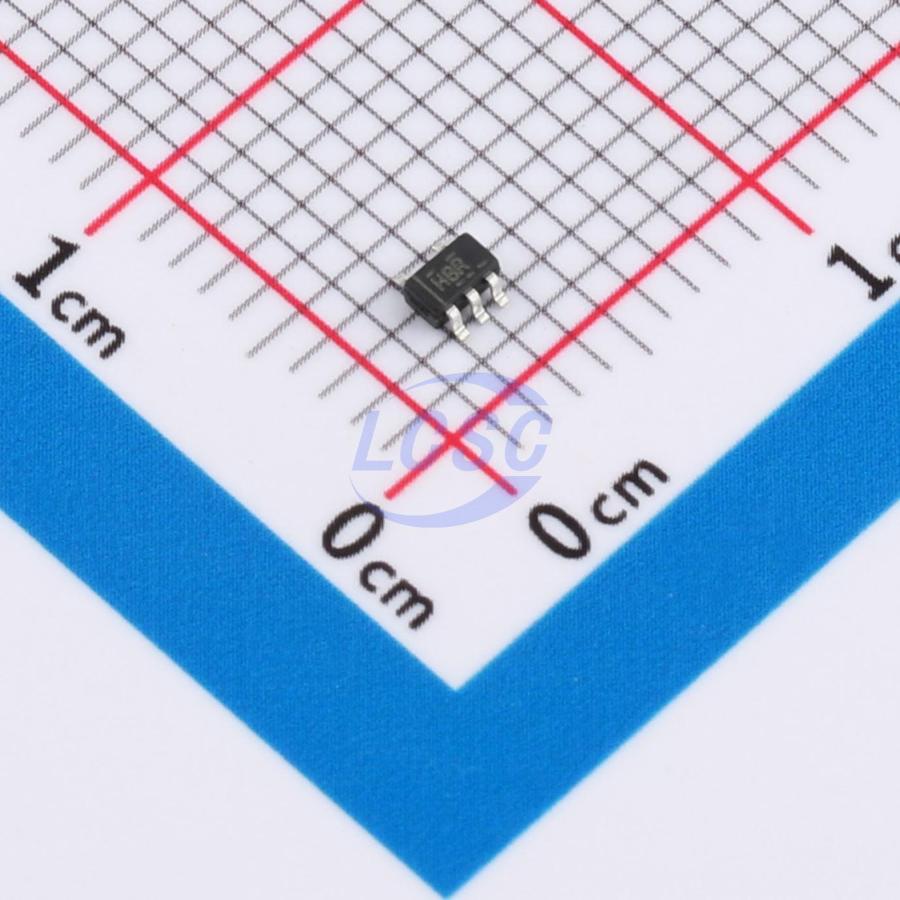

NC7SP02P5X-TP
500nA 800mV~3.6V 4.7ns@3.3V,30pF SOT-353 Gates and Inverters
SOT-353RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- NC7SP02P5X-TP
- Store part #
- C52098160
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,000 in stock
#C52098160
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.62 | ₹96.20 |
| 100+ | ₹7.57 | ₹757.00 |
| 300+ | ₹6.54 | ₹1,962.00 |
| 3,000+ | ₹5.77 | ₹17,310.00 |
| 6,000+ | ₹5.15 | ₹30,900.00 |
| 9,000+ | ₹4.84 | ₹43,560.00 |
10 × ₹9.62
₹96.20
excl. GST
₹113.52 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NC7SP02P5X-TP
₹96.20 for 10 + GST
Specifications
- Input Logic Level - Low
- 700mV;900mV
- Operating Temperature
- -40℃~+125℃
- Input Logic Level - High
- 1.6V;2V
- Features
- Local shutdown mode
- Output Logic Level - High
- 1.11V;1.32V;1.9V;2.05V;2.6V;2.72V
- Quiescent Current(Iq)
- 500nA
- Voltage - Supply
- 800mV~3.6V
- Current - Output High(IOH)
- 4mA
- Number of Channels
- 1;2
- Propagation Delay
- 4.7ns@3.3V,30pF
- Output Logic Level - Low
- 100mV;310mV;440mV
- Current - Output Low(IOL)
- 4mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.029 g
Overview
NC7SP02P5X-TP is a low-power single 2-input NOR gate that implements the function Y = /(A+B) or Y = /A · /B in positive logic. The device ensures very low static and dynamic power consumption across the entire VCC range of 0.8V to 3.6V.
Applications
- Audio docking stations
- Blu-ray players and home theater systems
- Personal digital assistants
- Power supplies
- Solid-state drives
Key features
- Wide supply voltage range: 0.8V to 3.6V
- Inputs accept voltages up to 3.6V
- I<sub>OFF</sub> supports partial power-down mode
- Low quiescent current; I<sub>CC</sub> = 0.5μA (maximum)
- ESD protection exceeds JESD 22: 2000V HBM, 200V MM, 1000V CDM
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TP74AUP1G02C5#C49231000TECH PUBLIC · SOT353 | TECH PUBLIC | SOT353 | 500 | ₹11.66 · 500 in stock | View |
 | 74AUP1G02GW-TP#C49230938TECH PUBLIC · SOT353 | TECH PUBLIC | SOT353 | 2,960 | ₹9.80 · 2,960 in stock | View |
 | SN74AUP1G02DCKR-TP#C49230992TECH PUBLIC · SOT353 | TECH PUBLIC | SOT353 | 4,020 | ₹9.87 · 4,020 in stock | View |
