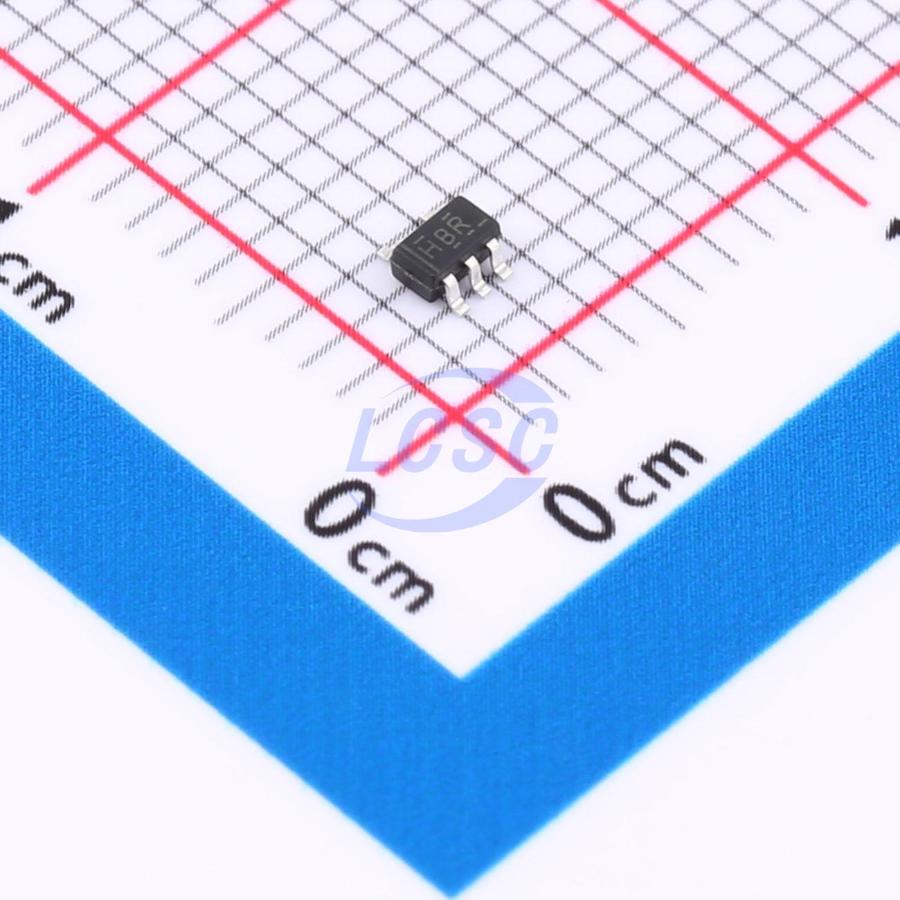

SN74AUP1G02DCKR-TP
500nA 800mV~3.6V 2.4ns@3.3V,5pF SOT353 Gates and Inverters RoHS
SOT353ROHS CompliantActive
SINGLE 2-INPUT NOR GATE
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- SN74AUP1G02DCKR-TP
- Store part #
- C49230992
- Package / case
- SOT353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,020 in stock
#C49230992
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.87 | ₹98.70 |
| 100+ | ₹7.79 | ₹779.00 |
| 300+ | ₹6.76 | ₹2,028.00 |
| 3,000+ | ₹5.99 | ₹17,970.00 |
| 6,000+ | ₹5.37 | ₹32,220.00 |
| 9,000+ | ₹5.07 | ₹45,630.00 |
10 × ₹9.87
₹98.70
excl. GST
₹116.47 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74AUP1G02DCKR-TP
₹98.70 for 10 + GST
Specifications
- Features
- Local shutdown mode
- Logic Family
- 74AUP
- Input Logic Level - Low
- 700mV;900mV
- Operating Temperature
- -40℃~+125℃
- Input Logic Level - High
- 1.6V;2V
- Output Logic Level - High
- 1.11V;1.32V;2.05V;1.9V;2.72V;2.6V
- Quiescent Current(Iq)
- 500nA
- Voltage - Supply
- 800mV~3.6V
- Current - Output High(IOH)
- 20mA
- Number of Channels
- 1;2
- Propagation Delay
- 2.4ns@3.3V,5pF
- Output Logic Level - Low
- 310mV;440mV
- Current - Output Low(IOL)
- 20mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.029 g
Overview
The SN74AUP1G02 is a low-power single 2-input positive-NOR gate which provides the Function Y = (A + B)(overline) or Y = A(overline) · B(overline) in positive logic. This device ensures a very low static and dynamic power consumption across the entire VCC range from 0.8V to 3.6V.
Applications
- AV Receiver
- Audio Dock: Portable
- Blu-ray Player and Home Theater
- Embedded PC
- Personal Digital Assistant (PDA)
- Power: Telecom/Server AC/DC Supply: Single Controller: Analog and Digital
- Solid State Drive (SSD): Client and Enterprise
- Wireless Headset, Keyboard, and Mouse
Key features
- Wide supply voltage range from 0.8V to 3.6V
- Inputs accept voltages up to 3.6V
- I(OFF) supports partial-power-down mode
- Low static power consumption; ICC = 0.5μA (Max.)
- ESD Protection Exceeds JESD 22 - 2000-V Human-Body Model (A114-A)
- 200-V Machine Model (A115-A)
- 1000-V Charged-Device Model (C101)
