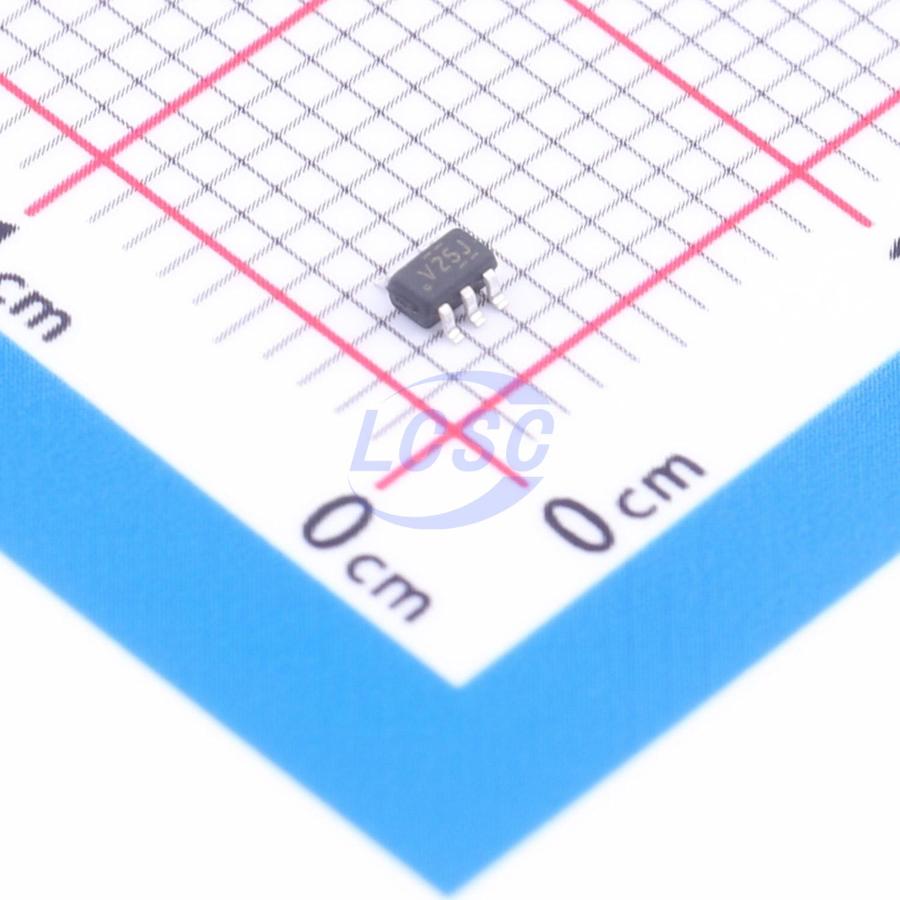

NC7SV125P5X-TP
0.9V~3.6V 1 1 5.8ns@3.3V,30pF SOT-353 Buffers, Drivers, Receivers, Transceivers
SOT-353RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- NC7SV125P5X-TP
- Store part #
- C54194956
- Package / case
- SOT-353
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,880 in stock
#C54194956
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.50 | ₹95.00 |
| 100+ | ₹7.49 | ₹749.00 |
| 300+ | ₹6.50 | ₹1,950.00 |
| 3,000+ | ₹5.73 | ₹17,190.00 |
| 6,000+ | ₹5.13 | ₹30,780.00 |
| 9,000+ | ₹4.83 | ₹43,470.00 |
10 × ₹9.50
₹95.00
excl. GST
₹112.10 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NC7SV125P5X-TP
₹95.00 for 10 + GST
Specifications
- Current - Output High(IOH)
- 20mA
- Voltage - Supply
- 0.9V~3.6V
- Series
- NC7SV
- Current - Output Low(IOL)
- 20mA
- Output Type
- Tri-State
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 500nA
- Propagation Delay
- 5.8ns@3.3V,30pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.03 g
Overview
NC7SV125P5X - TP is a single bus buffer/line driver with tri-state output. When the output enable (OE) is high, the output is disabled. Conversely, when OE is low, true data is passed from the A input to the Y output.
Applications
- AV receivers
- Portable audio docks
- Blu-ray players and home theater
- Embedded PCs
- PDAs
- Telecom/server AC/DC power supplies: single controller: analog and digital
- SSDs: client and enterprise
- Wireless headsets, keyboards, and mice
Key features
- Wide supply voltage range: 0.9V to 3.6V
- Inputs tolerant up to 3.6V
- IoFe supports partial power-down mode
- Low quiescent current; Icc = 0.5μA (max)
- ESD protection exceeds JESD 22
- 2000V Human Body Model (A114-A)
- 200V Machine Model (A115-A)
- 1000V Charged Device Model (C101)
