onsemiDatasheet (PDF)

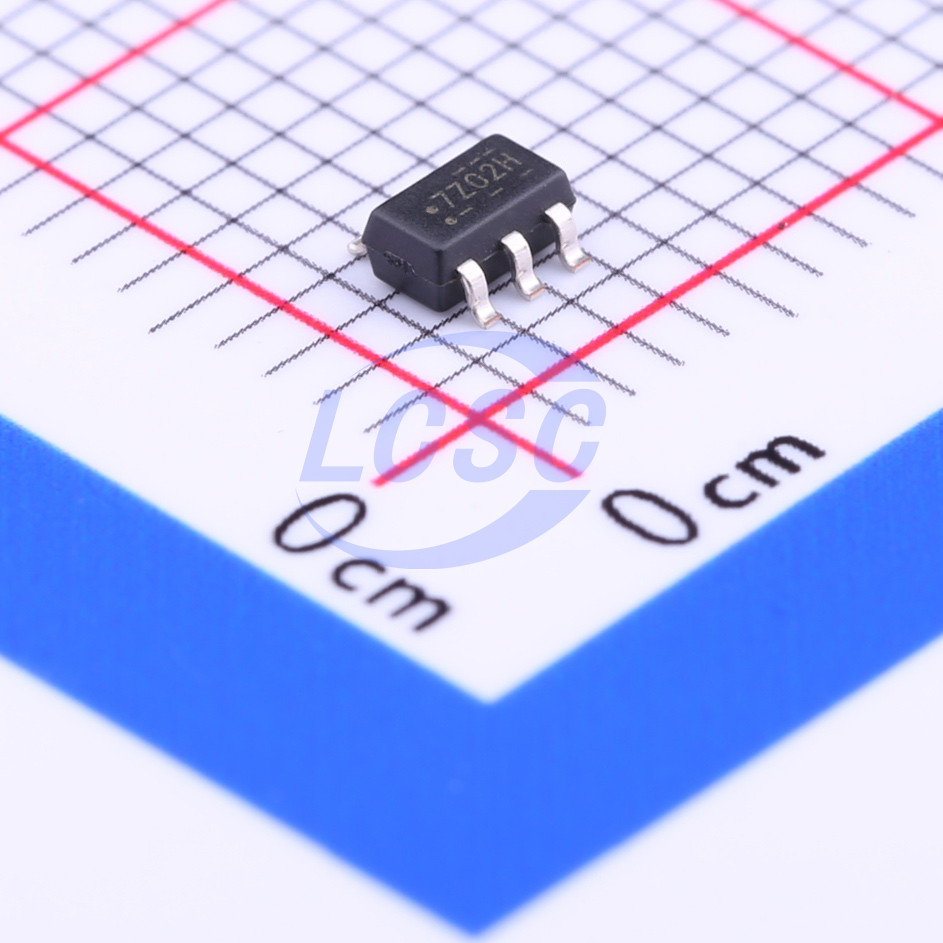

NC7SZ02M5X
1.65V~5.5V 4.5ns@5V,50pF 2uA SOT-23-5 Gates and Inverters RoHS
SOT-23-5ROHS3 CompliantActive
- Manufacturer
- onsemi
- Manufacturer part #
- NC7SZ02M5X
- Store part #
- C232809
- Package / case
- SOT-23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,850 in stock
#C232809
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.79 | ₹57.90 |
| 100+ | ₹5.68 | ₹568.00 |
| 300+ | ₹5.60 | ₹1,680.00 |
| 1,000+ | ₹5.52 | ₹5,520.00 |
10 × ₹5.79
₹57.90
excl. GST
₹68.32 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NC7SZ02M5X
₹57.90 for 10 + GST
Specifications
- Logic Family
- 7SZ Series
- Voltage - Supply
- 1.65V~5.5V
- Output Logic Level - Low
- 100mV;240mV;300mV;400mV;550mV
- Propagation Delay
- 4.5ns@5V,50pF
- Features
- Local shutdown mode;Overvoltage-tolerant input
- Operating Temperature
- -40℃~+85℃
- Output Logic Level - High
- 1.55V;1.7V;2.2V;2.9V;4.4V;1.29V;1.9V;2.4V;2.3V;3.8V
- Quiescent Current(Iq)
- 2uA
- Number of Channels
- 1;2
- Current - Output High(IOH)
- 32mA
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.041 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MSN74LVC1G02DBVR#C42403087MSKSEMI · SOT-23-5 | MSKSEMI | SOT-23-5 | 2,990 | ₹7.42 · 2,990 in stock | View |
| SN74LVC1G02DBVT#C2859595TI · SOT-23-5 | TI | SOT-23-5 | 388 | ₹87.36 · 388 in stock | View | |
 | AIP74LVC1G02GB235.TR#C4945060Wuxi I-core Elec · SOT-23-5 | Wuxi I-core Elec | SOT-23-5 | 190 | ₹12.32 · 190 in stock | View |
 | RS1G02XF5#C42459499RUNIC · SOT-23-5 | RUNIC | SOT-23-5 | 2,630 | ₹9.96 · 2,630 in stock | View |
 | 74LVC1G02GV#C41348122TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,820 | ₹5.40 · 2,820 in stock | View |
