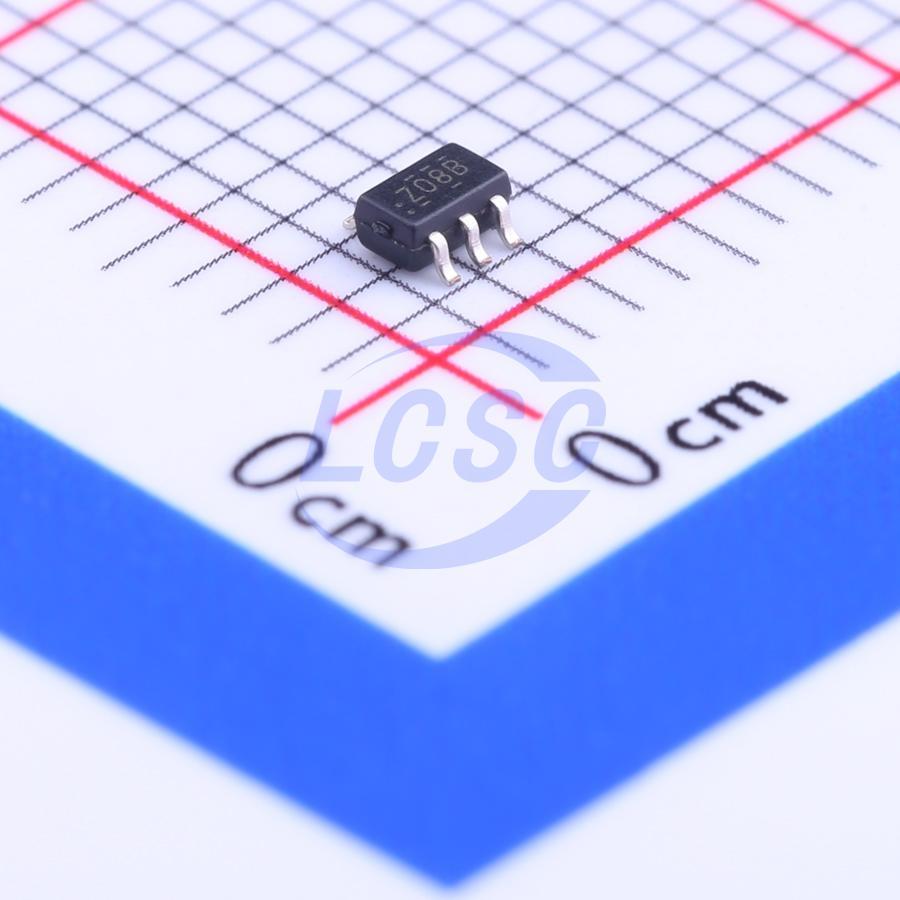

NC7SZ08P5X
2uA 1.65V~5.5V 4.5ns@5V,50pF SC-70-5 Gates and Inverters RoHS
SC-70-5ROHS3 CompliantActive
TinyLogic UHS Two-Input AND Gate
- Manufacturer
- onsemi
- Manufacturer part #
- NC7SZ08P5X
- Store part #
- C128377
- Package / case
- SC-70-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,530 in stock
#C128377
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.95 | ₹59.50 |
| 100+ | ₹4.76 | ₹476.00 |
| 300+ | ₹4.17 | ₹1,251.00 |
| 3,000+ | ₹3.72 | ₹11,160.00 |
| 6,000+ | ₹3.37 | ₹20,220.00 |
| 9,000+ | ₹3.18 | ₹28,620.00 |
10 × ₹5.95
₹59.50
excl. GST
₹70.21 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NC7SZ08P5X
₹59.50 for 10 + GST
Specifications
- Features
- Local shutdown mode;Overvoltage-tolerant input
- Operating Temperature
- -40℃~+85℃
- Logic Family
- 7SZ Series
- Output Logic Level - High
- 3.9V~4.2V;4.4V~4.5V
- Quiescent Current(Iq)
- 2uA
- Voltage - Supply
- 1.65V~5.5V
- Number of Channels
- 1;2
- Current - Output High(IOH)
- 32mA
- Output Logic Level - Low
- 0V~100mV;220mV~550mV
- Propagation Delay
- 4.5ns@5V,50pF
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.028 g
Overview
Ultra- High Speed: tPp 2.7ns (Typical) into 50pF at 5V Vcc High Output Drive: ±24mA at 3VCC Broad VCC Operating Range: 1.65V to 5.5V Matches Performance of LCX Operated at 3.3VCC Power Down High Impedance Inputs/Outputs Over- Voltage Tolerance inputs facilitate 5V to 3V Translation Proprietary Noise/EMI Reduction Circuitry Ultra- Small MicroPakTM Packages Space- Saving SOT23 and SC70 Packages The NC7SZ08 is a single two- input AND gate from the Ultra- High Speed (UHS) series. The device is fabricated with advanced CMOS technology to achieve ultra- high speed with high output drive while maintaining low static power dissipation over a broad VCC operating range. The devise is specified to operate over the 1.65V to 5.5V VCC operating range. The inputs and output are high impedance when VCC is 0V. Inputs tolerate voltages up to 6V, independent of VCC operating voltage.
Key features
- Ultra- High Speed: tPp 2.7ns (Typical) into 50pF at 5V Vcc
- High Output Drive: ±24mA at 3VCC
- Broad VCC Operating Range: 1.65V to 5.5V
- Matches Performance of LCX Operated at 3.3VCC
- Power Down High Impedance Inputs/Outputs
- Over- Voltage Tolerance inputs facilitate 5V to 3V Translation
- Proprietary Noise/EMI Reduction Circuitry
- Ultra- Small MicroPakTM Packages
- Space- Saving SOT23 and SC70 Packages
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | RS1G08XC5#C2762290RUNIC · SOT-353 | RUNIC | SOT-353 | 2,440 | ₹10.86 · 2,440 in stock | View |
 | SN74LVC1G08DCKR#C5279048TWGMC · SC-70-5 | TWGMC | SC-70-5 | 180 | ₹7.30 · 180 in stock | View |
 | TC7SZ08FU,LJ(CT#C146375TOSHIBA · SOT-353 | TOSHIBA | SOT-353 | 780 | ₹8.03 · 780 in stock | View |
 | SN74LVC1G08IDCKREP#C2872035TI · SC-70-5 | TI | SC-70-5 | 63 | ₹158.28 · 63 in stock | View |
 | 74LVC1G08GW,125#C12512Nexperia · SOT-353 | Nexperia | SOT-353 | 62,110 | ₹7.25 · 62,110 in stock | View |
