onsemiDatasheet (PDF)
NC7SZ125L6X
1.65V~5.5V 1 1 5ns@5V,50pF UFDFN-6 Buffers, Drivers, Receivers, Transceivers RoHS
UFDFN-6ROHS3 CompliantActive

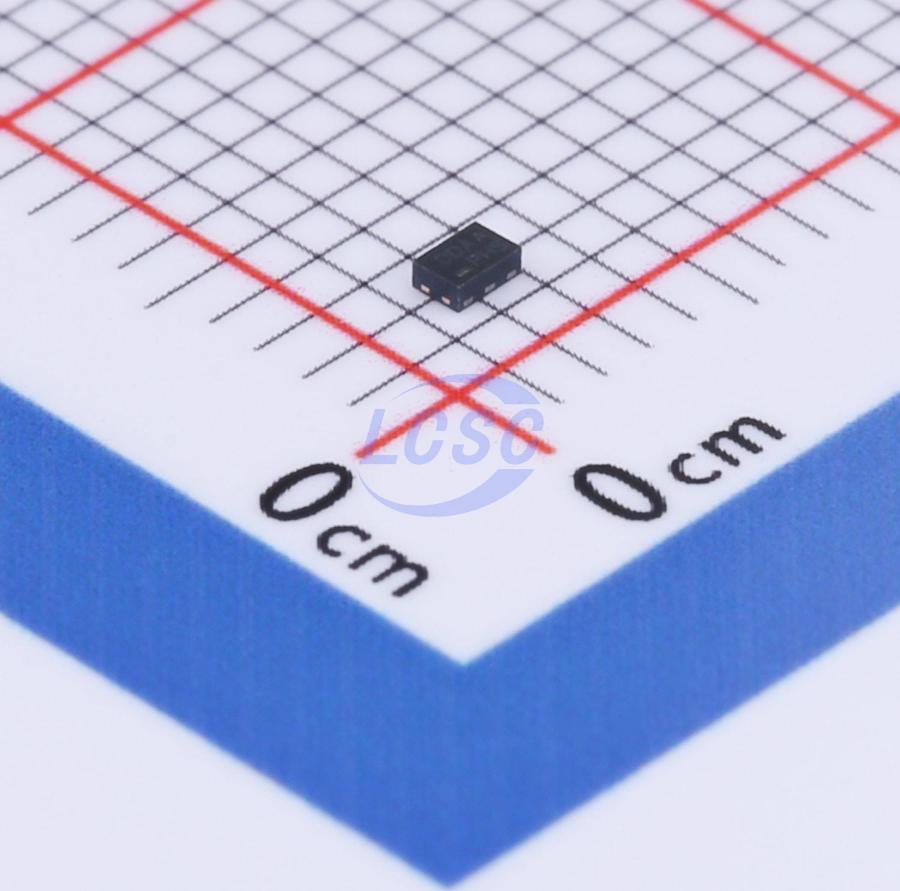

TinyLogic UHS Buffer with Three-State Output
- Manufacturer
- onsemi
- Manufacturer part #
- NC7SZ125L6X
- Store part #
- C457636
- Package / case
- UFDFN-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,330 in stock
#C457636
Stock & price checked 20 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.75 | ₹68.75 |
| 50+ | ₹11.55 | ₹577.50 |
| 150+ | ₹10.61 | ₹1,591.50 |
| 500+ | ₹9.45 | ₹4,725.00 |
| 2,500+ | ₹8.92 | ₹22,300.00 |
| 5,000+ | ₹8.60 | ₹43,000.00 |
5 × ₹13.75
₹68.75
excl. GST
₹81.13 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
NC7SZ125L6X
₹68.75 for 5 + GST
Specifications
- Voltage - Supply
- 1.65V~5.5V
- Output Type
- Tri-State
- Operating Temperature
- -40℃~+85℃
- Quiescent Supply Current
- 20uA
- Function
- Power-off isolation;Level shifting
- Current - Output High(IOH)
- 32mA
- Series
- 7SZ
- Current - Output Low(IOL)
- 32mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Propagation Delay
- 5ns@5V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.022 g
Overview
The NC7SZ125 is a single buffer with three−state output from ON Semiconductor’s Ultra−High Speed (UHS) of TinyLogic. The device is fabricated with advanced CMOS technology to achieve ultra high speed with high output drive while maintaining low static power dissipation over a very broad VCC operating range. The device is specified to operate over the 1.65 V to 5.5 V range. The inputs and output are high impedance above ground when VCC is 0 V. Inputs tolerate voltages up to 5.5 V independent of VCC operating voltage. The output tolerates voltages above VCC when in the 3−STATE condition.
Key features
- Ultra−High Speed: tpD = 2.6 ns (Typical) into 50 pF at 5 V VCC
- High Output Drive: ±24 mA at 3 V VCC
- Broad VCC Operating Range: 1.65 V to 5.5 V
- Matches Performance of LCX when Operated at 3.3 V VCC
- Power Down High−Impedance Inputs / Outputs
- Over−Voltage Tolerance Inputs Facilitate 5 V to 3 V Translation
- Proprietary Noise / EMI Reduction Circuitry
- Ultra−Small MicroPak Packages
- Space−Saving SC−74A and SC−88A Packages
- These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
