onsemiDatasheet (PDF)
NC7SZ126P5X
1.65V~5.5V 1 1 2.1ns@5V,50pF SC-70 Buffers, Drivers, Receivers, Transceivers RoHS
SC-70ROHS3 CompliantActive

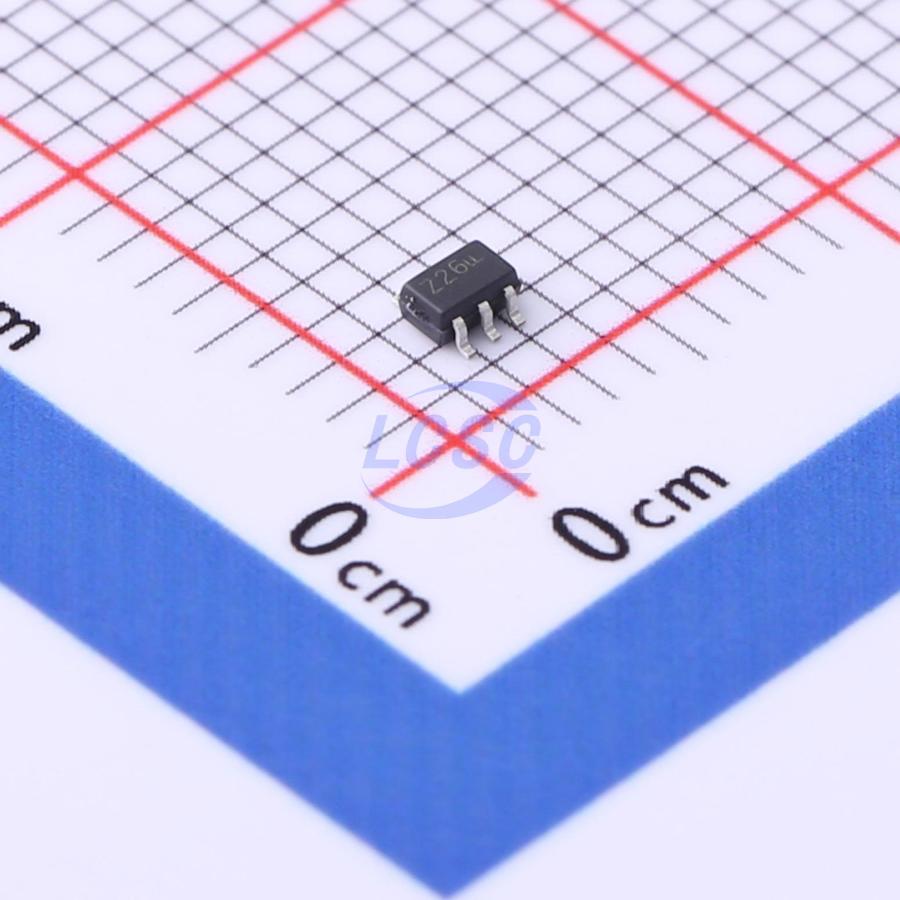

TinyLogic UHS Buffer with Three-State Output
- Manufacturer
- onsemi
- Manufacturer part #
- NC7SZ126P5X
- Store part #
- C891953
- Package / case
- SC-70
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,130 in stock
#C891953
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.42 | ₹74.20 |
| 100+ | ₹5.79 | ₹579.00 |
| 300+ | ₹4.97 | ₹1,491.00 |
| 3,000+ | ₹4.37 | ₹13,110.00 |
| 6,000+ | ₹3.88 | ₹23,280.00 |
| 9,000+ | ₹3.64 | ₹32,760.00 |
10 × ₹7.42
₹74.20
excl. GST
₹87.56 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NC7SZ126P5X
₹74.20 for 10 + GST
Specifications
- Voltage - Supply
- 1.65V~5.5V
- Output Type
- Tri-State
- Operating Temperature
- -40℃~+85℃
- Quiescent Supply Current
- 20uA
- Function
- Power-off isolation;Level shifting
- Current - Output High(IOH)
- 32mA
- Series
- 7SZ
- Current - Output Low(IOL)
- 32mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Propagation Delay
- 2.1ns@5V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.029 g
Overview
The NC7SZ126 is a single buffer with three−State output from the Ultra−High Speed (UHS) series of TinyLogic. The device is fabricated with advanced CMOS technology to achieve ultra−high speed with high output drive while maintaining low static power dissipation over a broad VCC operating range. The device is specified to operate over the 1.65 V to 5.5 V VCC operating range. The inputs and output are high impedance above ground when VCC is 0 V. Inputs tolerate voltages up to 5.5 V independent of VCC operating voltage. The output tolerates voltages above VCC in the 3−STATE condition.
Key features
- Ultra−High Speed: tpD = 2.6 ns (Typical) into 50 pF at 5 V VCC
- High Output Drive: ±24 mA at 3 V VCC
- Broad VCC Operating Range: 1.65 V to 5.5 V
- Matches Performance of LCX when Operated at 3.3 V VCC
- Power Down High−Impedance Inputs / Outputs
- Over−Voltage Tolerance Inputs Facilitate 5 V to 3 V Translation
- Proprietary Noise / EMI Reduction Circuitry
- Ultra−Small MicroPak Packages
- Space−Saving SOT23−5, SC−74A and SC−88A Packages
- These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
