NC7SZ32M5X

2uA 1.65V~5.5V 4.5ns@5V,50pF SOT-23-5 Gates and Inverters RoHS

SOT-23-5ROHS3 CompliantActive

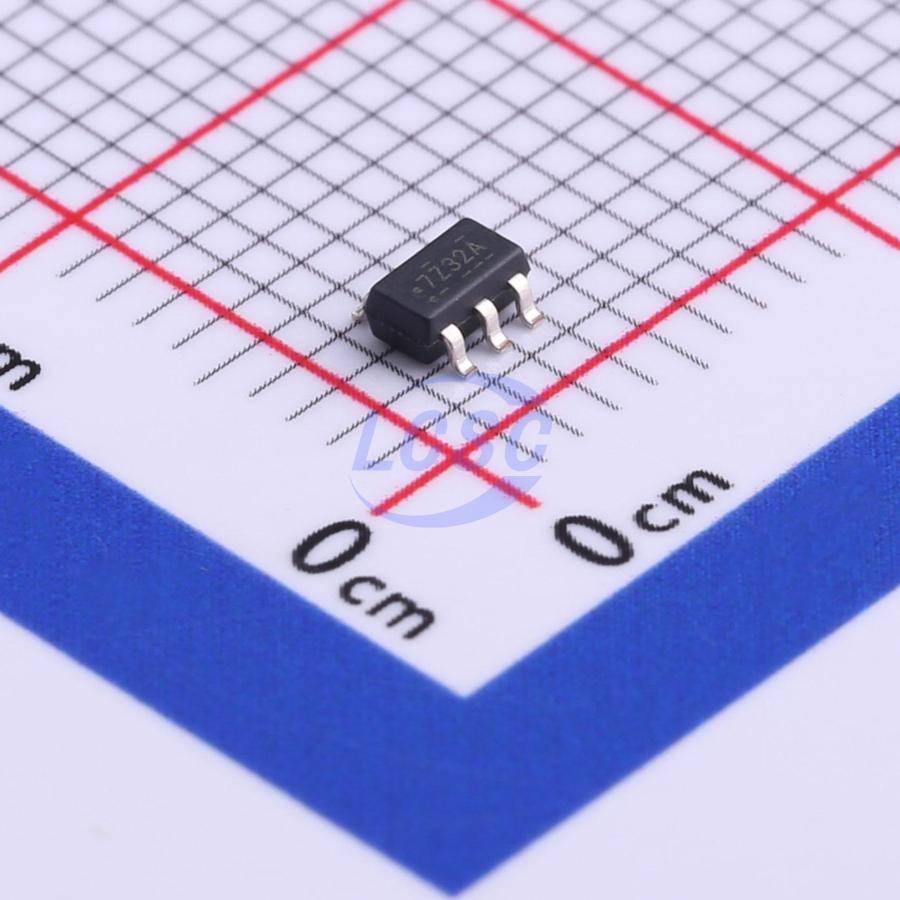

TinyLogic UHS Two-Input OR Gate

Manufacturer: onsemi
Manufacturer part #: NC7SZ32M5X
Store part #: C560162
Package / case: SOT-23-5
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

8,320 in stock

#C560162

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
10+	₹10.00	₹100.00
100+	₹7.71	₹771.00
300+	₹6.56	₹1,968.00
3,000+	₹5.70	₹17,100.00
6,000+	₹5.01	₹30,060.00
9,000+	₹4.68	₹42,120.00

Quantity (min 10, multiples of 10)

10 × ₹10.00

₹100.00

excl. GST

₹118.00 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

NC7SZ32M5X

₹100.00 for 10 + GST

Specifications

Features: Local shutdown mode;Overvoltage-tolerant input
Operating Temperature: -40℃~+85℃
Logic Family: 7SZ Series
Output Logic Level - High: 1.55V;1.7V;2.2V;2.9V;4.4V
Quiescent Current(Iq): 2uA
Voltage - Supply: 1.65V~5.5V
Number of Channels: 1;2
Current - Output High(IOH): 32mA
Output Logic Level - Low: 100mV
Propagation Delay: 4.5ns@5V,50pF
Current - Output Low(IOL): 32mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.041 g

Overview

Ultra-High Speed: tpp 2.4ns (Typical) into 50pF at 5V VCC High Output Drive: ±24mA at 3V Vcc Broad VCC Operating Range: 1.65V to 5.5V Matches Performance of LCX Operated at 3.3V VCC Power Down High-Impedance Inputs/Outputs Over-Voltage Tolerance inputs facilitate 5V to 3V Translation Proprietary Noise/EMI Reduction Circuitry Ultra-Small MicroPakTM Packages Space-Saving SOT23 and SC70 Packages The device is fabricated with advanced CMOS technology to achieve ultra-high speed with high output drive while maintaining low static power dissipation over a broad VCC operating range. The device is specified to operate over the 1.65V to 5.5V VCC operating range. The inputs and output are high impedance when VCC is 0V. Inputs tolerate voltages up to 6V, independent of VCC operating voltage.

Key features

Ultra-High Speed: tpp 2.4ns (Typical) into 50pF at 5V VCC
High Output Drive: ±24mA at 3V Vcc
Broad VCC Operating Range: 1.65V to 5.5V
Matches Performance of LCX Operated at 3.3V VCC
Power Down High-Impedance Inputs/Outputs
Over-Voltage Tolerance inputs facilitate 5V to 3V Translation
Proprietary Noise/EMI Reduction Circuitry
Ultra-Small MicroPakTM Packages
Space-Saving SOT23 and SC70 Packages
