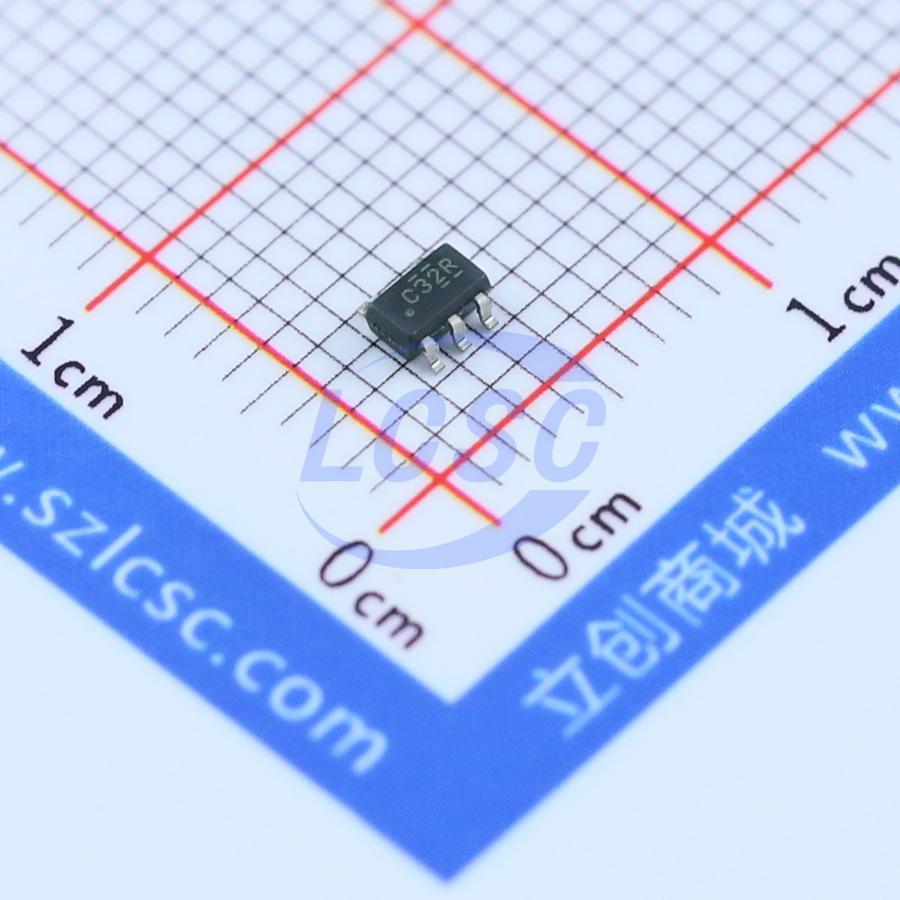

SN74LVC1G32DBVR
10uA 1.65V~5.5V 4ns@5V,50pF SOT-23-5 Gates and Inverters RoHS
SOT-23-5ROHS3 CompliantActive
SINGLE 2-INPUT POSITIVE-OR GATE
- Manufacturer
- TI
- Manufacturer part #
- SN74LVC1G32DBVR
- Store part #
- C10096
- Package / case
- SOT-23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,10,830 in stock
#C10096
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.45 | ₹94.50 |
| 100+ | ₹7.51 | ₹751.00 |
| 300+ | ₹6.56 | ₹1,968.00 |
| 3,000+ | ₹5.31 | ₹15,930.00 |
| 6,000+ | ₹4.72 | ₹28,320.00 |
| 9,000+ | ₹4.43 | ₹39,870.00 |
10 × ₹9.45
₹94.50
excl. GST
₹111.51 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74LVC1G32DBVR
₹94.50 for 10 + GST
Specifications
- Features
- Local shutdown mode
- Input Logic Level - High
- 1.7V~2V
- Operating Temperature
- -40℃~+85℃
- Logic Family
- 74LVC Series
- Output Logic Level - High
- 1.2V;1.9V;2.4V;3.8V
- Quiescent Current(Iq)
- 10uA
- Voltage - Supply
- 1.65V~5.5V
- Number of Channels
- 1;2
- Current - Output High(IOH)
- 32mA
- Output Logic Level - Low
- 450mV;300mV;400mV;550mV
- Propagation Delay
- 4ns@5V,50pF
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.033 g
Overview
This single 2-input positive-OR gate is designed for 1.65-V to 5.5-V VCC operation. The SN74LVC1G32 performs the Boolean function Υ = A + B or Υ = A(overline) • B(overline)(overline) in positive logic. NanoStar and NanoFree package technology is a major breakthrough in IC packaging concepts, using the die as the package. This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.
Key features
- Available in the Texas Instruments NanoStar and NanoFree Packages
- Supports 5-V VCC Operation
- Inputs Accept Voltages to 5.5 V
- Max tpd of 3.6 ns at 3.3 V
- Low Power Consumption, 10-μA Max ICC
- ±24-mA Output Drive at 3.3 V
- Ioff Supports Partial-Power-Down Mode Operation
- Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
- ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model (A114-A)
- 200-V Machine Model (A115-A)
- 1000-V Charged-Device Model (C101)
Alternatives
Similar parts — check the datasheet before substituting.
