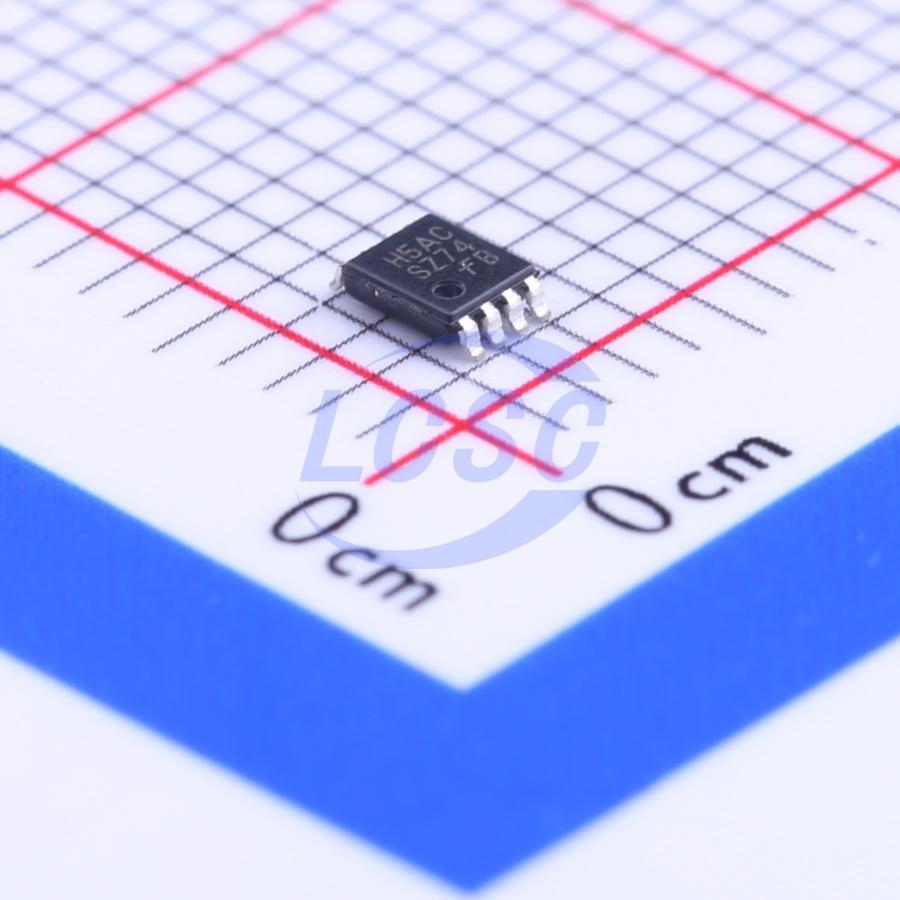

NC7SZ74K8X
1.65V~5.5V 1 1 5ns@5V,50pF US-8 Flip Flops RoHS
TinyLogic UHS D-Type, Flip-Flop with Preset and Clear
- Manufacturer
- onsemi
- Manufacturer part #
- NC7SZ74K8X
- Store part #
- C128370
- Package / case
- US-8
- Category
- Flip Flops
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,235 in stock
#C128370
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹37.59 | ₹187.95 |
| 50+ | ₹30.05 | ₹1,502.50 |
| 150+ | ₹26.82 | ₹4,023.00 |
| 500+ | ₹22.78 | ₹11,390.00 |
| 3,000+ | ₹18.57 | ₹55,710.00 |
| 6,000+ | ₹17.49 | ₹1,04,940.00 |
5 × ₹37.59
₹187.95
excl. GST
₹221.78 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NC7SZ74K8X
₹187.95 for 5 + GST
Specifications
- Voltage - Supply
- 1.65V~5.5V
- Number of Bits per Element
- 1
- Output Type
- Complementary
- Operating Temperature
- -40℃~+85℃
- Series
- 7SZ Series
- Synchronous/Asynchronous
- Asynchronous
- Number of Elements
- 1
- Current - Output High(IOH)
- 32mA
- Current - Output Low(IOL)
- 32mA
- Setup Time
- 1.5ns
- Quiescent Current
- 1uA
- Hold Time
- 500ps
- Propagation Delay
- 5ns@5V,50pF
- Trigger Type
- Rising Edge
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.04 g
Overview
The NC7SZ74 is a single, D-type, CMOS flip-flop with preset and clear from ultra high-speed series of TinyLogic. The device is fabricated with advanced CMOS technology to achieve ultra high speed with high output drive, while maintaining low static power dissipation over a very broad VCC operating range of 1.65V to 5.5V. The inputs and outputs are high impedance when VCC is 0V. Inputs tolerate voltages up to 7V, independent of VCC operating voltage. The signal level applied to the D input is transferred to the Q output during the positive-going transition of the CLK pulse.
Key features
- Ultra-High Speed: tPD 2.6ns (Typical) into 50pF at 5V VCC
- High Output Drive: ±24mA at 3V VCC
- Broad VCC Operating Range: 1.65V to 5.5V
- Power Down High-Impedance Inputs/Outputs
- Over-Voltage Tolerance Inputs Facilitate 5V to 3V Translation
- Proprietary Noise/EMI Reduction Circuitry
- Ultra-Small MicroPak Package
- Space-Saving US8 Surface Mount Package
