onsemiDatasheet (PDF)

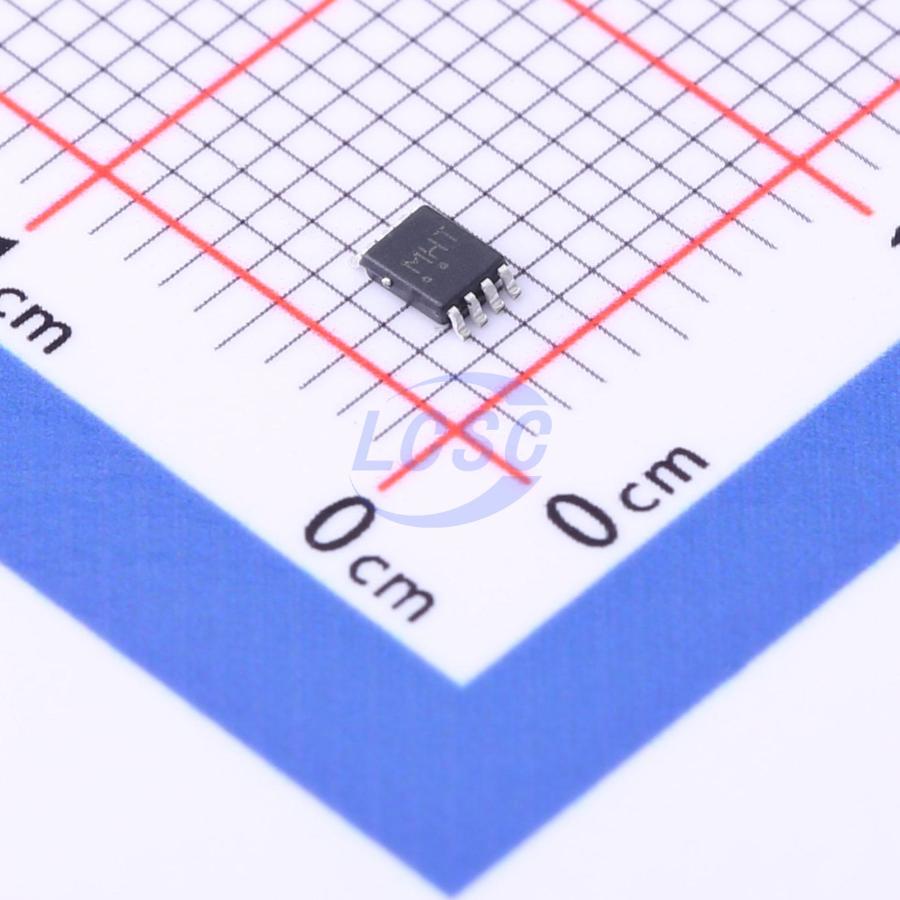

NLV17SZ74USG
1.65V~5.5V 1 1 5ns@5V,50pF US-8 Flip Flops RoHS
US-8ROHS3 CompliantActive
Edge triggered D Flip Flop
- Manufacturer
- onsemi
- Manufacturer part #
- NLV17SZ74USG
- Store part #
- C604209
- Package / case
- US-8
- Category
- Flip Flops
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,999 in stock
#C604209
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹81.27 | ₹81.27 |
| 10+ | ₹67.37 | ₹673.70 |
| 30+ | ₹60.20 | ₹1,806.00 |
| 100+ | ₹53.25 | ₹5,325.00 |
| 500+ | ₹43.46 | ₹21,730.00 |
| 1,000+ | ₹41.29 | ₹41,290.00 |
1 × ₹81.27
₹81.27
excl. GST
₹95.90 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NLV17SZ74USG
₹81.27 for 1 + GST
Specifications
- Voltage - Supply
- 1.65V~5.5V
- Number of Bits per Element
- 1
- Output Type
- Complementary
- Operating Temperature
- -55℃~+125℃
- Series
- 17SZ Series
- Synchronous/Asynchronous
- Asynchronous
- Number of Elements
- 1
- Current - Output High(IOH)
- 32mA
- Current - Output Low(IOL)
- 32mA
- Setup Time
- 1.5ns
- Quiescent Current
- 1uA
- Hold Time
- 500ps
- Propagation Delay
- 5ns@5V,50pF
- Trigger Type
- Rising Edge
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.039 g
Overview
The NL17SZ74 is a high performance, full function Edge triggered D Flip Flop, with all the features of a standard logic device such as the 74LCX74.
Key features
- Designed for 1.65 V to 5.5 V VCC Operation
- 2.6 ns tPD at VCC = 5 V (typ)
- Inputs/Outputs Overvoltage Tolerant up to 5.5 V
- IOFF Supports Partial Power Down Protection
- Source/Sink 24 mA at 3.0 V
- Available in US8, UDFN8 and UQFN8 Packages
- Chip Complexity < 100 FETs
- NLV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
- These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
