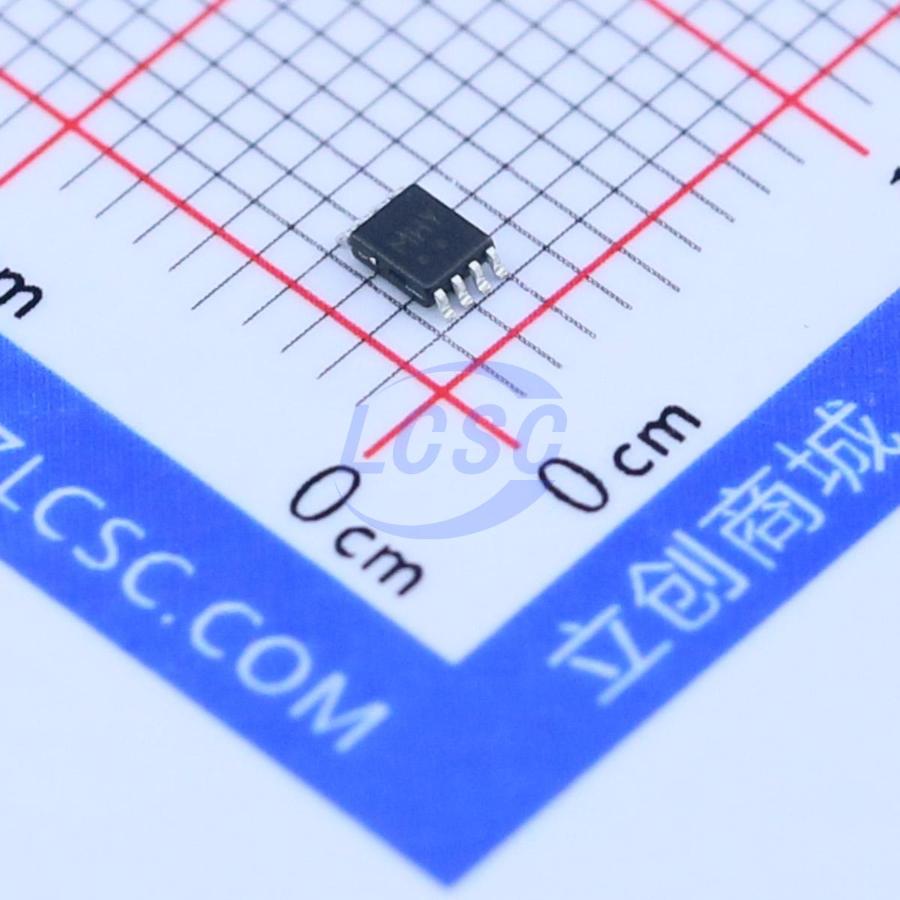

NL17SZ74USG
1.65V~5.5V 1 1 5ns@5V,50pF US-8 Flip Flops RoHS
US-8ROHS3 CompliantActive
Single D Flip
- Manufacturer
- onsemi
- Manufacturer part #
- NL17SZ74USG
- Store part #
- C94374
- Package / case
- US-8
- Category
- Flip Flops
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,360 in stock
#C94374
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹28.25 | ₹141.25 |
| 50+ | ₹22.15 | ₹1,107.50 |
| 150+ | ₹19.53 | ₹2,929.50 |
| 500+ | ₹16.26 | ₹8,130.00 |
| 3,000+ | ₹14.80 | ₹44,400.00 |
| 6,000+ | ₹13.93 | ₹83,580.00 |
5 × ₹28.25
₹141.25
excl. GST
₹166.68 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NL17SZ74USG
₹141.25 for 5 + GST
Specifications
- Voltage - Supply
- 1.65V~5.5V
- Number of Bits per Element
- 1
- Output Type
- Complementary
- Operating Temperature
- -55℃~+125℃
- Series
- 17SZ Series
- Synchronous/Asynchronous
- Asynchronous
- Number of Elements
- 1
- Current - Output High(IOH)
- 32mA
- Current - Output Low(IOL)
- 32mA
- Setup Time
- 6.5ns;3.5ns;2ns;1.5ns
- Quiescent Current
- 1uA
- Hold Time
- 500ps
- Propagation Delay
- 5ns@5V,50pF
- Trigger Type
- Rising Edge
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.3 g
Overview
The NL17SZ74 is a high performance, full function Edge triggered D Flip Flop, with all the features of a standard logic device such as the 74LCX74.
Key features
- Extremely High Speed: tpD 2.6 ns (typical) at VCC = 5.0 V
- Designed for 1.65 V to 5.5 V VCC Operation
- 5.0 V Tolerant Inputs − Interface Capability with 5.0 V TTL Logic
- LVTTL Compatible
- LVCMOS Compatible
- 24 mA Balanced Output Sink and Source Capability
- Near Zero Static Supply Current [0 μA) Substantially Reduces System Power Requirements
- Replacement for NC7SZ74
- Tiny Ultra Small Package Only 2.1×3.0 mm
- High ESD Ratings: 4000 V Human Body Model 200 V Machine Model
- Chip Complexity: FET = 64
- NLV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
- These Devices are Pb−Free and are RoHS Compliant
