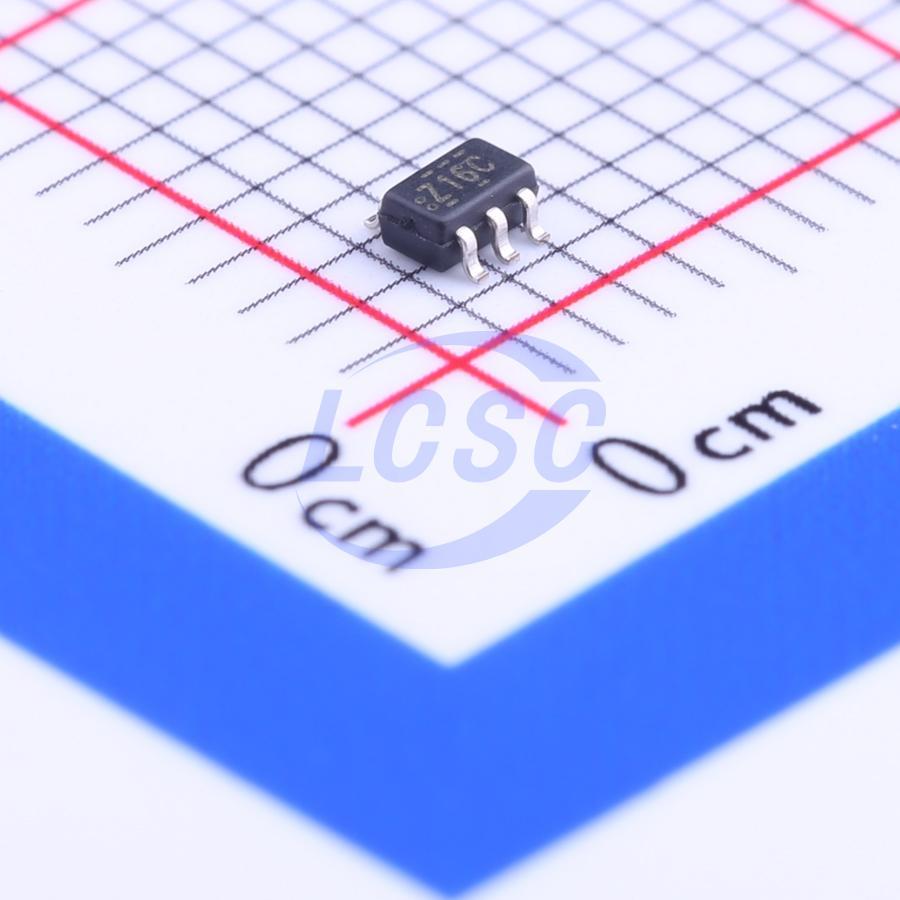

NC7WZ16P6X
1.65V~5.5V 1 2 2.4ns@5V,50pF SC-70-6(SOT-363) Buffers, Drivers, Receivers, Transceivers RoHS
SC-70-6(SOT-363)ROHS3 CompliantActive
TinyLogic UHS Dual Buffer
- Manufacturer
- onsemi
- Manufacturer part #
- NC7WZ16P6X
- Store part #
- C114148
- Package / case
- SC-70-6(SOT-363)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,550 in stock
#C114148
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.62 | ₹66.20 |
| 100+ | ₹5.20 | ₹520.00 |
| 300+ | ₹4.48 | ₹1,344.00 |
| 3,000+ | ₹3.96 | ₹11,880.00 |
| 6,000+ | ₹3.53 | ₹21,180.00 |
| 9,000+ | ₹3.32 | ₹29,880.00 |
10 × ₹6.62
₹66.20
excl. GST
₹78.12 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NC7WZ16P6X
₹66.20 for 10 + GST
Specifications
- Voltage - Supply
- 1.65V~5.5V
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 10uA
- Function
- Power-off isolation;Level shifting
- Current - Output High(IOH)
- 32mA
- Series
- TinyLogic
- Current - Output Low(IOL)
- 32mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 2
- Propagation Delay
- 2.4ns@5V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.032 g
Overview
Ultra-High Speed: tPD 2.4ns (Typical) into 50pF at 5V VCC High Output Drive: ±24mA at 3V VCC Broad VCC Operating Range: 1.65V to 5.5V Matches Performance of LCX when Operated at 3.3V VCC Power Down High-Impedance Inputs/Outputs Over-Voltage Tolerance Inputs Facilitate 5V to 3V Translation Proprietary Noise/EMI Reduction Circuitry Ultra-Small MicroPak™ Packages Space-Saving SC70 Package The NC7WZ16 is a dual buffer. The device is fabricated with advanced CMOS technology to achieve ultra-high speed with high output drive while maintaining low static power dissipation over a very broad Vcc operating range. The device is specified to operate over the 1.65V to 5.5V VCC range. The inputs and outputs are high impedance when VCC is 0V. Inputs tolerate voltages up to 7V independent of VCC operating voltage.
Key features
- Ultra-High Speed: tPD 2.4ns (Typical) into 50pF at 5V VCC
- High Output Drive: ±24mA at 3V VCC
- Broad VCC Operating Range: 1.65V to 5.5V
- Matches Performance of LCX when Operated at 3.3V VCC
- Power Down High-Impedance Inputs/Outputs
- Over-Voltage Tolerance Inputs Facilitate 5V to 3V Translation
- Proprietary Noise/EMI Reduction Circuitry
- Ultra-Small MicroPak™ Packages
- Space-Saving SC70 Package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NC7WZ16P6X-L22347#C5207819onsemi · SC-70-6 | onsemi | SC-70-6 | 200 | ₹28.66 · 200 in stock | View |
 | SN74LVC2G17DCK3#C1879783TI · SC-70-6 | TI | SC-70-6 | 478 | ₹61.33 · 478 in stock | View |
 | 74LVC2G34GW-Q100,1#C548651Nexperia · SOT-363 | Nexperia | SOT-363 | 385 | ₹31.49 · 385 in stock | View |
 | NL27WZ16DFT2G#C152463onsemi · SC-70-6(SOT-363) | onsemi | SC-70-6(SOT-363) | 435 | ₹9.84 · 435 in stock | View |
 | SN74LVC2G34DCK3#C1850265TI · SC-70-6 | TI | SC-70-6 | 90 | ₹108.01 · 90 in stock | View |
