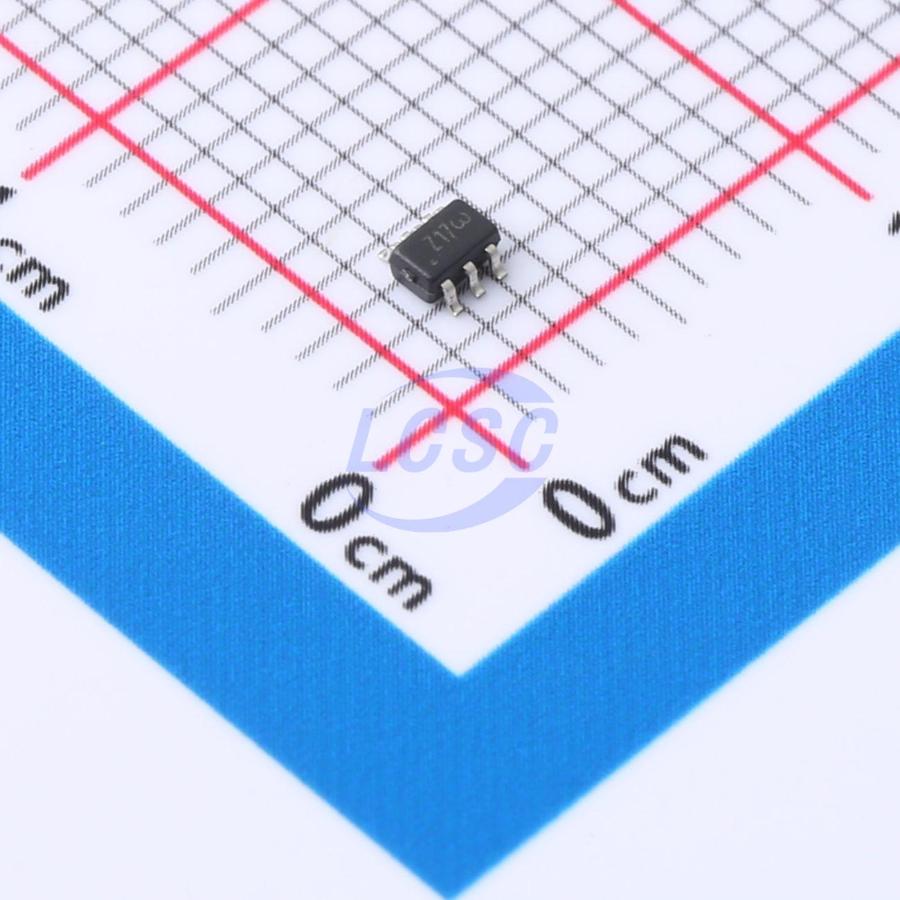

NC7WZ17P6X-L22347

The NC7WZ17 is a dual buffer with Schmitt trigger inputs from onsemi’s Ultra−High Speed (UHS) series of TinyLogic products. The device is fabricated with advanced CMOS technology to achieve ultra−high speed with high output drive, while maintaining low static power dissipation over a very broad VCC operating range. The device is specified to operate over the 1.65 V to 5.5 V VCC range. The inputs and outputs are high−impedance when VCC is 0 V. Inputs tolerate voltages up to 5.5 V, independent of VCC operating voltage. Schmitt trigger inputs achieve 1 V typical hysteresis between the positive− and negative−going input threshold voltage at 5 V.

Key features

• Ultra−High Speed: tpD = 3.6 ns (Typical) into 50 pF at 5 V VCC
• High Output Drive: ±24 mA at 3 V VCC
• Broad VCC Operating Range: 1.65 V to 5.5 V
• Matches Performance of LCX when Operated at 3.3 V VCC
• Power Down High−Impedance Inputs / Outputs
• Over−Voltage Tolerance Inputs Facilitate 5 V to 3 V Translation
• Proprietary Noise / EMI Reduction Circuitry
• Ultra−Small MicroPak Packages
• Space−Saving SC−88 Package
• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
