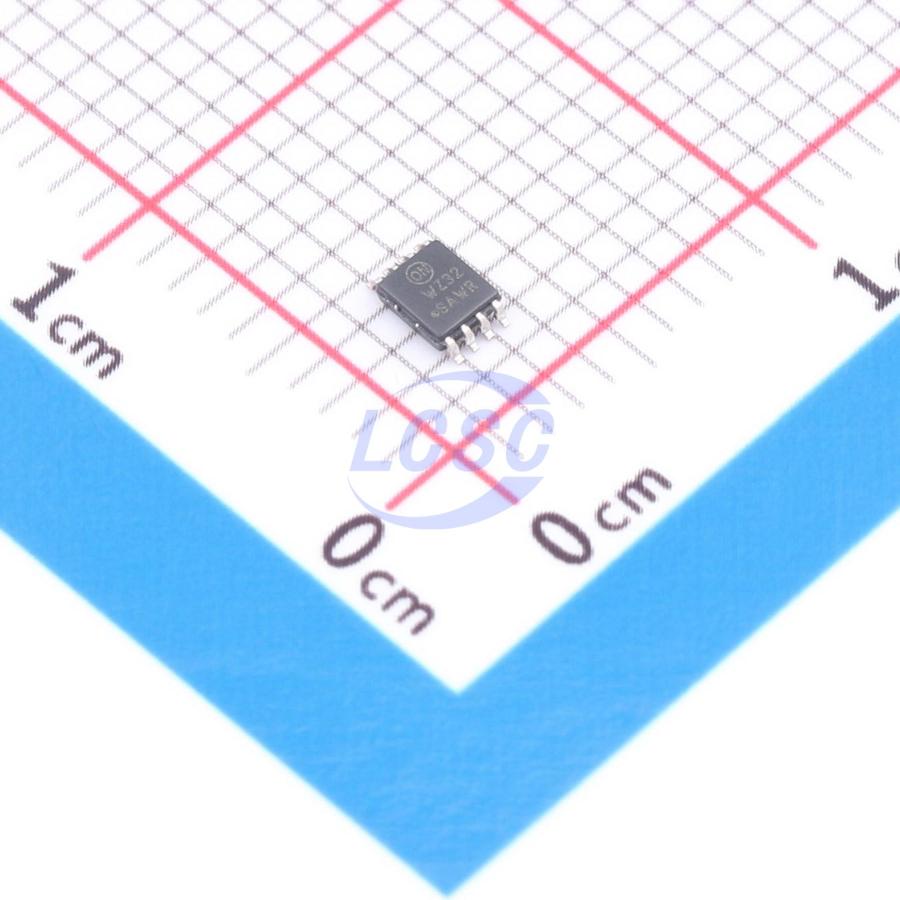

TinyLogic UHS Dual 2-Input OR Gate
- Manufacturer
- onsemi
- Manufacturer part #
- NC7WZ32K8X
- Store part #
- C457621
- Package / case
- US-8
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,535 in stock
#C457621
Stock & price checked 42 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.78 | ₹78.90 |
| 50+ | ₹13.90 | ₹695.00 |
| 150+ | ₹13.11 | ₹1,966.50 |
| 500+ | ₹12.11 | ₹6,055.00 |
| 3,000+ | ₹11.67 | ₹35,010.00 |
| 6,000+ | ₹11.40 | ₹68,400.00 |
5 × ₹15.78
₹78.90
excl. GST
₹93.10 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NC7WZ32K8X
₹78.90 for 5 + GST
Specifications
- Logic Family
- 7WZ Series
- Voltage - Supply
- 1.65V~5.5V
- Output Logic Level - Low
- 100mV;240mV;300mV;400mV;550mV
- Propagation Delay
- 3.7ns@5V,50pF
- Features
- Local shutdown mode;Overvoltage-tolerant input
- Operating Temperature
- -40℃~+85℃
- Output Logic Level - High
- 1.29V;1.55V;1.9V;2.2V;2.3V;2.4V;2.9V;3.8V;4.4V
- Quiescent Current(Iq)
- 1uA
- Number of Channels
- 2;2
- Current - Output High(IOH)
- 32mA
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Discontinued
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.036 g
Overview
The NC7WZ32 is a dual 2-Input OR Gate from the Ultra High Speed Series of TinyLogic. The device is fabricated with advanced CMOS technology to achieve ultra high speed with high output drive while maintaining low static power dissipation over a very broad VCC operating range. The device is specified to operate over the 1.65V to 5.5V VCC range. The inputs and output are high impedance when VCC is 0V. Inputs tolerate voltages up to 7V independent of VCC operating voltage.
Key features
- Space saving US8 surface mount package
- MicroPak Pb-Free leadless package
- Ultra high speed tPD 2.4 ns Typ into 50 pF at 5V VCC
- High output drive ±24 mA at 3V VCC
- Broad VCC operating range 1.65V to 5.5V
- Matches the performance of LCX when operated at 3.3V VCC
- Power down high impedance inputs/output
- Overvoltage tolerant inputs facilitate 5V to 3V translation
- Proprietary noise/EMI reduction circuitry implemented
