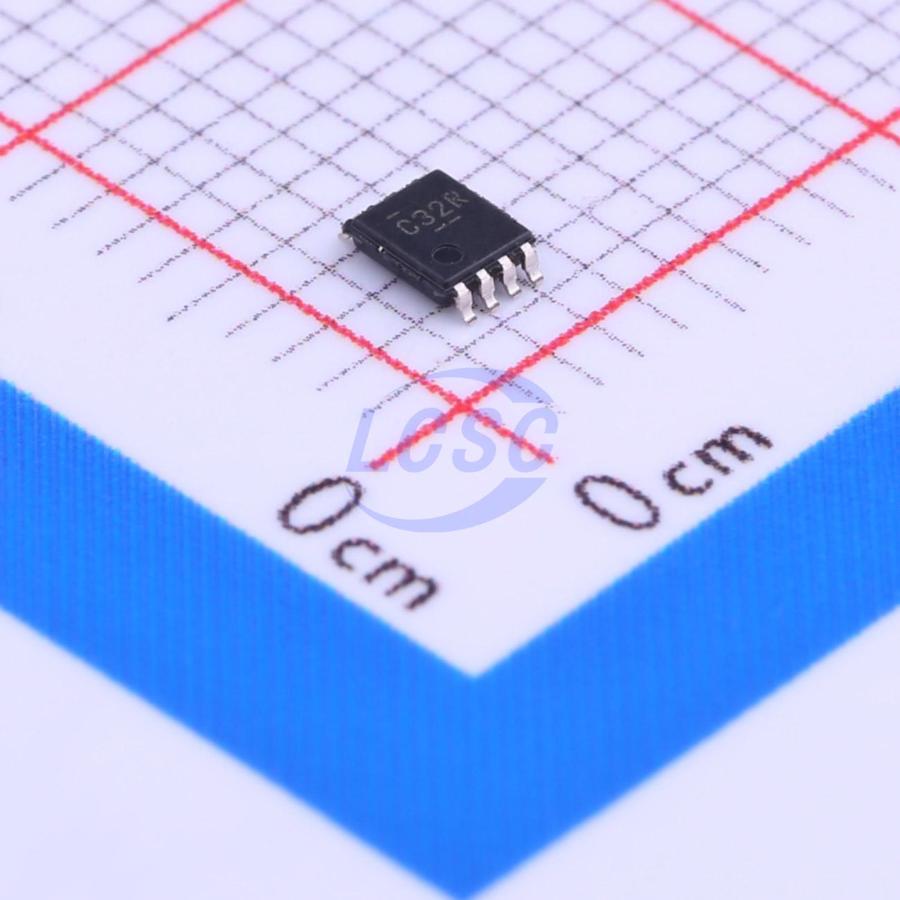

SN74LVC2G32DCUR

This dual 2-input positive-OR gate is designed for 1.65-V to 5.5-V VCC operation. The SN74LVC2G32 device performs the Boolean function Y = A + B or Y = (A • B)' in positive logic. NanoFree package technology is a major breakthrough in IC packaging concepts, using the die as the package. This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.

Applications

• Down Translation Logical OR

Key features

• Available in the NanoFree Package
• Supports 5-V VCC Operation
• Inputs Accept Voltages to 5.5 V
• Maximum tpd of 3.8 ns at 3.3 V
• Low Power Consumption, 10-μA Maximum ICC
• ±24-mA Output Drive at 3.3 V
• Typical VOLP (Output Ground Bounce) < 0.8 V at VCC = 3.3 V, TA = 25℃
• Typical VOHV (Output VOH Undershoot) > 2 V at VCC = 3.3 V, TA = 25℃
• Supports Live Insertion, Partial-Power-Down Mode, and Back-Drive Protection
• Can Be Used as a Down Translator to Translate Inputs From a Maximum of 5.5 V Down to the VCC Level
• Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
• ESD Protection Exceeds JESD 22 2000-V Human Body Model (A114-A) 1000-V Charged-Device Model (C101)
