onsemiDatasheet (PDF)

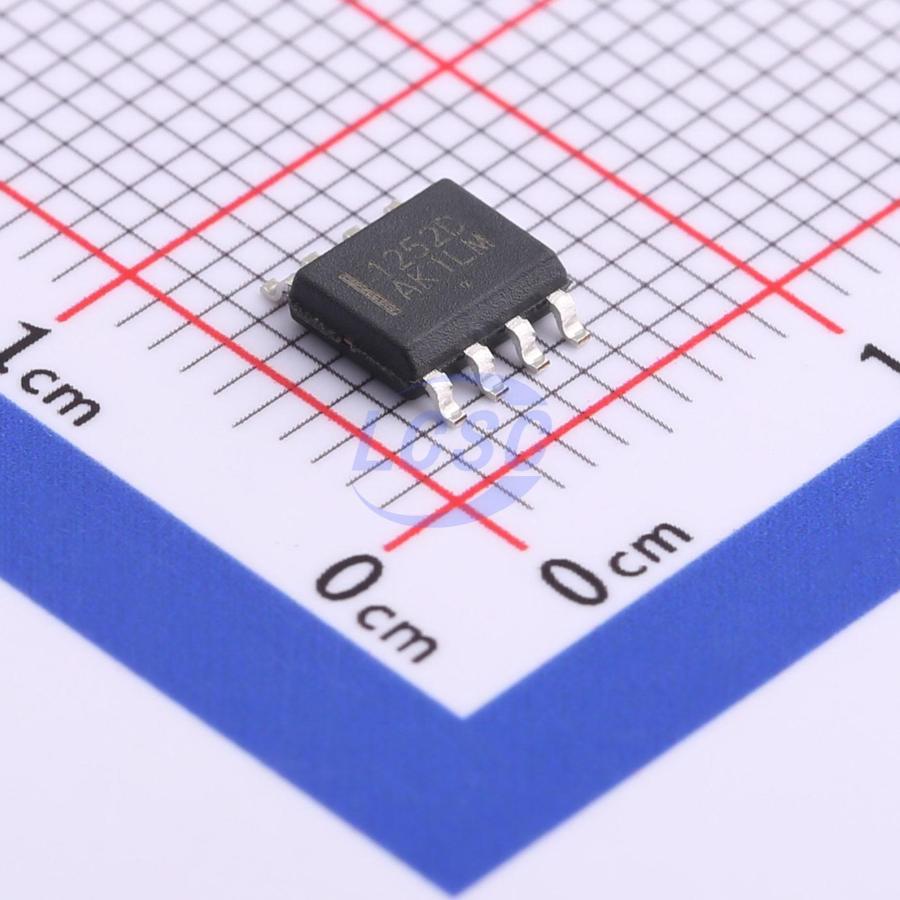

NCP1252DDR2G
100kHz 9V~28V SOIC-8 AC DC Converters, Offline Switchers RoHS
SOIC-8ROHS3 CompliantActive
Current Mode PwM Controller for Forward and Flyback Applications
- Manufacturer
- onsemi
- Manufacturer part #
- NCP1252DDR2G
- Store part #
- C603530
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,867 in stock
#C603530
Stock & price checked 26 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹85.84 | ₹85.84 |
| 10+ | ₹69.97 | ₹699.70 |
| 30+ | ₹62.15 | ₹1,864.50 |
| 100+ | ₹54.34 | ₹5,434.00 |
| 500+ | ₹49.55 | ₹24,775.00 |
| 1,000+ | ₹47.16 | ₹47,160.00 |
1 × ₹85.84
₹85.84
excl. GST
₹101.29 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
NCP1252DDR2G
₹85.84 for 1 + GST
Specifications
- Operating Temperature
- -25℃~+125℃
- Output Current
- 500mA;800mA
- Frequency - Switching
- 100kHz
- Voltage - Supply
- 9V~28V
- Features
- Adjustable soft-start;Brown-in/Brown-out detection;EMI optimization (spread spectrum);Leading edge blanking;Slope compensation;Under-voltage lockout;Over Voltage Protection;Short Circuit Protection;Over Current Protection;Under Voltage Protection
- Topology
- Forward;Flyback
- Duty Cycle(Max)
- 47.5%
- Working Mode
- PWM Modulation
- Feedback System
- Secondary-Side Feedback
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.221 g
Overview
The NCP1252 controller provides everything needed to build a cost-effective and reliable AC-DC switching power supply, dedicated for ATx power supplies. Thanks to an internally fixed timer, the NCP1252 can detect output overload without relying on an auxiliary Vcc. The Brown-Out input provides protection against low input voltage and enhances converter safety. Finally, the SOIC-8 package saves PCB space, making it an ideal choice for cost-sensitive designs.
Applications
- Power Supplies - PC Silver Box, Game Adapters
- Flyback and Forward Converters
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NCP1252EDR2G#C904430onsemi · SOIC-8 | onsemi | SOIC-8 | 18,546 | ₹73.16 · 18,546 in stock | View |
 | NCP1252DRG#C5145243HANSCHIP semiconductor · SOP-8 | HANSCHIP semiconductor | SOP-8 | 1,865 | ₹21.67 · 1,865 in stock | View |
 | NCP1252ADR2G#C80800onsemi · SOIC-8 | onsemi | SOIC-8 | 22,378 | ₹75.56 · 22,378 in stock | View |
 | NCP1252CDR2G#C904429onsemi · SOIC-8 | onsemi | SOIC-8 | 120 | ₹201.00 · 120 in stock | View |
