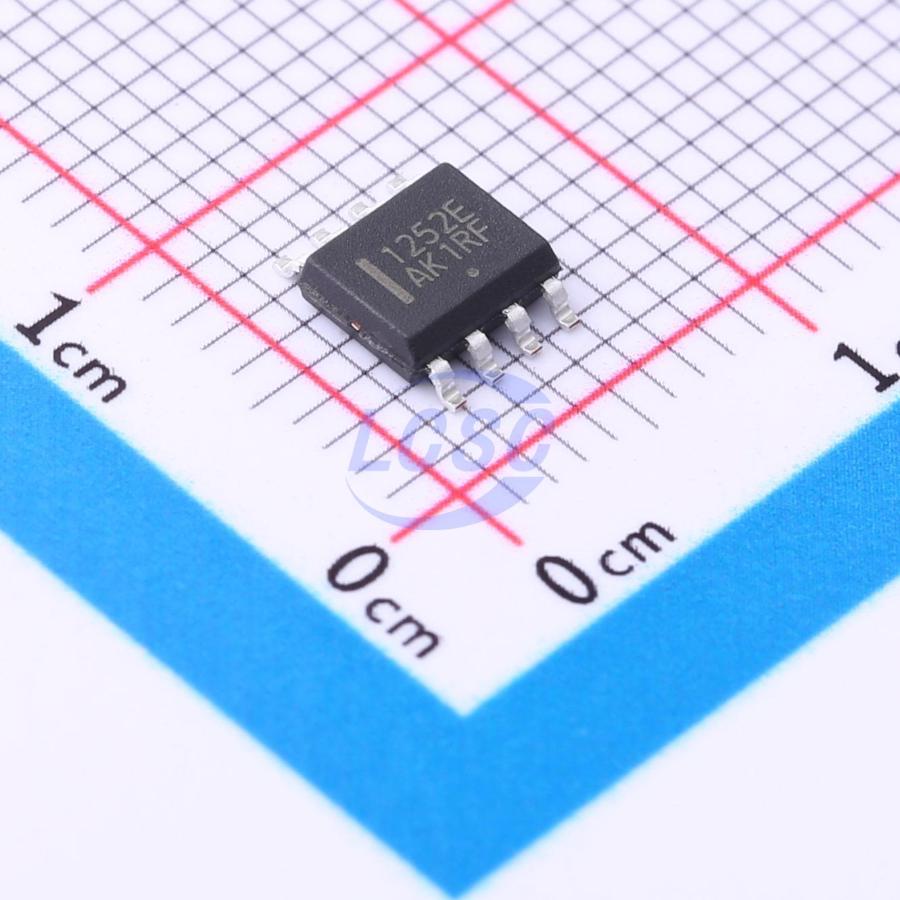

NCP1252EDR2G

The NCP1252 controller offers everything needed to build cost− effective and reliable ac−dc switching supplies dedicated to ATX power supplies. Thanks to the use of an internally fixed timer, NCP1252 detects an output overload without relying on the auxiliary Vcc. A Brown−Out input offers protection against low input voltages and improves the converter safety. Finally a SOIC−8 package saves PCB space and represents a solution of choice in cost sensitive project.

Applications

• Power Supplies for PC Silver Boxes, Games Adapter...
• Flyback and Forward Converter

Key features

• Peak Current Mode Control
• Adjustable Switching Frequency up to 500 kHz
• Jittering Frequency ±5% of the Switching Frequency
• Latched Primary Over Current Protection with 10 ms Fixed Delay
• Delay Extended to 150 ms in E Version
• Delayed Operation Upon Start−up via an Internal Fixed Timer (A, B and C versions only)
• Adjustable Soft−start Timer
• Auto−recovery Brown−Out Detection
• UC384X−like UVLO Thresholds
• Vcc Range from 9 V to 28 V with Auto−recovery UVLO
• Internal 160 ns Leading Edge Blanking
• Adjustable Internal Ramp Compensation
• +500 mA / -800 mA Source / Sink Capability
• Maximum 50% Duty Cycle: A Version
• Maximum 80% Duty Cycle: B Version
• Maximum 65% Duty Cycle: C Version
• Maximum 47.5% Duty Cycle: D & E Versions
• Ready for Updated No Load Regulation Specifications
• SOIC−8 and PDIP−8 Packages
• These are Pb −Free Devices
