onsemiDatasheet (PDF)

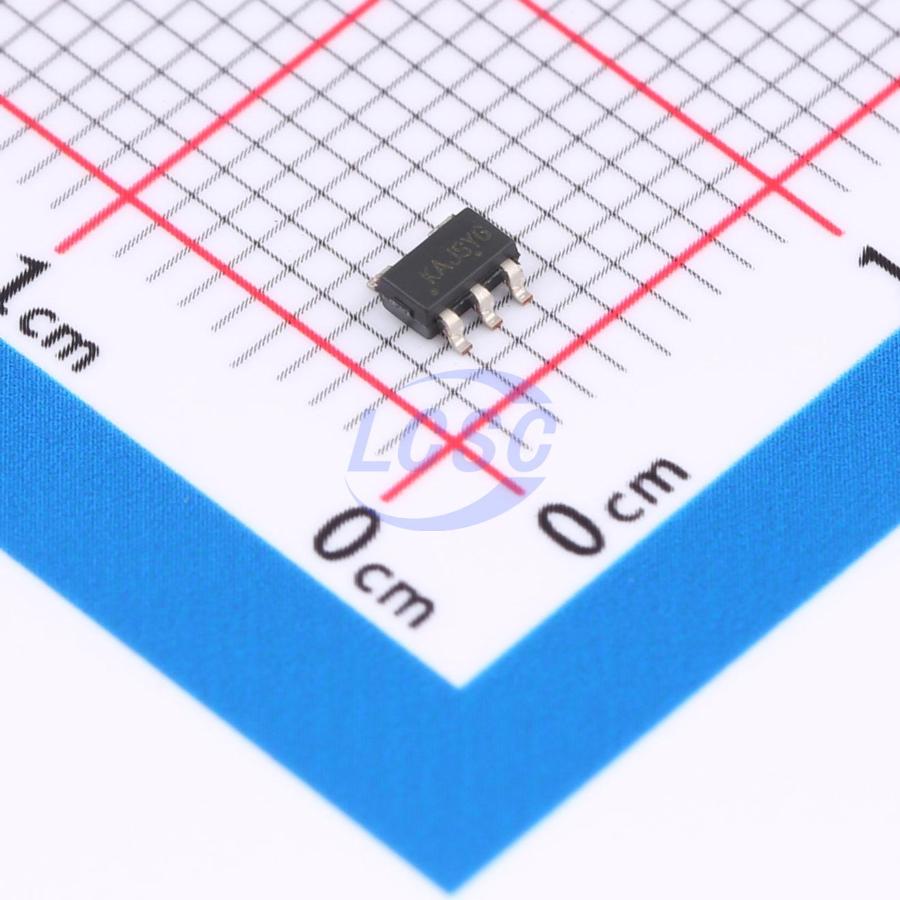

NCP163ASN500T1G
5V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23-5ROHS3 CompliantActive
LDO Regulator - Ultra-Low Noise, High PSRR, RF and Analog Circuits
- Manufacturer
- onsemi
- Manufacturer part #
- NCP163ASN500T1G
- Store part #
- C603657
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,018 in stock
#C603657
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹33.87 | ₹33.87 |
| 10+ | ₹29.32 | ₹293.20 |
| 30+ | ₹27.36 | ₹820.80 |
| 100+ | ₹24.98 | ₹2,498.00 |
| 500+ | ₹23.88 | ₹11,940.00 |
| 1,000+ | ₹23.23 | ₹23,230.00 |
1 × ₹33.87
₹33.87
excl. GST
₹39.97 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NCP163ASN500T1G
₹33.87 for 1 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 12uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 250mA
- Features
- Enable control;Output discharge;Short Circuit Protection;Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.074 g
Overview
The NCP163 is a next generation of high PSRR, ultra−low noise LDO capable of supplying 250 mA output current. Designed to meet the requirements of RF and sensitive analog circuits, the NCP163 device provides ultra−low noise, high PSRR and low quiescent current. The device also offer excelent load/line transients. The NCP163 is designed to work with a 1 μF input and a 1 μF output ceramic capacitor. It is available in two thickness ultra−small 0.35P, WLCSP Packages, XDFN4 0.65P and industry standard SOT23−5L.
Applications
- Battery−powered Equipment
- Wireless LAN Devices
- Smartphones, Tablets
- Cameras, DVRs, STB and Camcorders
Key features
- Operating Input Voltage Range: 2.2 V to 5.5 V
- Available in Fixed Voltage Option: 1.2 V to 5.3 V
- ±2% Accuracy Over Load/Temperature
- Ultra Low Quiescent Current Typ. 12 μA
- Standby Current: Typ. 0.1 μA
- Very Low Dropout: 80 mV at 250 mA
- Ultra High PSRR: Typ. 92 dB at 20 mA, f = 1 kHz
- Ultra Low Noise: 6.5 VRMS
- Stable with a 1 μF Small Case Size Ceramic Capacitors
- Available in − WLCSP4: 0.65 mm x 0.65 mm x 0.33 mm, WLCSP4: 0.65 mm x 0.65 mm x 0.4 mm, XDFN4: 1 mm x 1 mm x 0.4 mm, SOT23−5: 2.9 mm x 2.8 mm x 1.2 mm
- These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SGM2033-5.0XN5G/TR#C5139784SGMICRO · SOT-23-5 | SGMICRO | SOT-23-5 | 7,860 | ₹38.72 · 7,860 in stock | View |
 | NCP161ASN500T1G#C603635onsemi · SOT-23-5 | onsemi | SOT-23-5 | 169 | ₹78.16 · 169 in stock | View |
 | SGM2211-5.0XN5G/TR#C3294701SGMICRO · SOT-23-5 | SGMICRO | SOT-23-5 | 2,755 | ₹291.72 · 2,755 in stock | View |
 | ST732M50R#C3747922ST · SOT-23-5L | ST | SOT-23-5L | 96 | ₹200.50 · 96 in stock | View |
 | IBSP3032F050ST5AR00#C18164958Inbisen · SOT23-5 | Inbisen | SOT23-5 | 221 | ₹157.93 · 221 in stock | View |
