onsemiDatasheet (PDF)

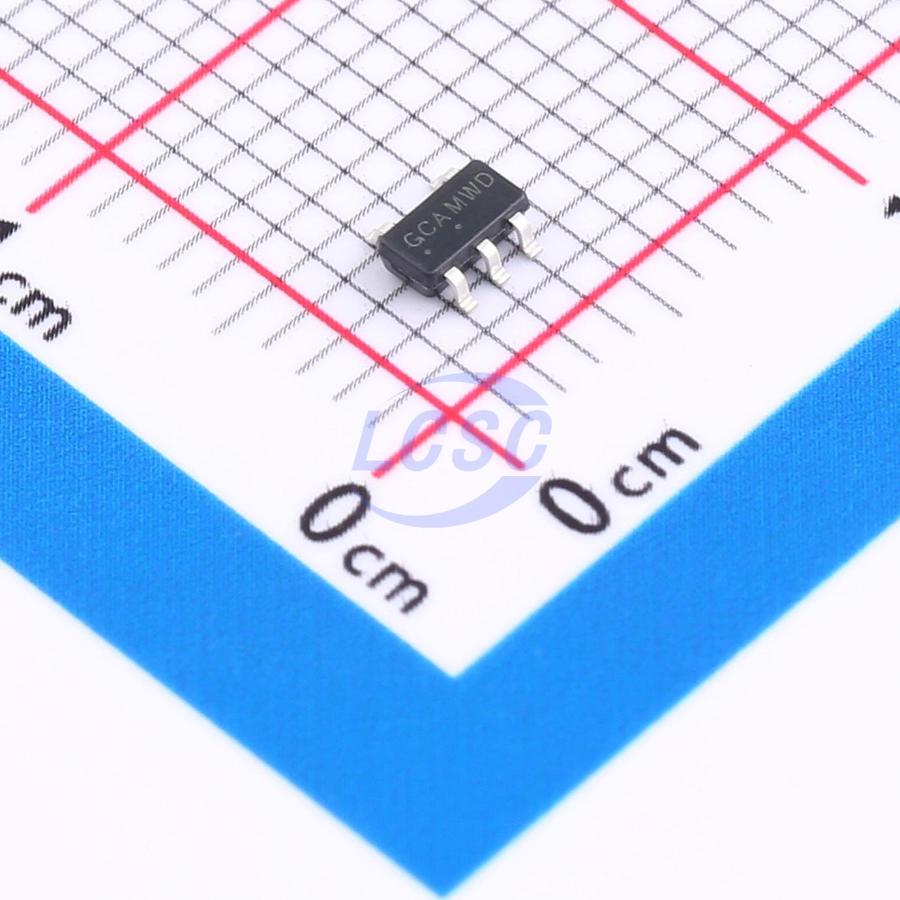

NCP170ASN280T2G
2.8V Positive Fixed TSOP-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TSOP-5ROHS3 CompliantActive
LDO Regulator Ultra-Low IQ, CMos 150 mA
- Manufacturer
- onsemi
- Manufacturer part #
- NCP170ASN280T2G
- Store part #
- C603669
- Package / case
- TSOP-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
13 in stock
#C603669
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹35.87 | ₹35.87 |
| 10+ | ₹34.99 | ₹349.90 |
| 30+ | ₹34.35 | ₹1,030.50 |
| 100+ | ₹33.91 | ₹3,391.00 |
1 × ₹35.87
₹35.87
excl. GST
₹42.33 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NCP170ASN280T2G
₹35.87 for 1 + GST
Specifications
- Output Voltage
- 2.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 500nA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 150mA
- Features
- Enable control;Over Current Protection;Thermal shutdown;Output discharge
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.17 g
Overview
The NCP170 series of CMOS low dropout regulators are designed specifically for portable battery-powered applications which require ultra-low quiescent current. The ultra-low consumption of typ. 500 nA ensures long battery life and dynamic transient boost feature improves device transient response for wireless communication applications. The device is available in small 1×1 mm XDFN4, SOT-563 and TSOP-5 packages.
Applications
- Battery Powered Equipments
- Portable Communication Equipments
- Cameras, Image Sensors and Camcorders
Key features
- Operating Input Voltage Range: 2.2 V to 5.5 V
- Output Voltage Range: 1.2 V to 3.6 V (0.1 V Steps)
- Ultra-Low Quiescent Current Typ. 0.5 μA
- Low Dropout: 170 mV Typ. at 150 mA
- High Output Voltage Accuracy ±1%
- Stable with Ceramic Capacitors 1 μF
- Over-Current Protection
- Thermal Shutdown Protection
- NCP170A for Active Discharge Option
- Available in Small 1×1 mm XDFN4, SOT−563 and TSOP-5 Packages
- These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MG6226T5-28#C42411003Megain · SOT-23-5 | Megain | SOT-23-5 | 1,080 | ₹3.44 · 1,080 in stock | View |
 | TPS78228DDCR#C93018TI · TSOT-23-5 | TI | TSOT-23-5 | 779 | ₹125.61 · 779 in stock | View |
 | AP7351D-28W5-7#C6500939DIODES · SOT-25 | DIODES | SOT-25 | 30 | ₹26.39 · 30 in stock | View |
 | MG6229T5-28#C48678132Megain · SOT-23-5 | Megain | SOT-23-5 | 8,200 | ₹4.42 · 8,200 in stock | View |
 | MD5128#C919725Mingda Microelectronics · SOT-23-5L | Mingda Microelectronics | SOT-23-5L | 55 | ₹13.31 · 55 in stock | View |
