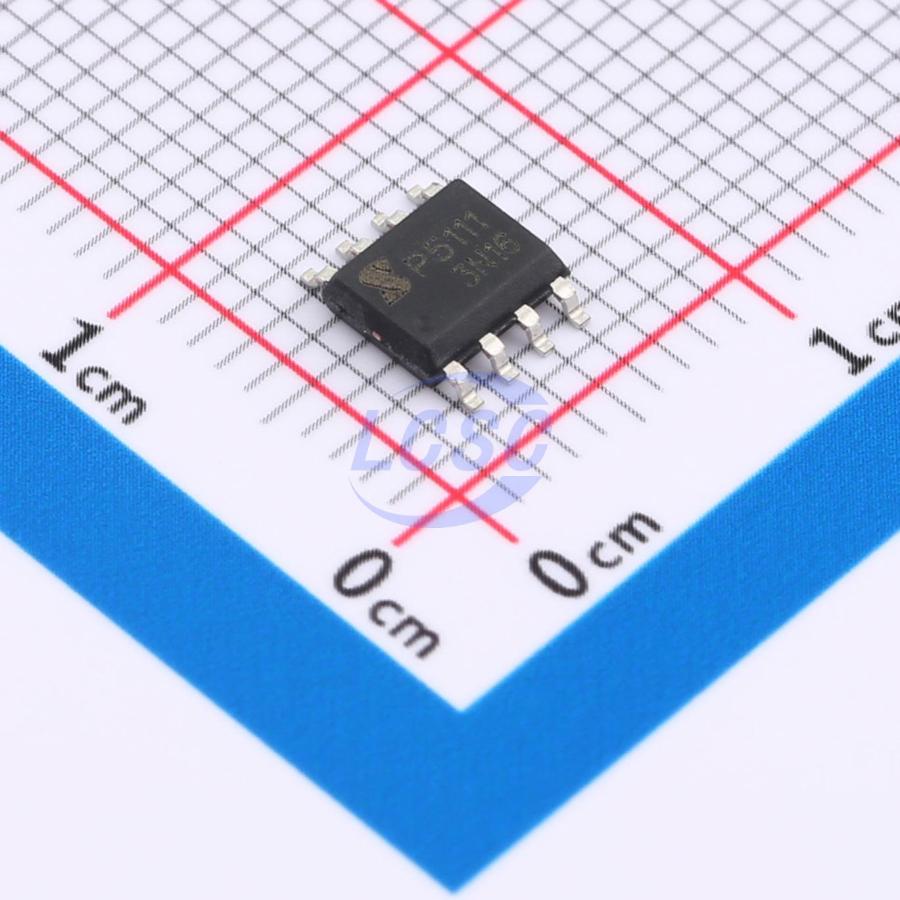

NCP5111DR2G-JSM
Half-Bridge Gate Driver IC MOSFET SOP-8
Single-phase high-side and low-side power MOSFET/IGBT driver IC
- Manufacturer
- JSMSEMI
- Manufacturer part #
- NCP5111DR2G-JSM
- Store part #
- C7498967
- Package / case
- SOP-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,080 in stock
#C7498967
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹91.45 | ₹91.45 |
| 10+ | ₹73.53 | ₹735.30 |
| 30+ | ₹64.67 | ₹1,940.10 |
| 100+ | ₹55.82 | ₹5,582.00 |
| 500+ | ₹50.67 | ₹25,335.00 |
| 1,000+ | ₹47.79 | ₹47,790.00 |
1 × ₹91.45
₹91.45
excl. GST
₹107.91 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
NCP5111DR2G-JSM
₹91.45 for 1 + GST
Specifications
- Quiescent Current
- 120uA
- Voltage - Supply
- 10V~20V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Half-Bridge
- Current - Output Low(IOL)
- 600mA
- Rise Time
- 75ns
- Fall Time
- 35ns
- Features
- Enable shutdown;Dead-time control;Interleaved conduction protection
- Current - Output High(IOH)
- 300mA
- Load Type
- MOSFET
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.127 g
Overview
The NCP5111 is a high-voltage, high-speed power MOSFET high- and low-side gate driver IC. It features independent high-side and low-side referenced output channels. A high-voltage compatible process enables monolithic integration of both high- and low-side gate drive circuits, with logic inputs compatible with CMOS or LSTTL logic output levels as low as 3.3V. The floating channel supports high-side N-channel power MOSFET driving, with a maximum floating supply offset voltage of 700V. Available in SOP-8 package, operating over a -40°C to 125°C temperature range.
Applications
- Motor Control
- Air Conditioner/Washing Machine
- General-Purpose Inverter
- Inverter Drive
Key features
- Bootstrap floating high-side channel
- Maximum operating voltage +700V
- Compatible with 3.3V, 5V and 15V input logic
- dV/dt immunity up to ±50V/ns
- Vs negative bias capability down to -9V
- Integrated VCC undervoltage lockout
- UVLO positive-going threshold 8.9V
- UVLO negative-going threshold 8.2V
- Propagation delay characteristics
- Turn-on/turn-off propagation delay Ton/Toff = 650ns/130ns
- Delay matching 50ns
- Shoot-through protection
- Dead time 520ns
- Wide temperature range -40°C ~ 125°C
- Output stage source/sink current capability 300mA/600mA
- RoHS compliant
- SOIC8 (S)
