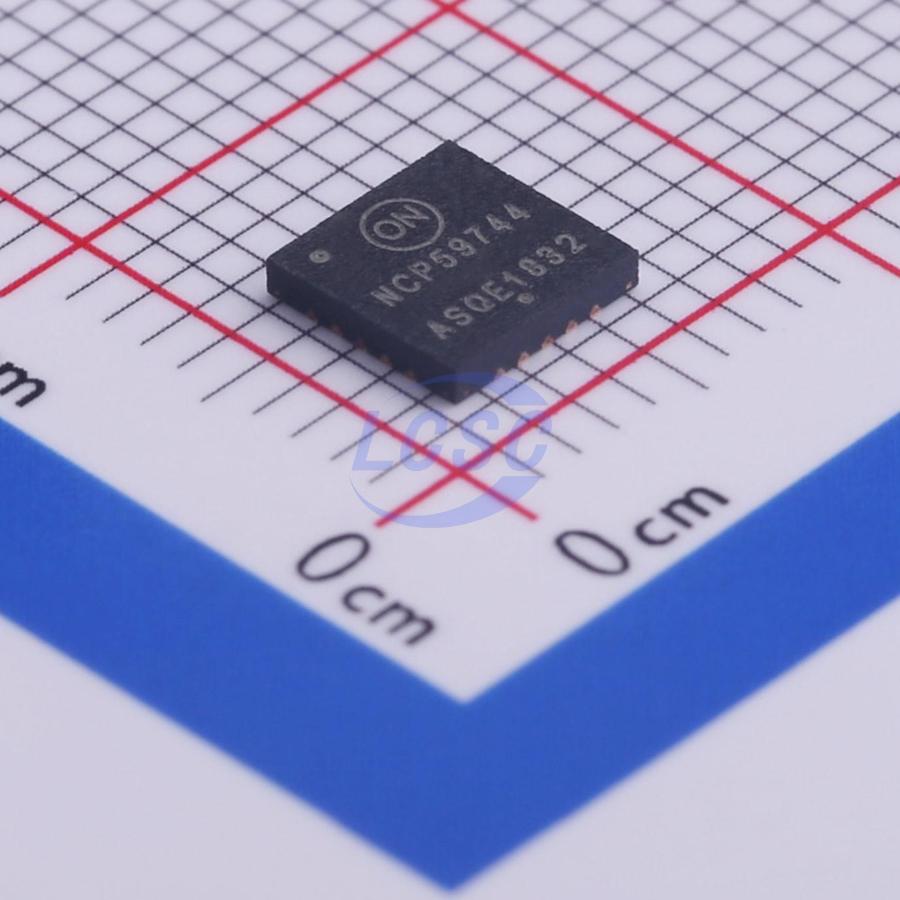

NCP59744MN2ADJTBG

The NCP59744 is dual−rail very low dropout voltage regulator that is capable of providing an output current in excess of 3.0 A with a dropout voltage of 95 mV typ. at full load current. The devices are stable with ceramic and other low ESR output capacitors. This series contains adjustable output voltage version with output voltage down to 0.8 V. Internal protection features consist of built−in thermal shutdown and output current limiting protection. User−programmable Soft−Start and Power Good pins are available. The NCP59744 is offered in DFN10 3x3 and QFN20 5x5 packages.

Applications

• Telecom and Industrial Equipment Point of Load Regulation
• FPGA, DSP and Logic Power Supplies
• Switching Power Supply Post Regulation
• Applications with Specific Start−up Time or Sequencing Requirements

Key features

• Output Current in Excess of 3.0 A
• 0.25% Typical Accuracy Over Line and Load
• VIN Range: 0.8 V to 5.5 V
• VBIAS Range: 2.2 V to 5.5 V
• Output Voltage Range: 0.8 V to 3.6 V
• Dropout Voltage: 95 mV at 3 A
• Programmable Soft Start
• Open Drain Power Good Output
• Excellent Transient Response
• Current Limit and Thermal Shutdown Protection
• These Devices are Pb−Free and are RoHS Compliant
