onsemiDatasheet (PDF)

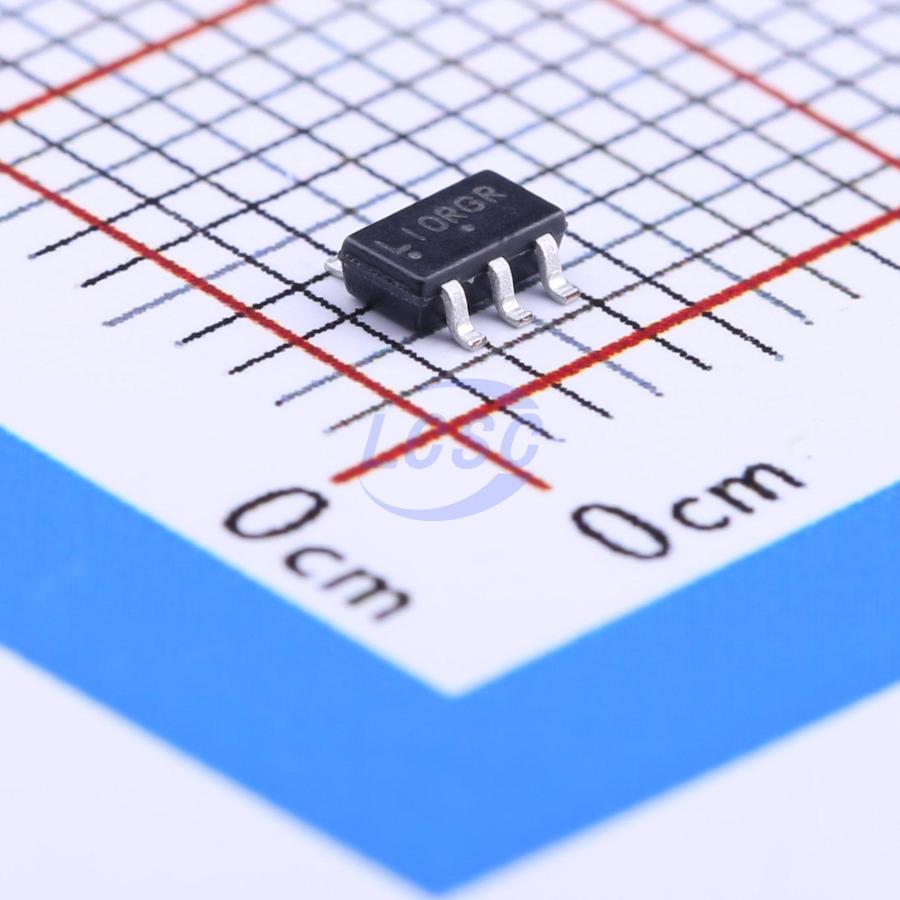

NCP600SNADJT1G
1.25V~5V Positive Adjustable TSOP-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TSOP-5ROHS3 CompliantActive
High Performance Low-Power, LDo Regulator with Enable
- Manufacturer
- onsemi
- Manufacturer part #
- NCP600SNADJT1G
- Store part #
- C14299
- Package / case
- TSOP-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,995 in stock
#C14299
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹59.44 | ₹59.44 |
| 10+ | ₹47.52 | ₹475.20 |
| 30+ | ₹41.75 | ₹1,252.50 |
| 100+ | ₹35.78 | ₹3,578.00 |
| 500+ | ₹32.34 | ₹16,170.00 |
| 1,000+ | ₹30.54 | ₹30,540.00 |
1 × ₹59.44
₹59.44
excl. GST
₹70.14 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NCP600SNADJT1G
₹59.44 for 1 + GST
Specifications
- Output Voltage
- 1.25V~5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃
- Supply Current (Iq)
- 100uA
- Output Configuration
- Positive
- Output Current
- 150mA
- Operating Voltage
- 6V
- Features
- Enable control;Thermal shutdown;Short Circuit Protection;Over Current Protection
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.041 g
Overview
The NCP600 provides 150 mA of output current at fixed voltage options, or an adjustable output voltage from 5.0 V down to 1.25 V. It is designed for portable battery powered applications and offers high performance features such as low power operation, fast enable response time, and low dropout. The device is designed to be used with low cost ceramic capacitors and is packaged in the TSOP−5 and DFN6, 2x2.2 packages.
Applications
- SMPS Post−Regulation
- Hand−held Instrumentation
- Noise Sensitive Circuits – VCO, RF Stages, etc.
- Camcorders and Cameras
Key features
- Output Voltage Options: Adjustable, 1.3 V, 1.5 V, 1.8 V, 2.5 V, 2.8 V, 3.0 V, 3.3 V, 3.5 V, 5.0 V
- Ultra−Low Dropout Voltage of 150 mV at 150 mA
- Adjustable Output by External Resistors from 5.0 V down to 1.25 V
- Fast Enable Turn−on Time of 15 μs
- Wide Supply Voltage Range Operating Range
- Excellent Line and Load Regulation
- High Accuracy up to 1.5% Output Voltage Tolerance over All Operating Conditions
- Typical Noise Voltage of 50 μVrms without a Bypass Capacitor
- Pb−Free Package is Available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NCP603SNADJT1G#C233368onsemi · TSOP-5 | onsemi | TSOP-5 | 1,339 | ₹61.25 · 1,339 in stock | View |
 | ME6221CM5G#C236642MICRONE · SOT-23-5 | MICRONE | SOT-23-5 | 28,585 | ₹10.05 · 28,585 in stock | View |
