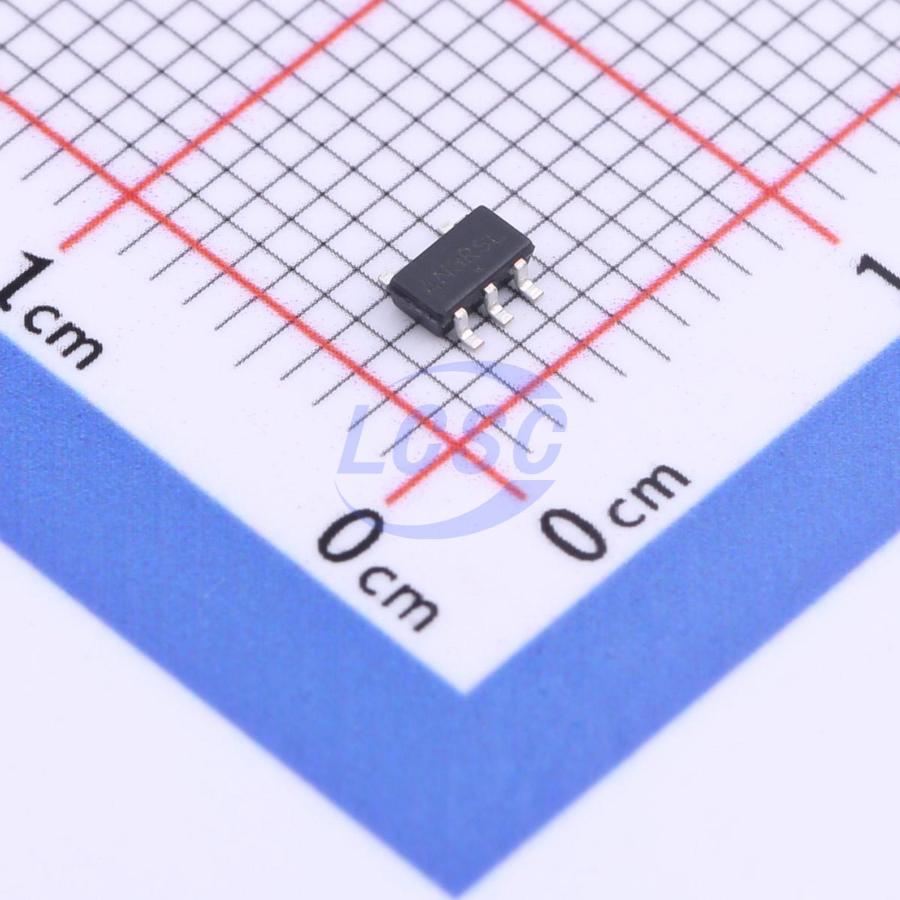

NCV2003SN2T1G

The NCS2003 family of op amps features high slew rate, low voltage operation with rail−to−rail output drive capability. The 1.8 V operation allows high performance operation in low voltage, low power applications. The fast slew rate and wide unity−gain bandwidth (5 MHz at 1.8 V) make these op amps suited for high speed applications. The low input offset voltage (4 mV max) allows the op amp to be used for current shunt monitoring. Additional features include no output phase reversal with overdriven inputs and ultra low input bias current of 1 pA. The NCS2003 family is the ideal solution for a wide range of applications and products. The single channel NCS2003, dual channel NCS20032, and quad channel NCS20034 are available in a variety of compact and space−saving packages. The NCV prefix denotes that the device is AEC−Q100 Qualified and PPAP Capable.

Applications

• Current Shunt Monitor
• Signal Conditioning
• Active Filter
• Sensor Buffer
• Motor Control Drives
• Hard Drives
• Medical Devices
• White Goods and Air Conditioners

Key features

• Unity Gain Bandwidth: 7 MHz at VS = 5 V
• Fast Slew Rate: 8 V/μs rising, 12.5 V/μs falling at VS = 5 V
• Rail−to−Rail Output
• No Output Phase Reversal for Over−Driven Input Signals
• Low Offset Voltage: 0.5 mV typical
• Low Input Bias Current: 1 pA typical
• NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
