onsemiDatasheet (PDF)

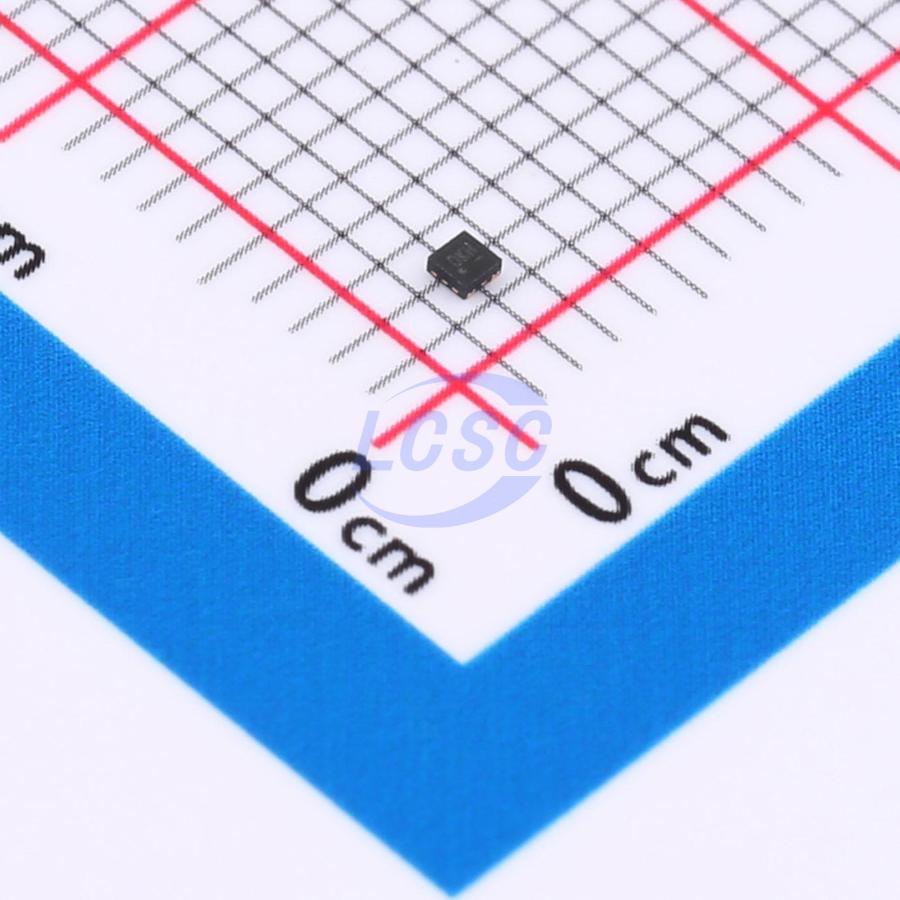

NCV8160AMX300TBG
3V Positive Fixed XDFN-4(1x1) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
XDFN-4(1x1)ROHS3 CompliantActive
LDO Regulator - Ultra-Low Noise, High PSRR, RF and Analog Circuits
- Manufacturer
- onsemi
- Manufacturer part #
- NCV8160AMX300TBG
- Store part #
- C604027
- Package / case
- XDFN-4(1x1)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
48 in stock
#C604027
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹62.02 | ₹62.02 |
| 10+ | ₹49.32 | ₹493.20 |
| 30+ | ₹43.71 | ₹1,311.30 |
| 100+ | ₹37.04 | ₹3,704.00 |
| 500+ | ₹33.82 | ₹16,910.00 |
| 1,000+ | ₹32.10 | ₹32,100.00 |
1 × ₹62.02
₹62.02
excl. GST
₹73.18 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NCV8160AMX300TBG
₹62.02 for 1 + GST
Specifications
- Output Voltage
- 3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 18uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 250mA
- Output Type
- Fixed
- Features
- Enable control;Output discharge;Short Circuit Protection;Over Current Protection;Thermal shutdown
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.255 g
Overview
The NCV8160 is a linear regulator capable of supplying 250 mA output current. Designed to meet the requirements of RF and analog circuits, the NCV8160 device provides low noise, high PSRR, low quiescent current, and very good load/line transients. The device is designed to work with a 1 μF input and a 1 μF output ceramic capacitor. It is available in XDFN−4 0.65P, 1 mm x 1 mm.
Applications
- ADAS, Infotainment & Cluster, and Telematics
- General Purpose Automotive & Industrial
- Building & Factory Automation, Smart Meters
Key features
- Operating Input Voltage Range: 1.9 V to 5.5 V
- Available in Fixed Voltage Option: 1.8 V to 5.14 V
- ±2% Accuracy Over Temperature
- Ultra Low Quiescent Current Typ. 18 μA
- Standby Current: Typ. 0.1 μA
- Very Low Dropout: 90 mV at 250 mA
- Ultra High PSRR: Typ. 98 dB at 20 mA, f = 1 kHz
- Ultra Low Noise: 10 μV RMS
- Stable with a 1 μF Small Case Size Ceramic Capacitors
- Available in XDFN4 1 mm x 1 mm x 0.4 mm
- NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; Grade 1 AEC−Q100 Qualified and PPAP Capable
- These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NCP160AMX300TBG#C603618onsemi · XDFN-4-EP(1x1) | onsemi | XDFN-4-EP(1x1) | 50 | ₹18.64 · 50 in stock | View |
 | NCP161AMX300TBG#C892178onsemi · XDFN-4-EP(1x1) | onsemi | XDFN-4-EP(1x1) | 400 | ₹60.25 · 400 in stock | View |
 | LW5930N11E#C20630458Lewa Micro · DFN1x1-4L | Lewa Micro | DFN1x1-4L | 9,890 | ₹6.64 · 9,890 in stock | View |
 | WL9005D4-30#C5357205WPMtek · DFN-4L(1x1) | WPMtek | DFN-4L(1x1) | 935 | ₹7.28 · 935 in stock | View |
 | NCP163AMX300TBG#C603653onsemi · XDFN-4-EP(1x1) | onsemi | XDFN-4-EP(1x1) | 70 | ₹41.81 · 70 in stock | View |
