onsemiDatasheet (PDF)

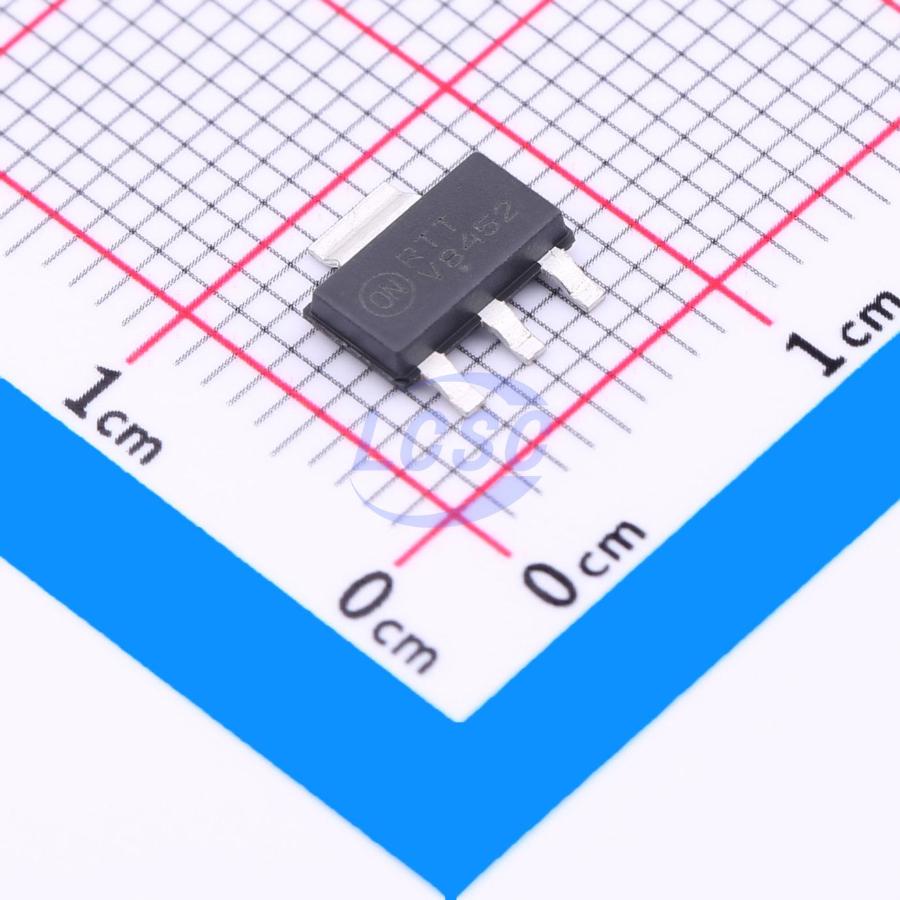

NCV8452STT1G
5V~34V 1A SOT-223 Motor Drivers, Controllers RoHS
SOT-223ROHS3 CompliantActive
Self Protected High Side Driver with Temperature Shutdown and Current Limit
- Manufacturer
- onsemi
- Manufacturer part #
- NCV8452STT1G
- Store part #
- C477982
- Package / case
- SOT-223
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,027 in stock
#C477982
Stock & price checked 39 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹212.75 | ₹212.75 |
| 10+ | ₹182.80 | ₹1,828.00 |
| 30+ | ₹166.51 | ₹4,995.30 |
| 100+ | ₹147.85 | ₹14,785.00 |
| 500+ | ₹139.81 | ₹69,905.00 |
| 1,000+ | ₹135.90 | ₹1,35,900.00 |
1 × ₹212.75
₹212.75
excl. GST
₹251.05 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
NCV8452STT1G
₹212.75 for 1 + GST
Specifications
- Features
- Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Overvoltage protection;Under-voltage lockout;Reverse voltage protection
- Number of Channels
- 1
- Voltage - Supply
- 5V~34V
- Type
- High Side Switch
- Operating Temperature
- -40℃~+150℃
- Maximum Continuous Current
- 1A
- RDS(on)
- 200mΩ
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.21 g
Overview
The NCV8452 is a fully protected High−Side driver that can be used to switch a wide variety of loads, such as bulbs, solenoids and other activators. The device is internally protected from an overload condition by an active current limit and thermal shutdown.
Applications
- Switch a Variety of Resistive, Inductive and Capacitive Loads
- Can Replace Electromechanical Relays and Discrete Circuits
- Automotive / Industrial
Key features
- Short Circuit Protection
- Thermal Shutdown with Automatic Restart
- CMOS (3 V/5 V) Compatible Control Input
- Overvoltage Protection and Shutdown
- Output Voltage Clamp for Inductive Switching
- Under Voltage Shutdown
- Loss of Ground Protection
- ESD Protection
- Reverse Battery Protection (with external resistor)
- Very Low Standby Current
- NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
- These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
