onsemiDatasheet (PDF)

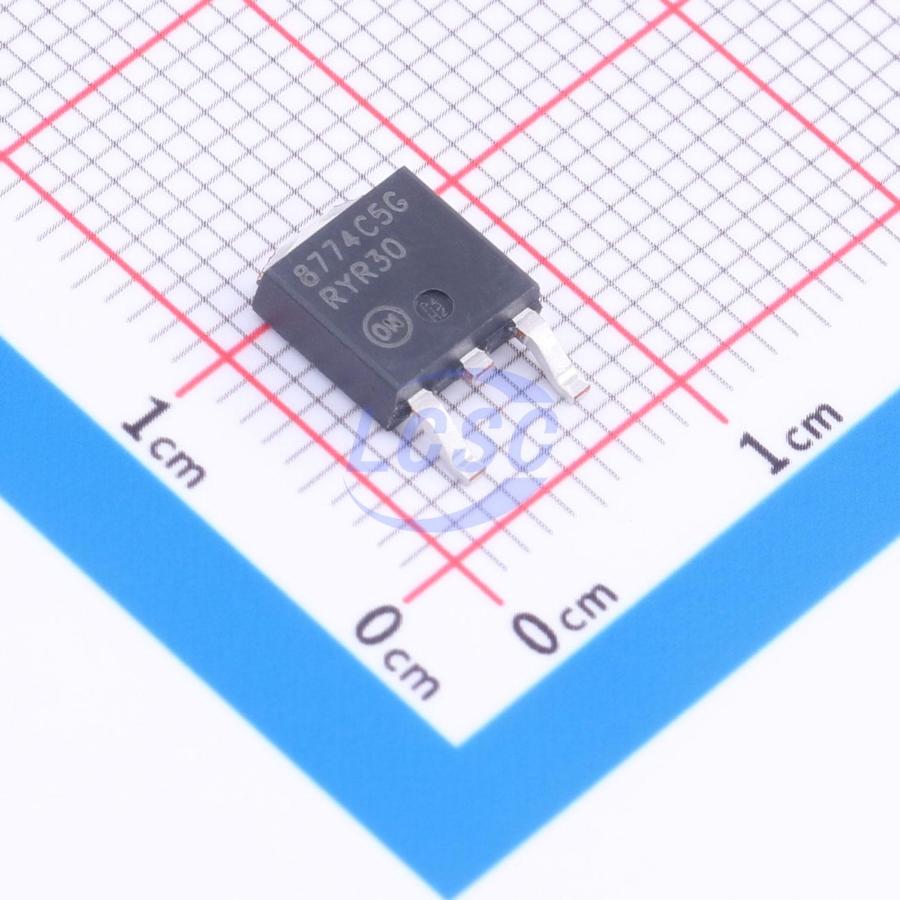

NCV8774CDT50RKG
5V Positive Fixed DPAK Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
DPAKROHS3 CompliantActive
- Manufacturer
- onsemi
- Manufacturer part #
- NCV8774CDT50RKG
- Store part #
- C904697
- Package / case
- DPAK
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
58 in stock
#C904697
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹214.76 | ₹214.76 |
| 10+ | ₹209.33 | ₹2,093.30 |
| 30+ | ₹205.85 | ₹6,175.50 |
| 100+ | ₹202.37 | ₹20,237.00 |
1 × ₹214.76
₹214.76
excl. GST
₹253.42 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
NCV8774CDT50RKG
₹214.76 for 1 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+150℃@(Tj)
- Supply Current (Iq)
- 17uA
- Output Configuration
- Positive
- Operating Voltage
- 40V
- Output Current
- 350mA
- Features
- Over Current Protection;Thermal shutdown;Enable control;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.53 g
Overview
The NCV8774C is a 350 mA LDO regulator. Its robustness allows NCV8774C to be used in severe automotive environments. Ultra low quiescent current as low as 17 μA typical makes it suitable for applications permanently connected to battery requiring ultra low quiescent current with or without load. This feature is especially critical when modules remain in active mode when ignition is off. The NCV8774C contains protection functions as current limit, thermal shutdown.
Applications
- Body Control Module
- Instruments and Clusters
- Occupant Protection and Comfort
- Powertrain
Key features
- Output Voltage Options: 3.3 V and 5 V
- Output Voltage Accuracy: ±2%
- Output Current up to 350 mA
- Ultra Low Quiescent Current: typ 17 μA
- Wide Input Voltage Operation Range: up to 40 V
- Protection Features − Current Limitation − Thermal Shutdown
- EMC Compliant
- NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Grade 1 Qualified and PPAP Capable
- These are Pb−Free Devices
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HR78M05B#C55349164R+O · TO-252 | R+O | TO-252 | 19,520 | ₹17.32 · 19,520 in stock | View |
 | JTD78M05#C42443421JTD · TO-252-3 | JTD | TO-252-3 | 2,145 | ₹12.30 · 2,145 in stock | View |
 | BD750L5FP-CE2#C182944ROHM · TO-252 | ROHM | TO-252 | 2,073 | ₹152.01 · 2,073 in stock | View |
 | L78M05HDTR(XBLW)#C18723600XBLW · TO-252 | XBLW | TO-252 | 11,415 | ₹10.69 · 11,415 in stock | View |
 | TLS850A4TEV50ATMA1#C22089296Infineon · TO-252-3 | Infineon | TO-252-3 | 5 | ₹126.90 · 5 in stock | View |
