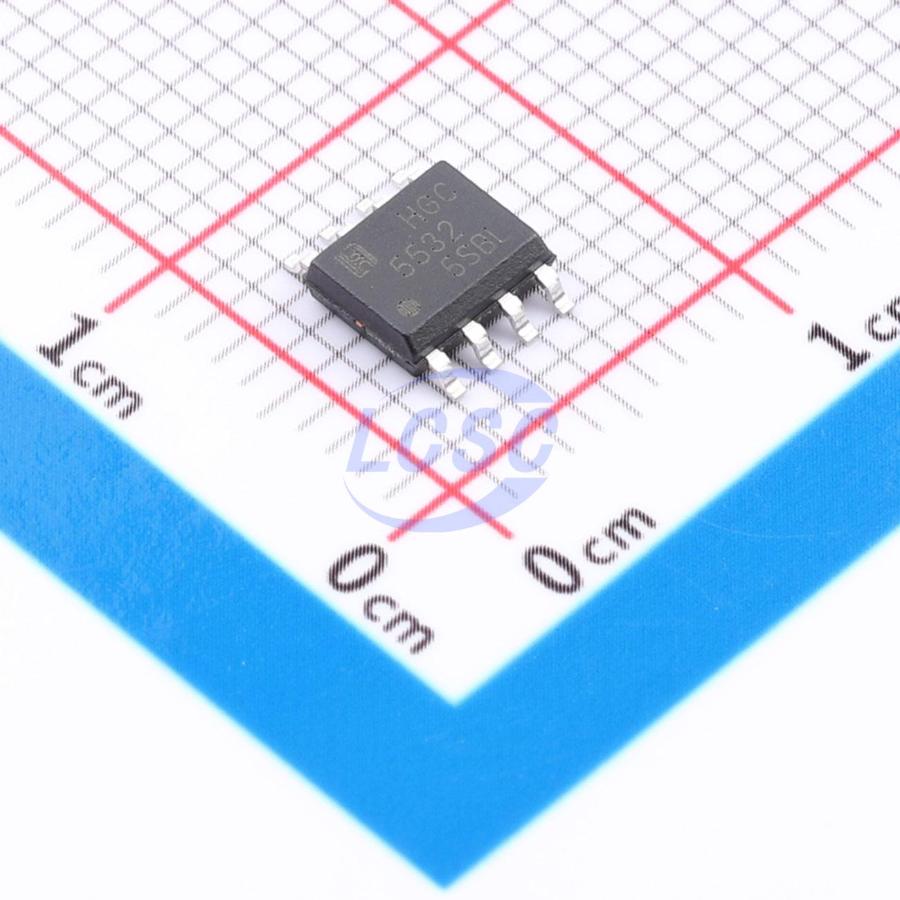

HANSCHIP semiconductorDatasheet (PDF)
NE5532DRG
Standard (General Purpose) Amplifier 2 Circuit SOP-8
SOP-8ROHS CompliantActive
IC OPAMP GP 2 CIRCUIT SOP-8
- Manufacturer
- HANSCHIP semiconductor
- Manufacturer part #
- NE5532DRG
- Store part #
- C46552270
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,360 in stock
#C46552270
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹10.05 | ₹100.50 |
| 100+ | ₹7.96 | ₹796.00 |
| 300+ | ₹6.93 | ₹2,079.00 |
| 2,500+ | ₹6.15 | ₹15,375.00 |
| 5,000+ | ₹5.52 | ₹27,600.00 |
| 10,000+ | ₹5.21 | ₹52,100.00 |
10 × ₹10.05
₹100.50
excl. GST
₹118.59 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
NE5532DRG
₹100.50 for 10 + GST
Specifications
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 500uV
- Slew Rate
- 11V/us
- Input Offset Current(Ios)
- 5nA
- Operating Temperature
- 0℃~+70℃
- Common Mode Rejection Ratio(CMRR)
- 100dB
- Ib - Input Bias Current
- 30nA
- Gain Bandwidth Product
- 10MHz
- Features
- Built-in compensation
- Input Voltage Noise Density
- 8nV/√Hz@1kHz
- Dual Supply
- -15V~15V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.175 g
Overview
The NE5532/SA5532 is a dual low-noise op-amp featuring two independent, internally frequency-compensated amplifiers. It offers high DC voltage gain (approximately 100 dB), high slew rate (typically 10V/μs), and low input noise voltage (8nV/√Hz at 1kHz). Available in DIP-8, SOP-8, or MSOP-8 packages.
Key features
- Internal frequency compensation
- High DC voltage gain (approx. 100 dB)
- High slew rate (typical 10 V/μs)
- Low input noise voltage (8 nV/√Hz at 1 kHz)
