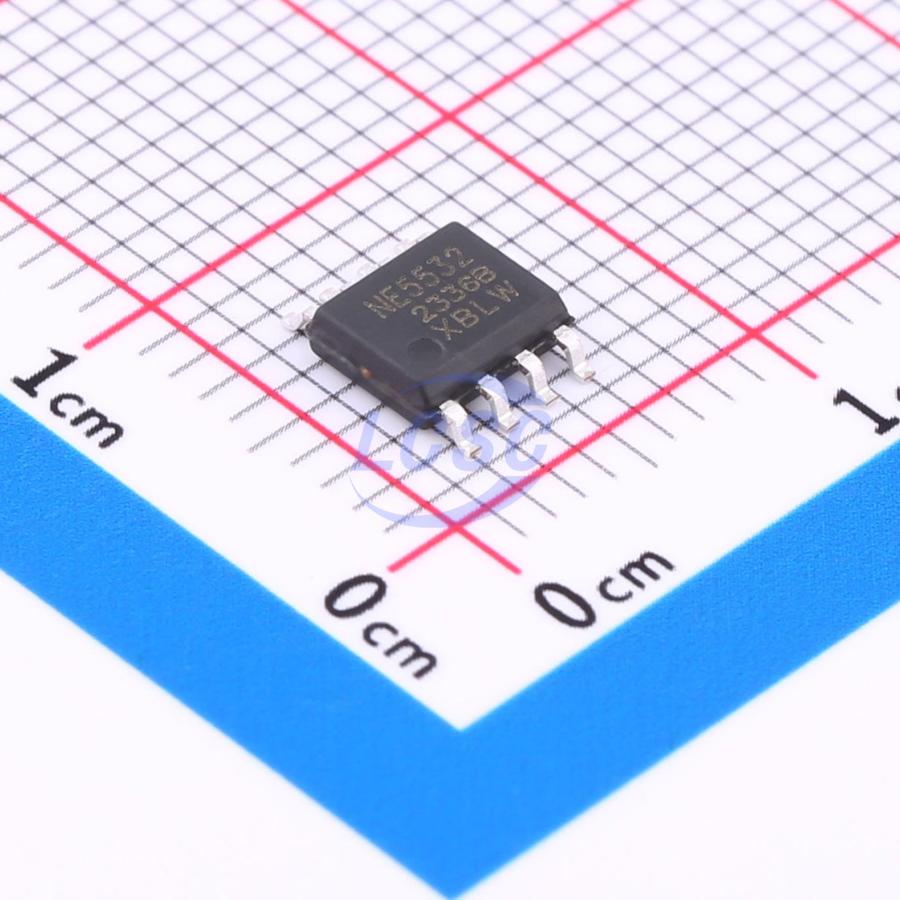

NE5532DTR(XBLW)
60mA 2 5mV 7V/us 100dB 800nA 8mA 10MHz SOP-8 Instrumentation, Op Amps, Buffer Amps RoHS
SOP-8ROHS CompliantActive
High-performance Low-noise Dual Operational Amplifier
- Manufacturer
- XBLW
- Manufacturer part #
- NE5532DTR(XBLW)
- Store part #
- C18723604
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,450 in stock
#C18723604
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.67 | ₹63.35 |
| 50+ | ₹9.88 | ₹494.00 |
| 150+ | ₹8.48 | ₹1,272.00 |
| 500+ | ₹7.44 | ₹3,720.00 |
| 2,500+ | ₹6.60 | ₹16,500.00 |
| 5,000+ | ₹6.18 | ₹30,900.00 |
5 × ₹12.67
₹63.35
excl. GST
₹74.75 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
NE5532DTR(XBLW)
₹63.35 for 5 + GST
Specifications
- Output Current
- 60mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 5mV
- Slew Rate
- 7V/us
- Input Offset Current(Ios)
- 10nA
- Operating Temperature
- 0℃~+70℃
- Common Mode Rejection Ratio(CMRR)
- 100dB
- Ib - Input Bias Current
- 800nA
- Quiescent Current
- 8mA
- Gain Bandwidth Product
- 10MHz
- Features
- Built-in compensation
- Input Voltage Noise Density
- 5nV/√Hz@1kHz
- Dual Supply
- -20V~-3V;3V~20V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.209 g
Overview
The NE5532 is a high- performance, low- noise operational amplifier with twin channels. It outperforms most typical operational amplifiers in terms of noise performance, output drive capability, and small- signal and power bandwidths. As a result, the device is particularly well- suited for use in high- quality and professional audio equipment, instrumentation and control circuits, and telephone channel amplifiers.
Applications
- AV Receivers
- Embedded PCs
- Netbooks
- Video Broadcasting and Infrastructure: Scalable Platforms
- DVD Recorders and Players
- Multichannel Video Transcoders
- Pro Audio Mixers
Key features
- DC Voltage Gain: 50000
- AC Voltage Gain: 2200Hz - 10KHz
- Power Bandwidth: 140KHz
- Slew Rate: 7V/μs
- Supply Power Range: ±3V - ±20V
- Unit- Gain Compensation
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LMV722IDR(XBLW)#C36936518XBLW · SOP-8 | XBLW | SOP-8 | 2,135 | ₹19.67 · 2,135 in stock | View |
