XBLW

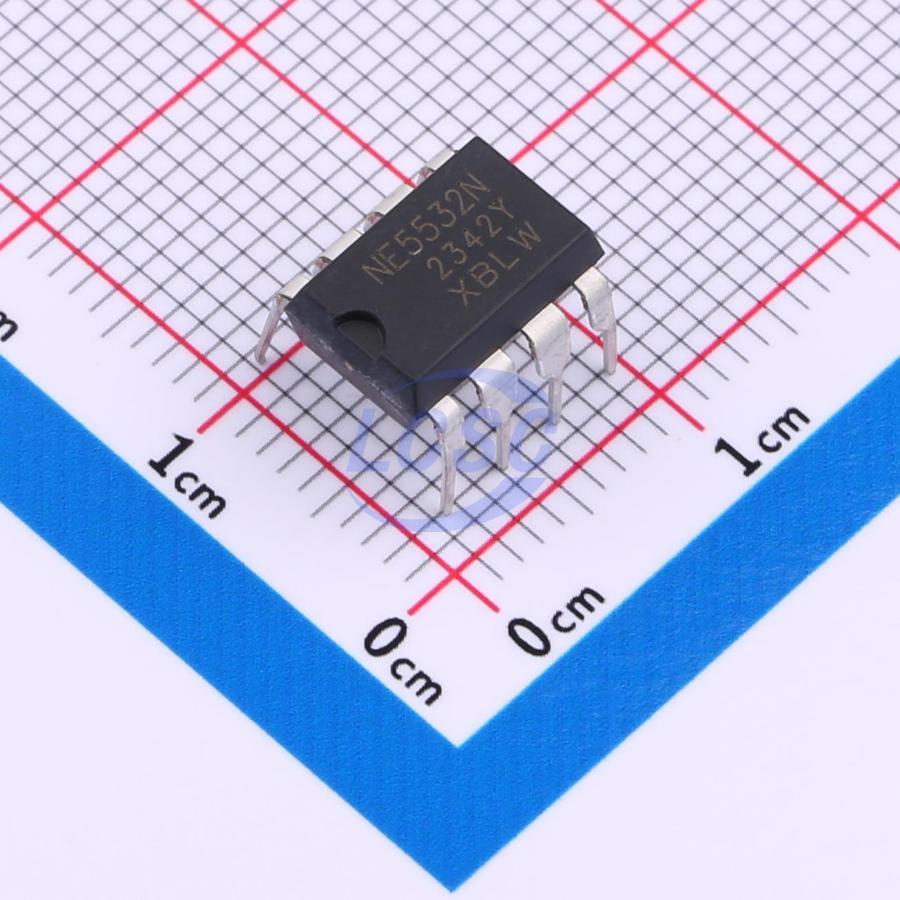

NE5532N(XBLW)

60mA 2 4mV 7V/us 100dB 800nA 8mA 10MHz DIP-8 Instrumentation, Op Amps, Buffer Amps RoHS

DIP-8ROHS CompliantActive

High-performance Low-noise Dual Operational Amplifier

Manufacturer: XBLW
Manufacturer part #: NE5532N(XBLW)
Store part #: C19267481
Package / case: DIP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,420 in stock

#C19267481

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹20.72	₹103.60
50+	₹16.14	₹807.00
150+	₹14.18	₹2,127.00
500+	₹11.74	₹5,870.00
2,000+	₹10.65	₹21,300.00
4,000+	₹9.99	₹39,960.00

Quantity (min 5, multiples of 5)

5 × ₹20.72

₹103.60

excl. GST

₹122.25 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 50 per tube

NE5532N(XBLW)

₹103.60 for 5 + GST

Specifications

Output Current: 60mA
Number of Channels: 2
Vos - Input Offset Voltage: 4mV
Slew Rate: 7V/us
Input Offset Current(Ios): 10nA
Operating Temperature: 0℃~+70℃
Common Mode Rejection Ratio(CMRR): 100dB
Ib - Input Bias Current: 800nA
Quiescent Current: 8mA
Gain Bandwidth Product: 10MHz
Features: Built-in compensation
Input Voltage Noise Density: 5nV/√Hz@1kHz
Dual Supply: -20V~-3V;3V~20V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tube-packed
Standard pack: 50 / Tube
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.726 g

Overview

The NE5532 is a high- performance, low- noise operational amplifier with twin channels. It outperforms most typical operational amplifiers in terms of noise performance, output drive capability, and small- signal and power bandwidths. As a result, the device is particularly well- suited for use in high- quality and professional audio equipment, instrumentation and control circuits, and telephone channel amplifiers.
