JRCDatasheet (PDF)

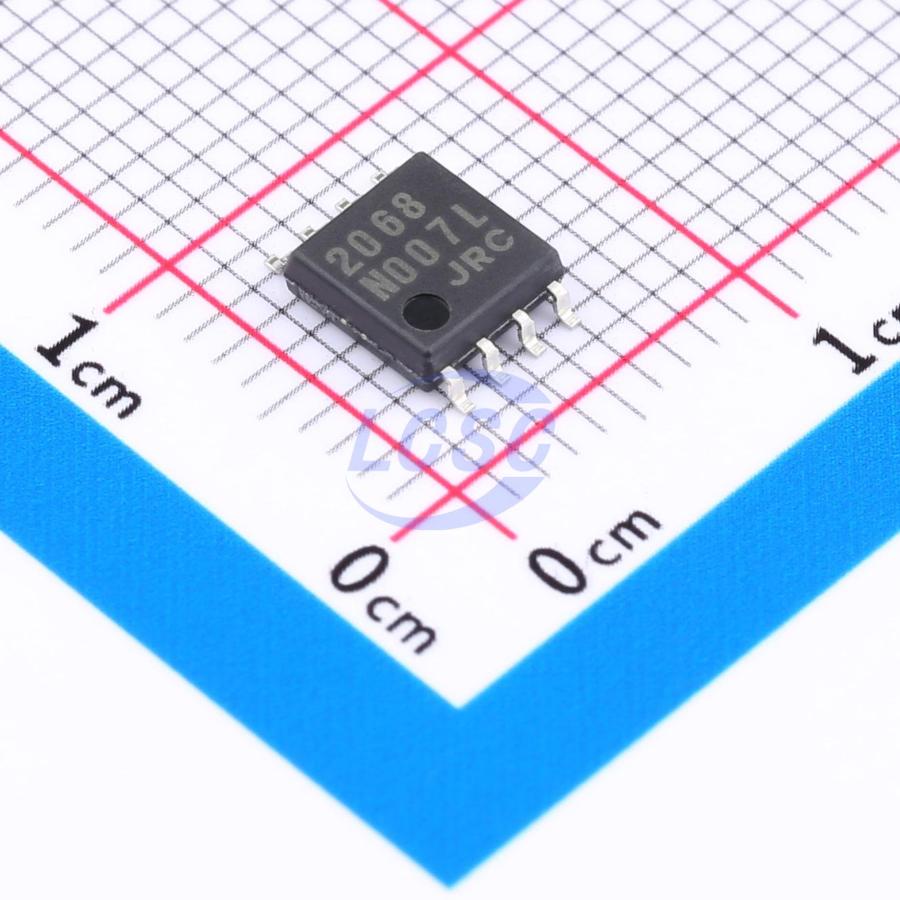

NJM2068M-TE1
2 3mV 6V/us 1uA 110dB 5mA 27MHz DMP-8 Instrumentation, Op Amps, Buffer Amps RoHS
DMP-8ROHS CompliantActive
LOW-NOISE DUAL OPERATIONAL AMPLIFIER
- Manufacturer
- JRC
- Manufacturer part #
- NJM2068M-TE1
- Store part #
- C3018890
- Package / case
- DMP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,405 in stock
#C3018890
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹33.01 | ₹165.05 |
| 50+ | ₹26.08 | ₹1,304.00 |
| 150+ | ₹23.11 | ₹3,466.50 |
| 500+ | ₹19.41 | ₹9,705.00 |
| 2,000+ | ₹17.75 | ₹35,500.00 |
| 4,000+ | ₹16.76 | ₹67,040.00 |
5 × ₹33.01
₹165.05
excl. GST
₹194.76 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
NJM2068M-TE1
₹165.05 for 5 + GST
Specifications
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 3mV
- Slew Rate
- 6V/us
- Input Offset Current(Ios)
- 5nA
- Operating Temperature
- -20℃~+75℃
- Ib - Input Bias Current
- 1uA
- Common Mode Rejection Ratio(CMRR)
- 110dB
- Quiescent Current
- 5mA
- Gain Bandwidth Product
- 27MHz
- Dual Supply
- 4V~36V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.27 g
Overview
The NJM2068 is a high performance, low noise dual operational amplifier. This amplifier features popular pin-out, superior noise performance, and superior total harmonic distortion. This amplifier also features guaranteed noise performance with substantially higher gain-bandwidth product and slew rate, which far exceeds that of the 4558 type amplifier. The specially designed low noise input transistors allow the NJM2068 to be used in very low noise signal processing applications such as audio preamplifiers and servo error amplifier. The D-Rank type products (NJM2068DD/LD/MD) have specified maximum limits for equivalent input noise voltage.
Key features
- Operating Voltage ±4V~±18V
- Low Total Harmonic Distortion 0.001%
- Low Noise Voltage 0.56µV (FLAT+JISA)
- High Slew Rate 6V/µs
- Unity Gain Bandwidth 27MHz (f=10kHz)
- Bipolar Technology
- Package Outline DIP8, DMP8, SIP8, SSOP8
