Nisshinbo Micro Devices Inc.Datasheet (PDF)

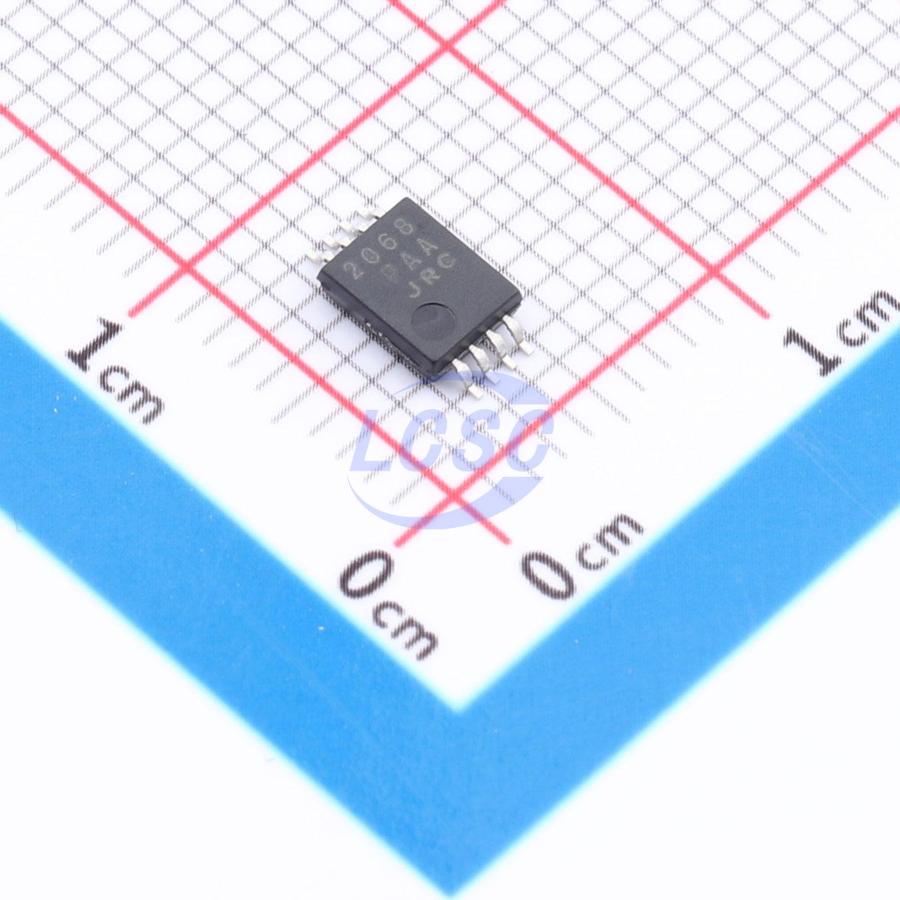

NJM2068V-TE1
2 3mV 6V/us 110dB 1uA 5mA 27MHz SSOP-8 Instrumentation, Op Amps, Buffer Amps RoHS
SSOP-8ROHS3 CompliantActive
LOW-NOISE DUAL OPERATIONAL AMPLIFIER
- Manufacturer
- Nisshinbo Micro Devices Inc.
- Manufacturer part #
- NJM2068V-TE1
- Store part #
- C4366252
- Package / case
- SSOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,250 in stock
#C4366252
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹35.28 | ₹176.40 |
| 50+ | ₹27.82 | ₹1,391.00 |
| 150+ | ₹24.62 | ₹3,693.00 |
| 500+ | ₹20.64 | ₹10,320.00 |
| 2,000+ | ₹18.85 | ₹37,700.00 |
| 4,000+ | ₹17.79 | ₹71,160.00 |
5 × ₹35.28
₹176.40
excl. GST
₹208.15 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
NJM2068V-TE1
₹176.40 for 5 + GST
Specifications
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 3mV
- Slew Rate
- 6V/us
- Input Offset Current(Ios)
- 5nA
- Operating Temperature
- -20℃~+75℃
- Common Mode Rejection Ratio(CMRR)
- 110dB
- Ib - Input Bias Current
- 1uA
- Quiescent Current
- 5mA
- Gain Bandwidth Product
- 27MHz
- Dual Supply
- 4V~18V;-18V~-4V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.086 g
Overview
The NJM2068 is a high performance, low noise dual operational amplifier. This amplifier features popular pin-out, superior noise performance, and superior total harmonic distortion. This amplifier also features guaranteed noise performance with substantially higher gain-bandwidth product and slew rate, which far exceeds that of the 4558 type amplifier. The specially designed low noise input transistors allow the NJM2068 to be used in very low noise signal processing applications such as audio preamplifiers and servo error amplifier. The D-Rank type products (NJM2068DD/LD/MD) have specified maximum limits for equivalent input noise voltage.
Key features
- Operating Voltage ±4V~±18V
- Low Total Harmonic Distortion 0.001%
- Low Noise Voltage 0.56µV (FLAT+JISA)
- High Slew Rate 6V/µs
- Unity Gain Bandwidth 27MHz (f=10kHz)
- Bipolar Technology
- Package Outline DIP8, DMP8, SIP8, SSOP8
