JRCDatasheet (PDF)

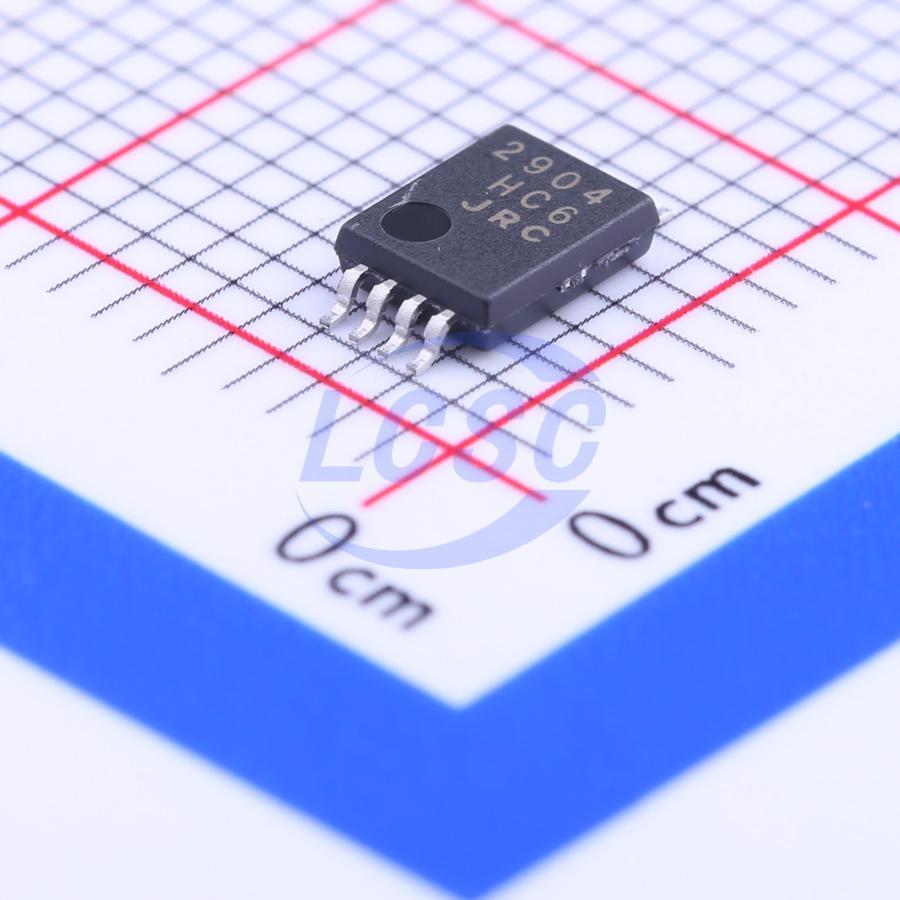

NJM2904V-TE1
30mA 2 2mV 500V/ms 85dB 25nA 600kHz 700uA TSSOP-8 Instrumentation, Op Amps, Buffer Amps
TSSOP-8RoHSActive
- Manufacturer
- JRC
- Manufacturer part #
- NJM2904V-TE1
- Store part #
- C24034
- Package / case
- TSSOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,260 in stock
#C24034
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹25.03 | ₹125.15 |
| 50+ | ₹19.62 | ₹981.00 |
| 150+ | ₹17.30 | ₹2,595.00 |
| 500+ | ₹14.41 | ₹7,205.00 |
| 2,000+ | ₹13.12 | ₹26,240.00 |
| 4,000+ | ₹12.34 | ₹49,360.00 |
5 × ₹25.03
₹125.15
excl. GST
₹147.68 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
NJM2904V-TE1
₹125.15 for 5 + GST
Specifications
- Output Current
- 30mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 2mV
- Slew Rate
- 500V/ms
- Input Offset Current(Ios)
- 5nA
- Operating Temperature
- -40℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 85dB
- Ib - Input Bias Current
- 25nA
- Gain Bandwidth Product
- 600kHz
- Quiescent Current
- 700uA
- Features
- Built-in compensation
- Single Supply
- 3V~32V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.096 g
Overview
The NJM2904 consists of two independent, high gain, internally frequency compensated operation amplifiers, which were designed specifically to operate from a single power supply over a wide range of voltages. Operation from split power supplies is also possible and the low power supply current drain is independent of the magnitude of the power supply voltage. Application areas include transducer amplifiers, DC gain blocks, and all the conventional op amp circuits, which now can be more easily implemented in single power supply systems. For example, the NJM2904 can be directly operated off of the standard +5V power supply voltage, which is used in digital systems and will easily provide the required interface electronics without requiring the additional ±15V power supplies.
Key features
- Single Supply
- Operating Voltage +3V~+32V
- Low Operating Current 0.7mA typ.
- Slew Rate 0.5V/µs typ.
- Bipolar Technology
- Package Outline DIP8, DMP8, SSOP8, SIP8, SOP8 JEDEC 150mil MSOP8 (VSP8) MEET JEDEC MO-187-DA MSOP8 (TVSP8) MEET JEDEC MO-187-DA / THIN TYPE
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM258WYPT#C2059137ST · TSSOP-8 | ST | TSSOP-8 | 380 | ₹65.89 · 380 in stock | View |
| LM258AWYPT#C2059171ST · TSSOP-8 | ST | TSSOP-8 | 1,060 | ₹30.52 · 1,060 in stock | View | |
 | LM2904BAQPWRQ1#C5214242TI · TSSOP-8 | TI | TSSOP-8 | 18 | ₹51.49 · 18 in stock | View |
 | LM258PT#C7548ST · TSSOP-8 | ST | TSSOP-8 | 2,565 | ₹23.63 · 2,565 in stock | View |
 | LM258APT#C2652264ST · TSSOP-8 | ST | TSSOP-8 | 70 | ₹157.83 · 70 in stock | View |
