JRCDatasheet (PDF)

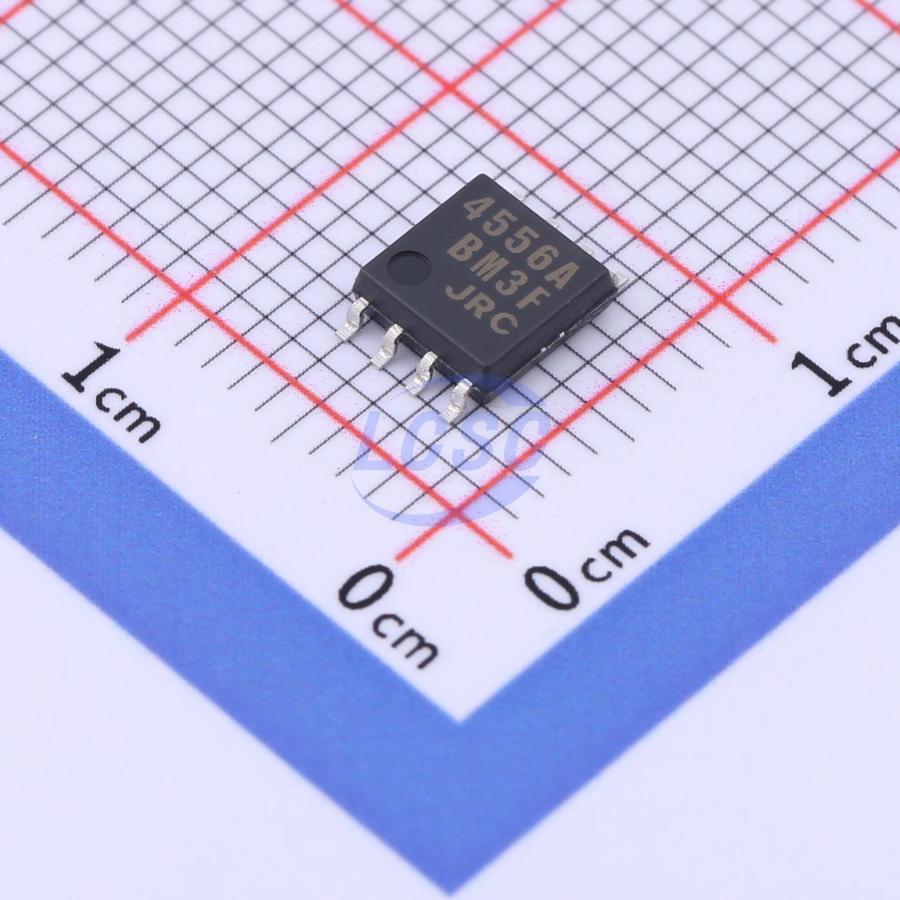

NJM4556AM-TE1
70mA 2 6mV 3V/us 500nA 90dB 8mA DMP-8 Instrumentation, Op Amps, Buffer Amps RoHS
DMP-8ROHS CompliantActive
DUAL HIGH CURRENT OPERATIONAL AMPLIFIER
- Manufacturer
- JRC
- Manufacturer part #
- NJM4556AM-TE1
- Store part #
- C3018893
- Package / case
- DMP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,060 in stock
#C3018893
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹33.92 | ₹169.60 |
| 50+ | ₹26.90 | ₹1,345.00 |
| 150+ | ₹23.88 | ₹3,582.00 |
| 500+ | ₹20.11 | ₹10,055.00 |
| 2,000+ | ₹18.44 | ₹36,880.00 |
| 4,000+ | ₹17.44 | ₹69,760.00 |
5 × ₹33.92
₹169.60
excl. GST
₹200.13 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
NJM4556AM-TE1
₹169.60 for 5 + GST
Specifications
- Output Current
- 70mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 6mV
- Slew Rate
- 3V/us
- Input Offset Current(Ios)
- 5nA
- Operating Temperature
- -40℃~+85℃
- Ib - Input Bias Current
- 500nA
- Common Mode Rejection Ratio(CMRR)
- 90dB
- Quiescent Current
- 8mA
- Input Voltage Noise Density
- 10nV/√Hz@1kHz
- Dual Supply
- 2V~18V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.27 g
Overview
The NJM4556A integrated circuit is a high-gain, high output current dual operational amplifier capable of driving ±70 mA into 150Ω loads ( ±10.5 V output voltage ), and operating low supply voltage V+/V = ±2V~ The NJM4556A combines many of the features of the popular NJM4558 as well as having the capability of driving 150Ω loads. In addition, the wide band-width, low noise, high slew rate and low distortion of the NJM4556A make it ideal for many audio, telecommunications and instrumentation applications.
Applications
- audio
- telecommunications
- instrumentation
Key features
- Supply Voltage (±2V or ±18V)
- High Output Current IO = 70 mA
- Slew Rate (3V/μs typ.)
- Gain Band Width Product (8MHz typ.)
- Equivalent Input Noise Voltage (10nV/√Hz typ.)
- Package Outline DIP8, DMP8, SIP8, SS8
- Bipolar Technology
