JRCDatasheet (PDF)

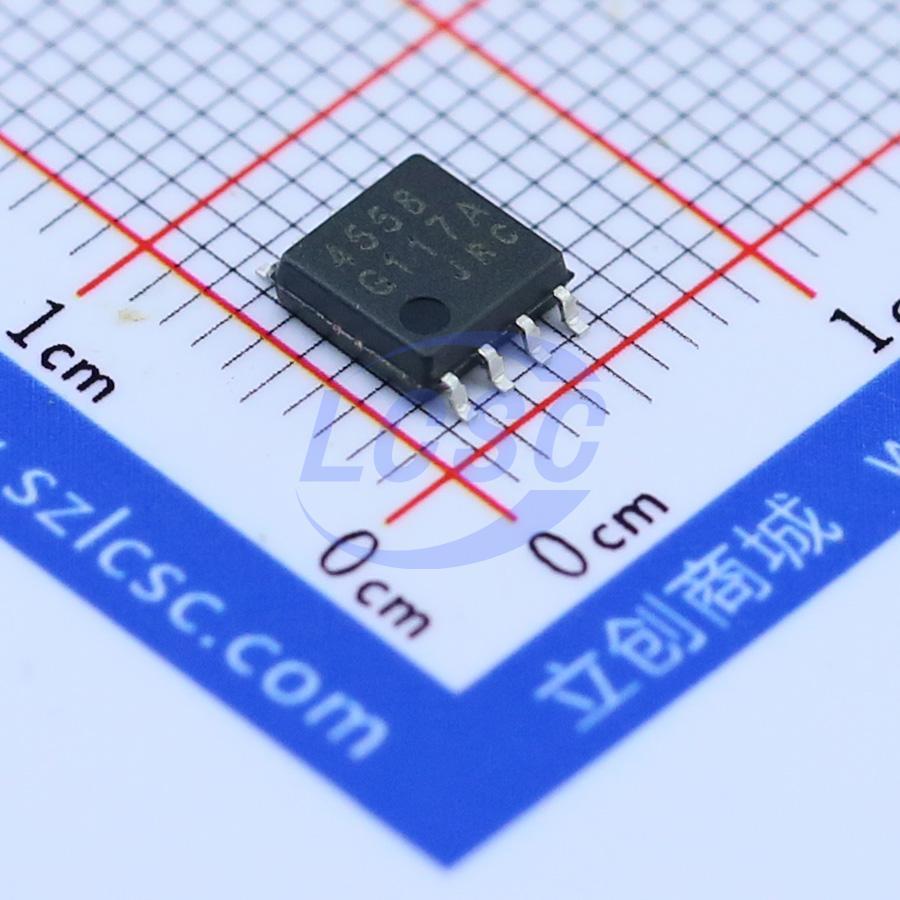

NJM4558M-TE1
2 6mV 1V/us 50nA 90dB 5.7mA 3MHz SOIC-8-208mil Instrumentation, Op Amps, Buffer Amps RoHS
SOIC-8-208milROHS CompliantActive
DUAL OPERATIONAL AMPLIFIER
- Manufacturer
- JRC
- Manufacturer part #
- NJM4558M-TE1
- Store part #
- C7598
- Package / case
- SOIC-8-208mil
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,450 in stock
#C7598
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.43 | ₹97.15 |
| 50+ | ₹15.47 | ₹773.50 |
| 150+ | ₹13.48 | ₹2,022.00 |
| 500+ | ₹12.00 | ₹6,000.00 |
| 2,000+ | ₹10.21 | ₹20,420.00 |
| 4,000+ | ₹9.62 | ₹38,480.00 |
5 × ₹19.43
₹97.15
excl. GST
₹114.64 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
NJM4558M-TE1
₹97.15 for 5 + GST
Specifications
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 6mV
- Slew Rate
- 1V/us
- Input Offset Current(Ios)
- 5nA
- Operating Temperature
- -40℃~+85℃
- Ib - Input Bias Current
- 50nA
- Common Mode Rejection Ratio(CMRR)
- 90dB
- Quiescent Current
- 5.7mA
- Gain Bandwidth Product
- 3MHz
- Features
- Built-in compensation
- Dual Supply
- -18V~18V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.141 g
Overview
The NJM4558/4559 integrated circuit are a dual high- gain operational amplifier internally compensated and constru- cted on a single silicon chip using an advanced epitaxial process. Combining the features of the NJM741 with the close parameter matching and tracking of a dual device on a mono- lithic chip results in unique performance characteristics. Excellent channel separation allow the use of the dual device in single NJM741 operational amplifier applications providing density. It is especially well suited for applications in di- fferential- in, differential- out as well as in potentiometric amplifiers and where gain and phase matched channels are ma- ndatory.
