HGSEMIDatasheet (PDF)

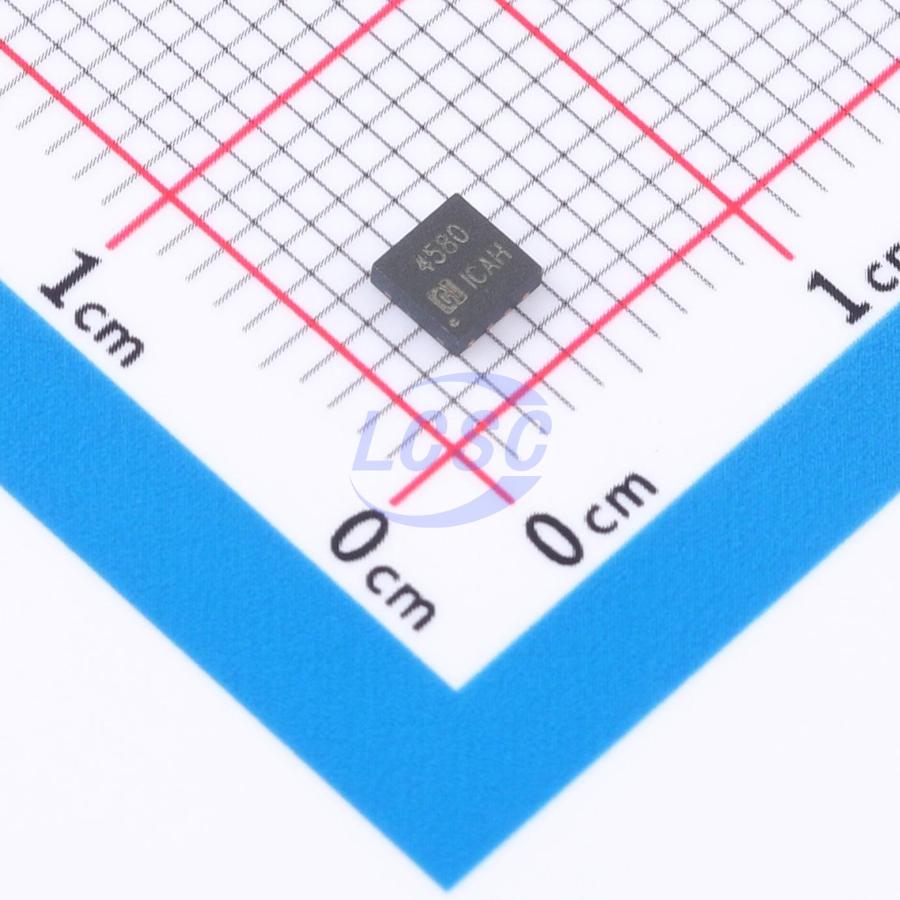

NJM4580DQ/TR
Standard (General Purpose) Amplifier 2 Circuit DFN-8-EP(3x3)
DFN-8-EP(3x3)RoHSActive
DUAL OPERATIONAL AMPLIFIER
- Manufacturer
- HGSEMI
- Manufacturer part #
- NJM4580DQ/TR
- Store part #
- C42441906
- Package / case
- DFN-8-EP(3x3)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,755 in stock
#C42441906
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.04 | ₹70.20 |
| 50+ | ₹11.11 | ₹555.50 |
| 150+ | ₹9.66 | ₹1,449.00 |
| 500+ | ₹8.56 | ₹4,280.00 |
| 2,000+ | ₹7.58 | ₹15,160.00 |
| 4,000+ | ₹7.14 | ₹28,560.00 |
5 × ₹14.04
₹70.20
excl. GST
₹82.84 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
NJM4580DQ/TR
₹70.20 for 5 + GST
Specifications
- Output Current
- 50mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 530uV
- Slew Rate
- 5V/us
- Input Offset Current(Ios)
- 5nA
- Operating Temperature
- -40℃~+85℃
- Ib - Input Bias Current
- 500nA
- Common Mode Rejection Ratio(CMRR)
- 110dB
- Gain Bandwidth Product
- 15MHz
- Quiescent Current
- 6mA
- Dual Supply
- -16V~-2V;2V~16V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.145 g
Overview
NJM4580 is the dual operational amplifier, specially designed for improving the tone control, which is most suitable for the audio application. Featuring noiseless, higher gain bandwidth, high output current and low distortion ratio, and it is most suitable not only for acoustic electronic part of audio pre-amp and active filter, but also for the industrial measurement tools. It is also suitable for the head phone amp at higher output current. And further more, it can be applied for the handy type set operational amplifier of general purpose in application of low voltage single supply type which is properly biased of the input low voltage source.
Key features
- Operating Voltage： ±2V~±16V
- Low Input Noise Voltage： 0.8μVrms Typ.
- Wide Gain Bandwidth Product : 15mhz Typ.
- Low Distortion : 0.0005% Typ.
- Slew Rate:5V/µA Typ.
- Package Outline DIP-8、SOP-8、DFN-8 and MSOP-8 . Bipolar Technology
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | RC4580DQ/TR#C42447797HGSEMI · DFN-8-EP(3x3) | HGSEMI | DFN-8-EP(3x3) | 1,885 | ₹14.43 · 1,885 in stock | View |
| JRC4580DQ/TR#C42441905HGSEMI · DFN-8-EP(3x3) | HGSEMI | DFN-8-EP(3x3) | 1,895 | ₹14.04 · 1,895 in stock | View | |
